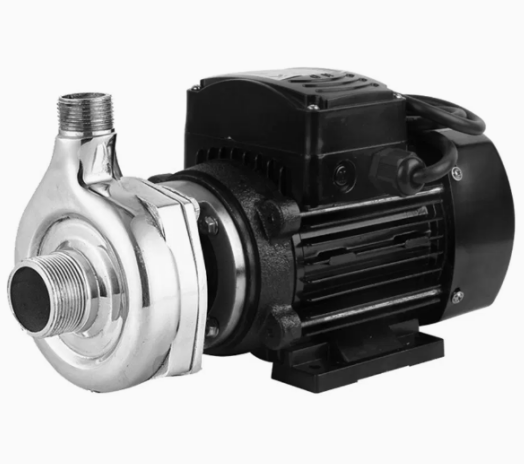

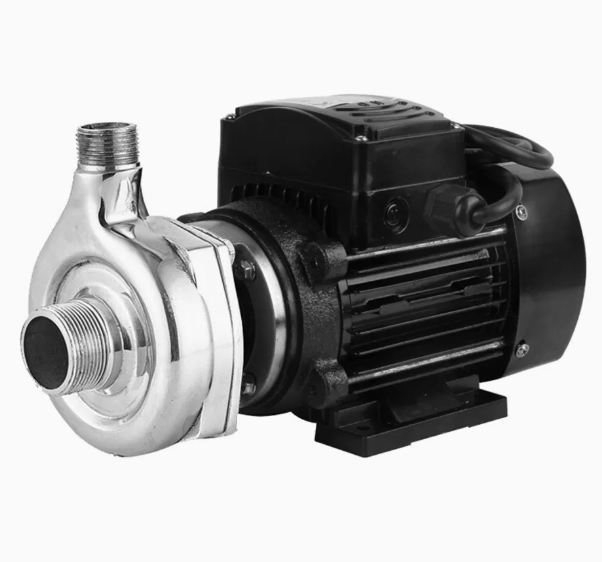

Stainless steel self priming centrifugal pump is optimized based on centrifugal pump working principle, equipped with exclusive gas-liquid mixing separation chamber to support dry start without pre-filling water or bottom valve installation. All fluid contact components are made of SS304 / SS316 / 316L stainless steel, featuring strong anti-corrosion performance to transport weak & strong acid, alkali, solvent, food liquid and wastewater containing tiny solid particles. With hydraulic optimized impeller design, it achieves high energy efficiency, low vibration and compact lightweight structure. Customizable explosion-proof motor, mechanical seal and caliber size make it a universal fluid transfer solution for chemical, food beverage, pharmaceutical, municipal environmental and agricultural irrigation global manufacturers.
一、Complete Technical Parameter Sheet
Item | Standard Technical Specification |
|---|---|
Product Name | Stainless Steel Self Priming Centrifugal Pump |
Main Material | SS304 / SS316 / SS316L Stainless Steel |
Caliber Size | 25mm ~ 300mm |
Flow Rate Range | 1 ~ 500 m³/h |
Pump Head | 10 ~ 80 m |
Motor Power | 0.75 KW ~ 55 KW |
Max Self-Priming Height | 4 ~ 6.5 m |
Applicable Medium Temperature | -20℃ ~ +110℃, Instant 140℃ sterilization allowed |
Medium PH Range | pH 1 ~ 14 |
Seal Configuration | Standard mechanical seal; Double face mechanical seal optional (Silicon Carbide / Carbon Graphite material) |
Allowed Solid Content | ≤15% mild slurry, particle size ≤60% of pipe diameter |
Working Noise | Less than 75dB |
Energy Efficiency | 55% ~ 68%, save 20%-30% power consumption |
Customization Support | Motor, seal, flange, explosion-proof, heating parts customized |
MOQ | 1 Piece |
二、5 Core Competitive Advantages
1.Outstanding Anti-Corrosion Performance：SS304/316L stainless steel flow channel withstand pH 1-14 corrosive media including acid, alkali, organic solvent. Service life far longer than ordinary cast iron pumps, suitable for harsh chemical working conditions.
2.Powerful Self-Priming Dry Start Function：Max self-priming height reaches 6.5 meters, fully finish suction within 30-90 seconds after startup. No bottom valve or vacuum auxiliary equipment required, simplify pipeline layout and reduce installation cost.
3.Ultra-Wide Medium Adaptability：Can transfer foamy gas-containing liquid, mild slurry with solid content ≤15%, liquid with tiny solid particles. Cover clean water, dairy, fruit juice, chemical solvent, acid alkali wastewater, oil-water mixture.
4.High Efficiency & Low Maintenance Cost：Hydraulic optimized impeller boosts efficiency to 55%-68%, cut power consumption by 20%-30%. Mechanical seal supports fast disassembly & replacement, detachable pump shell simplifies daily cleaning without pipeline removal.
5.Compact Safe & Stable Operation:30% lighter weight than traditional pumps, small footprint for limited installation space. Running noise <75dB with tiny vibration, explosion-proof motor option available for flammable chemical workshop.
If you are searching for durable, energy-saving stainless steel transfer pump with strong self-priming and anti-corrosion performance for chemical, food or wastewater production, our SS304/316L self priming centrifugal pump is your optimal choice. With complete model specifications, flexible customization and reliable after-sales service, our pumps have been exported to many countries for industrial fluid transfer projects. Please send us your working parameters including flow rate, head, medium type, temperature and pH value, our professional engineer team will offer free pump selection solution and factory direct quotation within 24 hours.
