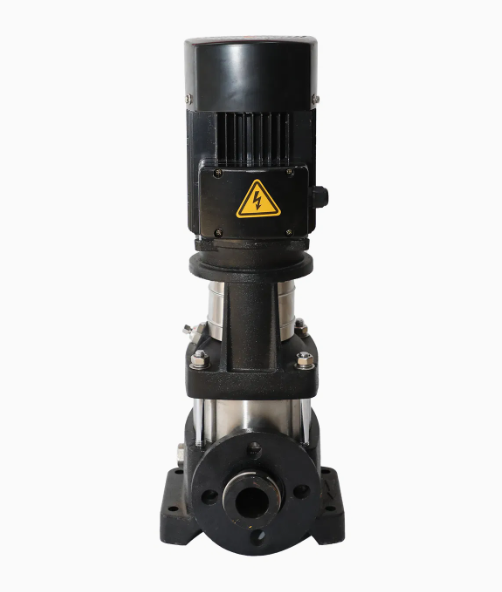

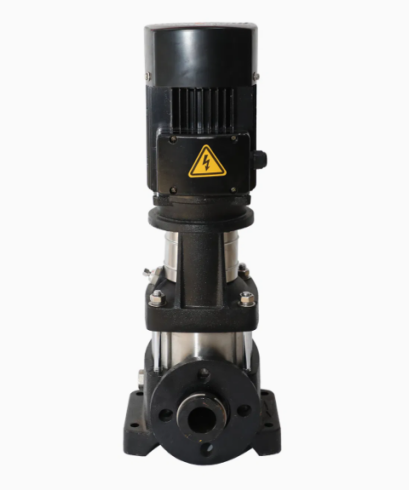

JUSH_CDL(F) series lightweight stainless steel vertical multi-stage centrifugal pump is a vertical non-self-priming pipeline booster pump developed by integrating domestic and international advanced hydraulic manufacturing technology, fully compatible to replace European imported CR and CRN series pumps. All liquid contact parts are stamped and welded with SS304/SS316/SS904 stainless steel plates, equipped with standard vertical copper core motor and quick-disassembly silicon carbide mechanical seal. Optimized hydraulic model greatly improves operation efficiency and service life, with compact vertical layout, low running noise and easy daily maintenance. This multistage pump covers wide performance parameters, and is widely recognized by global manufacturers for residential water supply, HVAC heating, fire protection, water treatment and light chemical production lines.
Item | Standard Technical Specification |
|---|---|
Model No. | JUSH_CDL(F) |
Pump Type | Vertical Non-self-priming Multistage Centrifugal Booster Pump |
Flow Channel Material | Cast Iron / SS304 / SS316L / SS904 Stainless Steel |
Mechanical Seal Material | Graphite / Silicon Carbide, Fluorine Rubber Auxiliary Ring |
Motor Power Range | 0.37KW ~ 110KW |
Max Flow Rate | 240 m³/h (1057 GPM) |
Max Pump Head | 80~110m Standard, CDL F2 model up to 232m |
Caliber Size | 25mm ~ 500mm |
Rotation Speed | 1450 r/min / 2980 r/min |
Support Voltage | 220V / 380V Customizable |
Medium Transportable | Clean thin liquid without solid particles, mild corrosive liquid |
MOQ | 1 Piece |
Warranty Period | 1 Year Whole Pump Warranty |
Customization Service | Motor power, voltage, flange, seal material customizable |
HS Code | 8413709990 |
Monthly Production Capacity | 5000 PCS |
Delivery Time | 3-7 Working Days |
1.High Efficiency & Obvious Energy Saving:Advanced optimized hydraulic model reduces internal hydraulic loss, high operation efficiency, effectively cut long-term industrial water supply power consumption cost.
2.Compact Lightweight & Low Noise：Vertical integrated structure, small footprint, lighter weight than traditional cast iron multistage pumps; stable running with low vibration, noise controlled at low level, suitable for indoor equipment room installation.
3.Easy Installation & Simple Maintenance：Straight-through pipeline connection design for fast installation; quick-disassembly mechanical seal and split pump body, no professional tools needed for daily cleaning and parts replacement.
4.Wide Medium Compatibility：Can transport clean thin non-flammable liquid without solid particles, including mineral water, softened water, pure water, clear oil and other mild corrosive light chemical media.
5.Stable & Long Service Life：High precision manufacturing process, wear-resistant silicon carbide mechanical seal, dynamic balance impeller, greatly extend pump service life and reduce failure frequency.
6.Flexible Customization & Complete After-sales：Support personalized customization of power, voltage, flange standard and sealing material; 24-hour online technical guidance and remote fault diagnosis after delivery.
If you are looking for cost-effective high-lift vertical booster pump to replace expensive imported CR/CRN pumps for water supply, HVAC, fire fighting and water treatment projects, our JUSH_CDL(F) stainless steel vertical multistage centrifugal pump is your optimal choice. With complete model specifications, stable energy-saving performance, corrosion-resistant stainless steel flow channel and full after-sales guarantee, our pumps have been exported to dozens of countries for industrial and construction fluid pressurization projects. Please send us your working condition parameters including required flow rate, pump head, medium type and voltage standard, our professional engineer team will provide free pump selection scheme and factory direct quotation within 24 hours.
