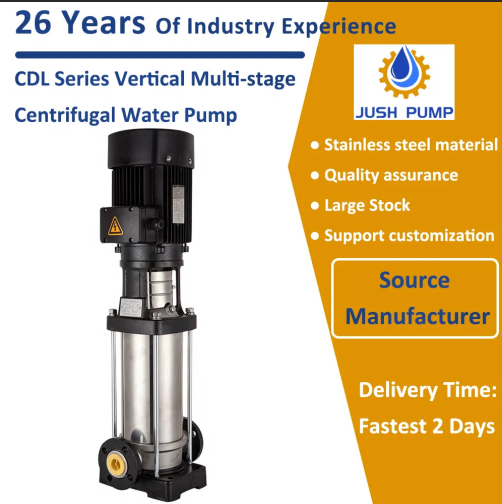

CDL/CDLF vertical multistage centrifugal pump is a stainless steel pipeline booster pump adopting mature global hydraulic technology. Equipped with quick-replace cartridge mechanical seal and standard vertical all-copper motor, it features energy efficiency, compact size and wide medium compatibility. Available in SS304/316/904 materials, it handles clean water and mild corrosive liquid, ideal for constant pressure water supply, HVAC, fire control and industrial circulation systems.
Excellent hydraulic design boosts efficiency and extends service life;
Alloy-silicon carbide mechanical seal with fluororubber ring for high temperature stable operation;
All-copper core motor with silicon steel sheets, low temperature rise and strong power;
Compact vertical structure, light weight, low noise and easy maintenance;
Inlet & outlet on same horizontal line, direct pipeline installation;
High lift & large flow range, supports customized power and materials.
Main components include wind hood, all-copper motor, motor junction box, protective board, air release valve, stainless steel outer cylinder, tie rods, flange and thickened base.
Quick-disassembly cartridge mechanical seal enables fast on-site replacement without pump disassembly. Full stainless steel flow passage resists mild corrosion, standard motor design allows flexible power matching.
Material: Cast iron / SS304 / SS316 / SS904
Power Range: 0.37KW ~ 110KW
Max Flow: 240m³/h; Max Head: 232m
Temperature Range: -15℃ ~ 180℃
Voltage: 220V/380V, 50/60Hz
Connection: Flange / Thread
Warranty: 1 year, customized for high altitude working environment
High-rise buildings, community schools, villas, hotels, bath centers, solar water supply systems.
HVAC circulation, heating systems, fire fighting equipment, irrigation, pure water/mineral water treatment, light chemical mild corrosive liquid transportation.
Clean, particle-free non-flammable liquid: pure water, softened water, mineral water, light oil and weak corrosive solvent.
Customizable motor power, pump material, connection size and high-altitude configuration; 1pc low MOQ with sample support; online remote after-sales guidance, 24-hour technical service and complete spare parts supply.
