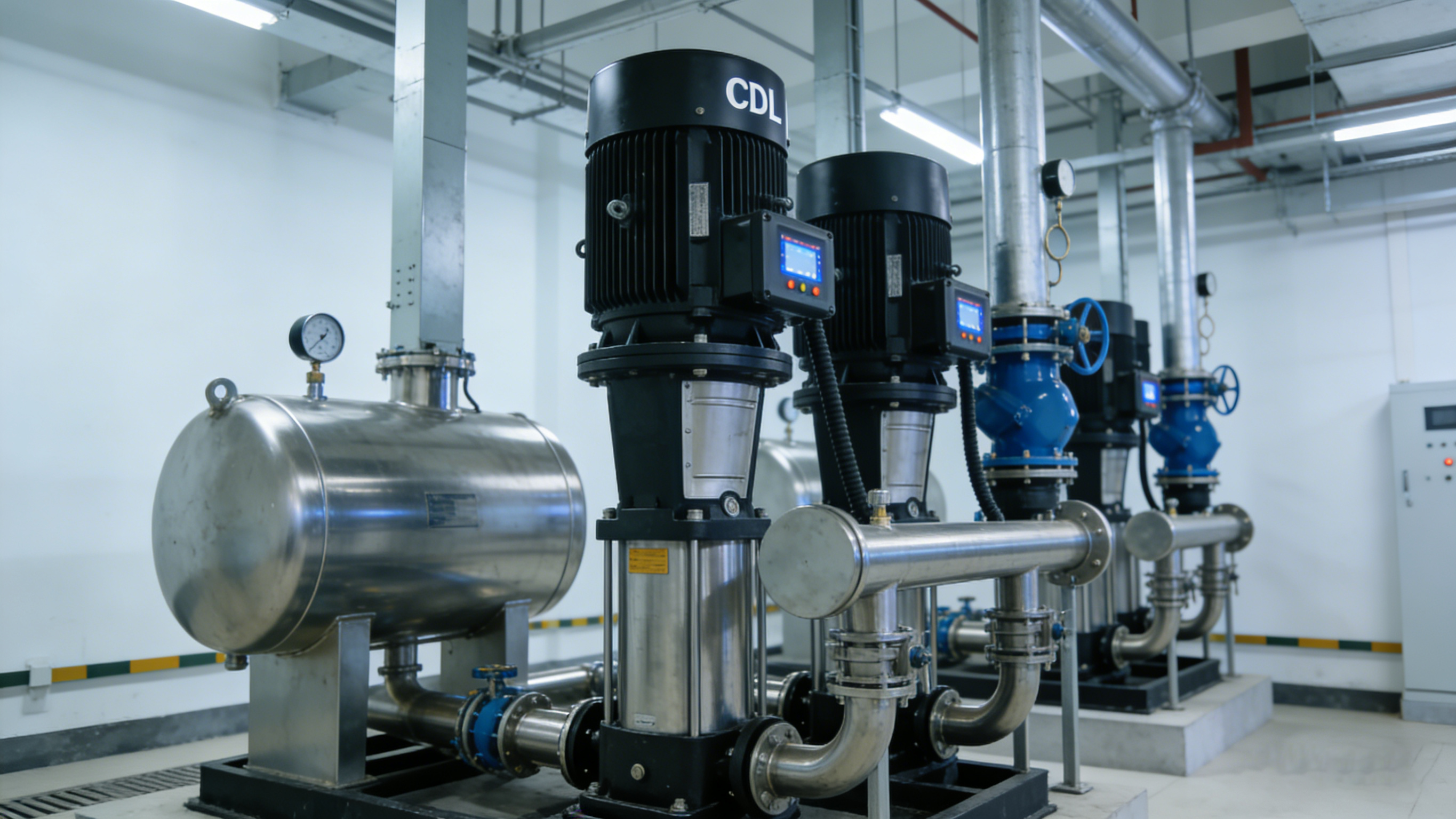

In numerous fields such as industrial production, building water supply, and water treatment, CDL/CDLF vertical multistage centrifugal pumps have become core equipment in fluid transport systems due to their compact structure, high efficiency and energy saving, and stable operation. However, improper selection can not only lead to low equipment operating efficiency and soaring energy consumption, but also cause frequent failures, shorten equipment lifespan, and increase subsequent maintenance costs. This article will provide a comprehensive and practical CDL/CDLF vertical multistage centrifugal pump selection guide from three dimensions: interpretation of core parameters, analysis of suitable scenarios, and avoidance of common selection pitfalls, to help you accurately match your needs and maximize equipment performance.
I. Core Parameter Interpretation:
The Basic Prerequisite for Selection The core of selection is matching equipment parameters with actual operating conditions. The key parameters of CDL/CDLF vertical multistage centrifugal pumps mainly include flow rate, head, medium characteristics, speed, and net positive suction head (NPSH). Each parameter directly determines whether the equipment can operate normally.
1. Flow Rate: A Core Indicator for Meeting Conveying Needs
Flow rate refers to the volume of fluid a pump can deliver per unit time (unit: m³/h). When selecting a pump, the maximum flow rate under actual operating conditions should be used as a benchmark, while allowing a 10%-15% margin to avoid insufficient flow due to fluctuations in operating conditions. It is important to note that CDL/CDLF series pumps have fixed flow rate ranges; different models correspond to different flow rate intervals. For example, small CDL pumps can have flow rates as low as 1 m³/h, while large equipment can reach hundreds of m³/h. Precise matching based on the actual needs of the conveying system is crucial; selecting a pump with an excessively high flow rate will lead to energy waste, while selecting one with an insufficient flow rate will fail to meet production requirements.
2. Head: A Key Indicator for Overcoming Resistance
Head refers to the height (in meters) a pump can lift fluid. Essentially, it represents the pump's ability to perform work on the fluid, covering friction loss, local resistance along the transport path, and the required static lift. When selecting a pump, the total head must be calculated hydraulically. The formula is: Total Head = Static Head (height difference between the starting and ending points) + Friction Loss + Local Resistance Loss (such as resistance from valves, elbows, filters, etc.). A 10%-20% head margin should be allowed, as resistance losses may increase due to pipeline aging, changes in medium viscosity, etc. Insufficient head will prevent the pump from delivering fluid to the designated location, and may even lead to dry running or overload.
3. Media Characteristics: Determining Pump Material and Structure Selection
Media characteristics are an often overlooked but crucial factor in pump selection, directly impacting the choice of pump material and sealing method. CDL series pumps are mostly made of cast iron, suitable for conveying clean fluids such as pure water and softened water, which are non-corrosive and free of impurities. CDLF series pumps use stainless steel (commonly 304 and 316), possessing excellent corrosion resistance, suitable for conveying mildly corrosive fluids (such as weak acid and alkali solutions), food-grade fluids (such as drinking water and fruit juice), and fluids containing small amounts of impurities (requiring a filter). Furthermore, media temperature must be considered: standard models can be used for ambient temperature media (0-80℃), while high-temperature media (80-150℃) require high-temperature resistant seals and bearings. If the media contains particulate impurities, wear-resistant impellers must be selected, and the flow area increased to prevent impeller wear and clogging.
4. Other Key Parameters
Regarding speed, the standard speed of the CDL/CDLF pump is 2900 r/min (compatible with a 380V three-phase asynchronous motor). Some models offer a low-speed version at 1450 r/min, which results in lower noise and less wear, making it suitable for applications with strict noise requirements (such as building water supply and hospitals). The Net Positive Suction Head (NPSH) is related to the pump's resistance to cavitation. When selecting a pump, it is necessary to ensure that the effective NPSH of the actual installation is greater than the pump's required NPSH to avoid cavitation within the pump, which can lead to impeller corrosion, increased vibration, and decreased flow rate.
II. Scenario-based Adaptation: Key Selection Points for Different Fields
CDL/CDLF vertical multistage centrifugal pumps have a wide range of applications, and the operating conditions in different scenarios vary greatly. Targeted selection is necessary to ensure equipment adaptability and stability.
1. Building Water Supply Scenarios (Residential, Commercial, Office Buildings)
The core requirements for this scenario are constant pressure water supply, low noise, and stable operation. Flow rate and head must be compatible with building height and number of residents. Selection Guidelines: Prioritize CDL series clean water pumps (for delivering clean tap water). If it's a secondary water supply with strict water quality requirements, CDLF stainless steel pumps can be used. Use variable frequency control models to achieve automatic flow and pressure adjustment, avoiding frequent start-stop cycles and reducing energy consumption. The head must cover the height of the highest water supply point in the building + pipeline resistance + terminal water supply pressure (typically 0.2-0.4 MPa). Flow rate should be calculated based on the total water consumption during peak usage periods, with a 15% margin to meet the simultaneous water demand of residents.
2. Industrial Production Scenarios (Chemical, Electronics, Pharmaceutical)
Industrial scenarios involve complex operating conditions with significant differences in media characteristics, temperature, and pressure, placing high demands on pump reliability and corrosion resistance. Selection Guidelines: In the chemical industry, for conveying corrosive media such as weak acids, alkalis, and solvents, CDLF 316 stainless steel pumps are preferred, with mechanical seals to prevent leakage. In the electronics and pharmaceutical industries, which require conveying high-purity fluids, CDLF food-grade stainless steel pumps are selected to ensure no material leaching, easy cleaning, and compliance with industry hygiene standards. For high-temperature conditions (such as feeding into chemical reactors), high-temperature resistant CDLF pumps are required, equipped with graphite seals and high-temperature bearings, with appropriate heat dissipation design.
3. Water Treatment Scenarios (Wastewater Treatment, Water Purification Equipment, Seawater Desalination)
Water treatment media often contain small amounts of impurities, salt, or are slightly corrosive, requiring a balance between corrosion resistance and anti-clogging capabilities. Selection Considerations: For wastewater treatment and subsequent clean water reuse, CDL pumps can be used. For pretreatment (containing small amounts of suspended solids), CDLF stainless steel pumps, equipped with self-priming devices and filters, are necessary to prevent impurities from entering the pump body. In water purification equipment and seawater desalination, due to the high salt content of the media, CDLF 316L stainless steel pumps are selected to enhance corrosion resistance. Large-scale water treatment projects require multiple pumps to operate in parallel according to flow requirements, improving system stability and facilitating maintenance.
4. Agriculture and Irrigation Scenarios (Farmland Irrigation, Garden Water Supply)
This scenario demands high cost-effectiveness from pumps. The media are mostly clean fluids such as river water and well water, and some scenarios require mobile operation. Selection Guidelines: Prioritize CDL series cast iron pumps, as they are more cost-effective and durable. The head should be calculated based on the highest altitude of the irrigated area and the pipeline length; the flow rate should be determined according to the irrigation quota and irrigated area. For mobile irrigation, small portable CDL pumps can be selected, with flexible pipeline connection methods to adapt to the needs of different irrigation areas.
III. Common Selection Misconceptions: Avoiding These Pitfalls
In the actual selection process, many users fall into selection pitfalls due to a lack of thorough understanding of parameters and operating conditions, leading to equipment malfunctions. Below are five common misconceptions and methods to avoid them:
Myth 1: Focusing solely on flow rate and head, ignoring media characteristics.
Some users match pump models based solely on flow rate and head, neglecting factors such as media corrosivity, impurity content, and temperature, leading to incompatible pump materials. For example, using a CDL cast iron pump to transport weak acid or alkali media will result in pump corrosion and leakage within a short period; using a conventional pump to transport media containing particles will easily cause impeller wear and pipeline blockage. Solution: Thoroughly analyze media characteristics, clearly defining the media composition, concentration, temperature, and impurity content, and then select the appropriate CDL or CDLF series pump, along with suitable materials and sealing methods.
Myth 2: The higher the head and flow rate, the better.
Believing that "using a large pump for a small load" will improve stability, some pumps blindly choose models with high flow rates and high heads, causing them to operate under low load conditions for extended periods. This not only wastes energy but also increases pump vibration and noise, accelerates impeller wear, and shortens equipment lifespan. Solution: Determine actual needs through precise calculations, allowing for reasonable margins. There's no need to excessively increase parameters. If necessary, a variable frequency pump can be used to achieve dynamic load adjustment.
Myth 3: Ignoring Net Positive Suction Head (NPSH) Leads to Cavitation Failures
Failure to calculate the NPSH of the system during selection, focusing only on the pump's required NPSH, can lead to cavitation during pump operation due to insufficient suction conditions. This manifests as decreased flow rate, increased vibration and noise, and impeller pitting. Solution: Optimize the suction pipeline design, shorten the suction pipeline length, reduce local resistance, and ensure that the effective NPSH of the system is greater than the pump's required NPSH. If suction conditions are poor, a low NPSH model can be selected or a booster pump can be installed.
Myth 4: Matching Pump Parameters Only While Ignoring the Piping System
Some users focus solely on the pump's parameters, neglecting to consider the diameter, length, and component configuration of the existing piping system during selection. This leads to pump-pipeline mismatch, resulting in excessive resistance loss and insufficient flow. For example, if the pump's outlet pipe diameter is smaller than the pipe diameter, it will increase local resistance and reduce actual delivery efficiency. Solution: Before selecting a pump, analyze the piping system parameters, calculate resistance loss based on pipe diameter, length, and number of valves, and then match the appropriate pump head to ensure coordinated operation between the pump and the piping system.
Myth 5: Ignoring Brand and After-Sales Service, Blindly Pursuing Low Prices
The quality of the core components (impeller, bearings, seals) of CDL/CDLF pumps directly affects operational stability. While some low-priced, inferior products may have low initial costs, their substandard materials and insufficient machining precision make them prone to failure, and they lack after-sales support, resulting in extremely high maintenance costs later on. Solution: Choose reputable, technologically mature brand products to ensure the quality of core components; simultaneously, pay attention to after-sales service, including installation guidance, troubleshooting, and spare parts supply, to reduce risks in later use.
IV. Selection Summary: Three-Step Accurate Selection
In summary, the selection of CDL/CDLF vertical multistage centrifugal pumps can follow a three-step principle to ensure accurate selection: First, identify core requirements, clarify key parameters such as flow rate, head, media characteristics, and operating temperature, and perform hydraulic calculations and allowances for margins. Second, match the CDL or CDLF series pump to the application scenario, determining the material, sealing method, and control type (conventional/variable frequency). Third, avoid selection pitfalls, verify the compatibility of pump parameters with the piping system, and choose a reliable brand and after-sales service.
Selection is a prerequisite for stable operation and energy efficiency of pump equipment. If you have questions about operating parameters or key selection points, it is recommended to consult professional technicians to develop a customized selection plan based on the actual scenario, allowing the CDL/CDLF vertical multistage centrifugal pump to fully perform and safeguard production and daily life.
