CHL SS304 SS316 Horizontal Multistage Booster Pump, Integrated Pressure Tank Variable Frequency Water Pressure Boost Pump

JUSH-CHL lightweight horizontal multistage non-self-priming centrifugal pump is equipped with long-shaft standard electric motor, available in subsection type and cylinder type two structural forms. The pump features axial inlet and radial outlet layout, all wetted parts are manufactured from SS304 or SS316 stainless steel, effectively avoiding medium contamination and resisting mild corrosion.

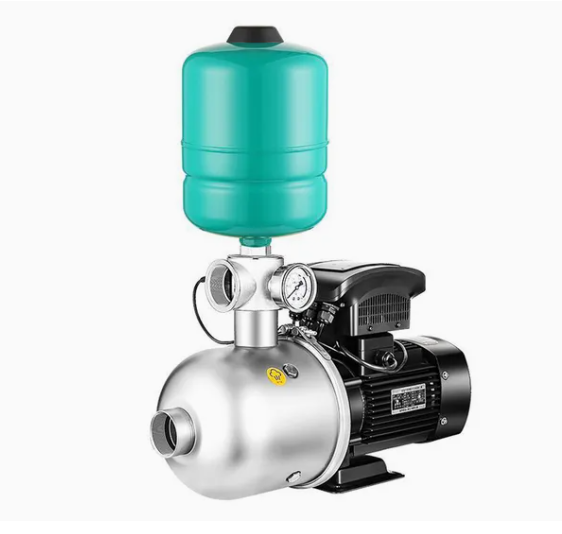

This horizontal pipeline booster pump can be matched with pressure tank, pressure gauge and VFD control system to form an integrated constant pressure water supply unit, realizing fully automatic unattended operation. It is applicable for conveying clean water, hot water, weakly corrosive low-viscosity industrial liquid without solid particles, perfectly replacing imported horizontal multistage pumps for civil and industrial pressurization projects.

Core Product Advantages & Structural Features

1. Full Stainless Steel Flow Parts, Hygienic & Corrosion Resistant

   Impeller and all flow passage components adopt SS304/SS316 stainless steel stamping forming, no secondary pollution to water quality, stable delivery of purified water, softened water and weak acid & alkali media. CHLF segmented pump body and cast iron discharge flange optional for different working conditions.

2. Compact Horizontal Layout, Simple Pipeline Installation

   Axial inlet and radial outlet design directly matches standard pipeline layout, small footprint, no complex foundation construction required, fast on-site pipeline docking and installation.

3. Low Vibration & Low Noise, Stable Continuous Operation

   Optimized hydraulic flow channel design, matched high-efficiency long-shaft motor, low running vibration and noise, suitable for long-term uninterrupted circulation working conditions.

4. Wide Temperature & Parameter Adaptation Range

   Standard medium temperature range covers -15℃~110℃, meets cold water supply and hot water circulation working conditions; wide flow & head coverage, flexible power selection from 1.1kW to 37kW.

5. Modular Matching, Supports Automatic Constant Pressure Upgrade

   Can be freely combined with pressure tank, pressure gauge and variable frequency controller to realize automatic pressure regulation, no manual on-duty needed, stable pipeline water pressure for high-rise buildings and commercial complexes.

6. Leak-Free Mechanical Seal Design, Low Maintenance Cost

   Reliable mechanical sealing structure ensures long-term leak-free operation; modular disassembly design reduces later spare parts replacement and maintenance workload.Detailed Application Scenarios

   Detailed Application Scenarios

   ✅ Municipal & Domestic Water Supply

   Water plant raw water filtration & transportation, municipal pipe network zoning water supply, main pipeline pressure boosting, high-rise residential secondary water supply, hotel & apartment constant pressure water supply.

   ✅ HVAC & Cooling System

   Central air conditioning chilled water circulation, hot water heating system circulation, equipment cooling water circulating delivery.

   ✅ Industrial Production Supporting

   Factory process water circulation, industrial cleaning system water supply, boiler feed water & condensation system delivery, machine tool auxiliary water supply.

   ✅ Water Treatment & Environmental Protection

   Water purification equipment supporting pump, swimming pool water circulation, steam system separator water delivery, environmental water circulation engineering.

   ✅ Agriculture & Aquaculture

   Farmland irrigation water pressurization, aquaculture pond water circulation & oxygen supply, fertilizer dosing system medium transportation.

   ✅ Special Medium Conveying

   Weak acid and weak alkali low-viscosity liquid delivery, light chemical clean medium circulation transportation.

   Factory Supply & After-Sales Service

   1. Fast delivery: Standard models delivered within 3-7 working days, customized specifications delivery schedule arranged according to order quantity and technical requirements;

   2. Standard export carton packaging with internal shockproof protection, suitable for long-distance sea & land cross-border transportation;

   3. Full customization service: material grade, power, head, flow rate, voltage, VFD control assembly and installation accessories can be tailor-made to actual on-site pipeline conditions;

   4. One-stop technical support: supply complete installation drawings, operation manuals, remote commissioning guidance and global after-sales fault troubleshooting;

   5. Low MOQ support: 1 piece sample order acceptable, convenient for overseas buyers to conduct on-site testing and small batch trial procurement.
