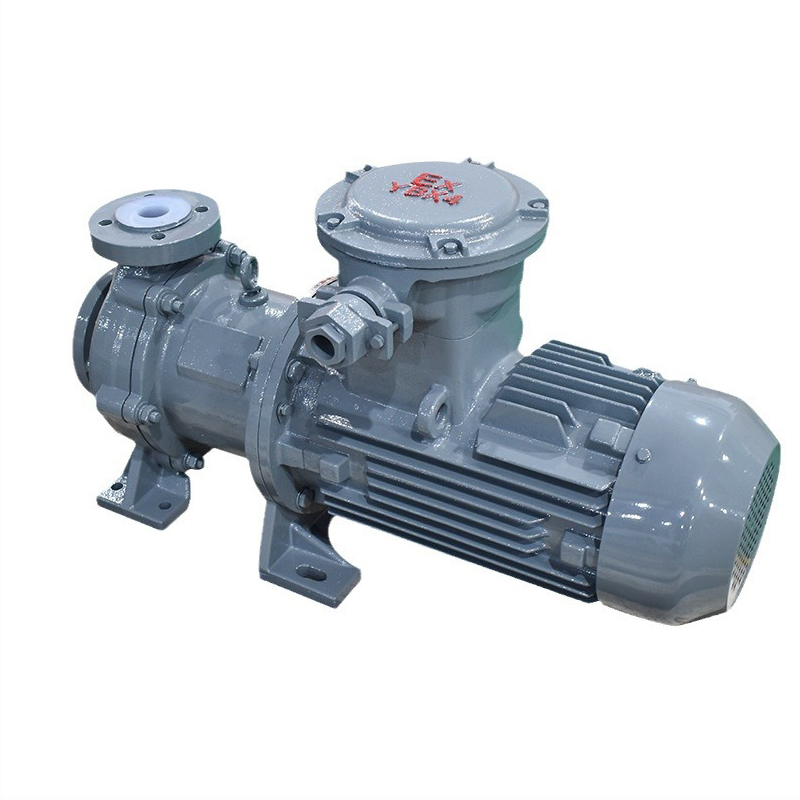

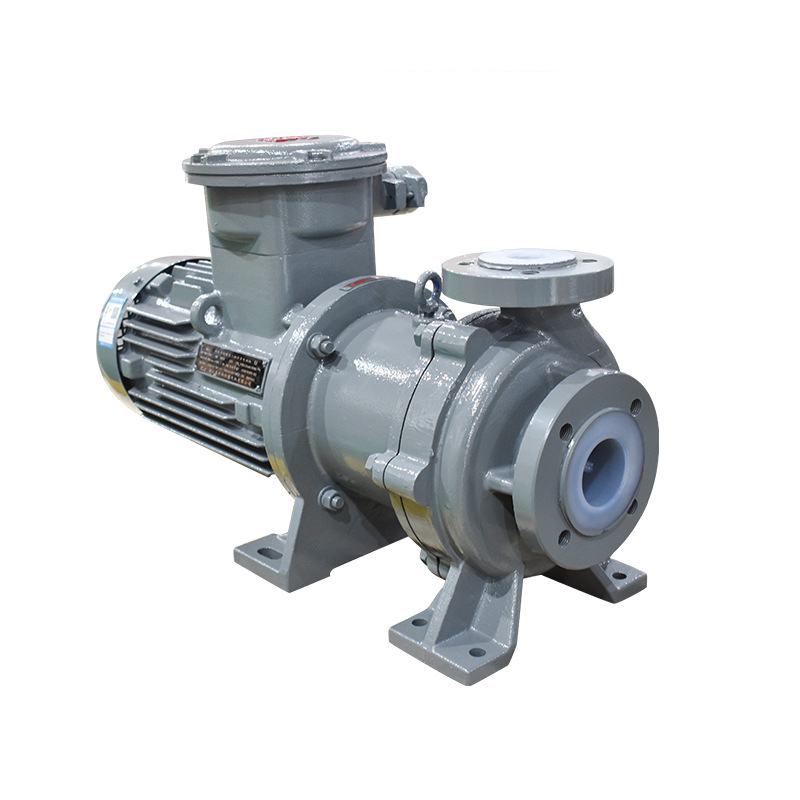

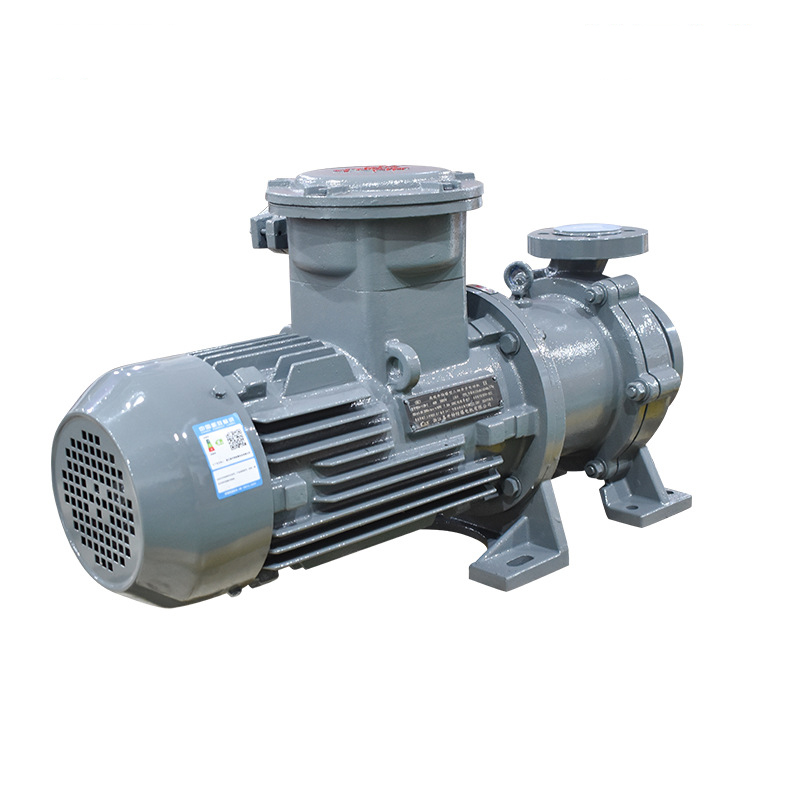

CQB-F fluoroplastic magnetic pump is a leak-free magnetic drive pump made of fluoroplastic material, specially designed for conveying highly corrosive media. Due to the excellent corrosion resistance of fluoroplastics, CQB-F magnetic pump can effectively meet the conveying needs of various acidic and alkaline liquids and organic solvents, and is widely used in chemical, pharmaceutical, environmental protection and other industries.
1. Material and structure
Pump body material: The main flow-through parts (such as pump body, impeller, back cover) are made of **fluoroplastic (PTFE, FEP, etc.)**, which has extremely strong corrosion resistance and is suitable for conveying almost all corrosive media.
Magnetic transmission system: The impeller is driven to rotate through the magnetic coupling of internal and external magnetic steels, without the need for mechanical shaft seals, thus avoiding leakage problems caused by aging or wear of seals, and achieving complete leakage-free.
Isolation sleeve: Reinforced fluoroplastics or carbon fiber reinforced polypropylene (CFR-PP) are usually used to ensure corrosion resistance and mechanical strength.
2. Working principle
Magnetic coupling drive: CQB-F fluoroplastic magnetic pump transmits power from the motor through the outer magnetic rotor to the inner magnetic rotor through magnetic coupling transmission, driving the impeller in the pump to rotate, thereby realizing contactless transmission of the liquid and eliminating the risk of leakage caused by mechanical seals.
Centrifugal principle: Relying on the high-speed rotation of the impeller, the liquid obtains centrifugal force in the pump chamber and is discharged.
3. Product features
Excellent corrosion resistance: Fluoroplastic has strong tolerance to a variety of corrosive media, such as concentrated acid (sulfuric acid, hydrochloric acid, nitric acid), concentrated alkali, strong oxidants, organic solvents, etc., and can be used for a long time in complex working conditions.
Leak-free design: The magnetic transmission method is adopted, and the traditional mechanical seals are cancelled, which effectively avoids the risk of liquid leakage. It is particularly suitable for conveying toxic, flammable and explosive or high-purity media.
Compact structure: The pump is relatively compact in design, occupies little space, and is easy to maintain.
Efficient and energy-saving: Through the optimization of hydraulic design, the pump has high efficiency and low operating energy consumption, which reduces the cost of long-term use.
4. Application fields
Chemical industry: widely used to transport corrosive liquids such as strong acids, strong alkalis, solvents, organic compounds, etc., suitable for the transportation of various chemical media, such as pickling process, chemical reaction, fine chemicals, etc.
Pharmaceutical industry: used to transport high-purity or highly corrosive liquids required in the pharmaceutical production process, such as acid and alkali solutions, drug solvents, etc.
Environmental protection industry: used to treat corrosive wastewater, waste liquid, etc. in environmental protection projects, suitable for industrial wastewater treatment, chemical waste liquid treatment and other scenarios.
Electroplating industry: suitable for the circulation of acidic or alkaline solutions in electroplating production.
Metallurgical industry: transport pickling liquid, wastewater treatment liquid, etc. in metallurgical processes.
5. Performance parameters
Flow range: usually between 1.6 m³/h ~ 400 m³/h, depending on the model.
Lift range: 6 meters ~ 50 meters.
Working temperature: -20℃ ~ 100℃, fluoroplastics have good temperature resistance.
Working pressure: Generally within 1.6 MPa, suitable for low and medium pressure conditions.
Applicable media: various highly corrosive media, including acids, alkalis, salts, solvents, etc.
6. Product advantages
Long service life: Fluoroplastic materials have good corrosion resistance and anti-aging properties, and can work stably for a long time under harsh working conditions.
Low maintenance cost: Due to the design without mechanical seals, the replacement frequency of seals is reduced, maintenance is convenient, and long-term maintenance costs are reduced.
Safe and reliable operation: The leak-free design is particularly suitable for conveying hazardous chemicals, which can greatly improve the safety of the production process and protect the safety of operators and equipment.
Diverse choices: According to different working conditions and media requirements, CQB-F magnetic pumps provide different specifications and models to meet a variety of industrial needs.
CQB-F fluoroplastic magnetic pumps are ideal for conveying corrosive liquids with their excellent corrosion resistance and leak-free design. They are especially suitable for conveying corrosive liquids and hazardous chemicals in the fields of chemical, environmental protection, and pharmaceuticals. Its compact structure and reliable performance make the pump perform well under various complex working conditions.
