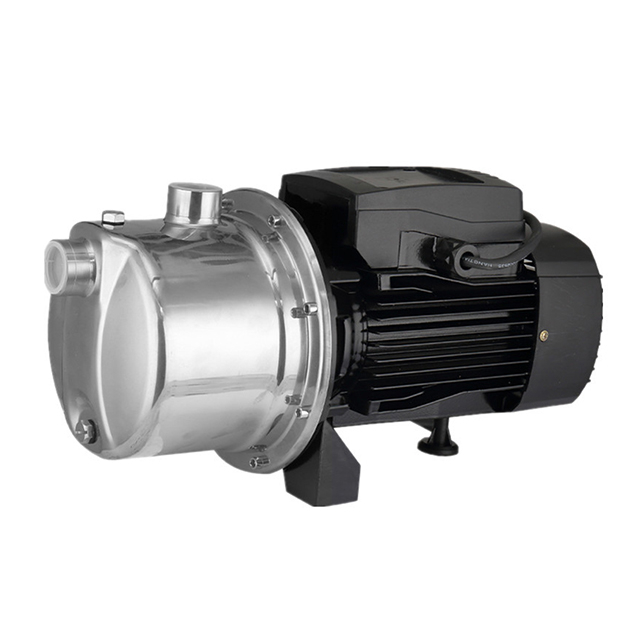

DP Series Jet Pump is specially designed for deep well applications where water needs to be lifted from depths greater than what a standard centrifugal pump can achieve. It combines a centrifugal pump (above ground) with an external ejector (installed inside the well), making it ideal for drawing water from deep wells up to 50 meters.
These pumps are widely used in residential water supply, rural water systems, garden irrigation, and industrial water transfer where deep well conditions exist.
The DP Jet Pump uses the venturi effect through an ejector/jet assembly submerged in the well. The above-ground pump sends high-speed water down to the ejector nozzle, creating a vacuum that lifts water from the deep source back up through the return pipe.
This allows the pump to draw water from depths beyond 30 meters, which traditional self-priming pumps cannot reach.
Key Features
✅ Suitable for deep wells up to 50 meters
✅ Stainless steel shaft & brass impeller for durability
✅ Built-in ejector kit for deep suction
✅ Self-priming and efficient operation
✅ Quiet and smooth performance
✅ Ideal for continuous or intermittent use
✅ Optional thermal protection and pressure switch
Technical Specifications
Model | Power (kW/HP) | Max Head (m) | Max Flow (L/min) | Suction Depth (m) | |
DP-370 | 0.37 / 0.5 | 40 | 35 | 25–40 | 1" × 1" |
DP-550 | 0.55 / 0.75 | 48 | 45 | 25–45 | 1" × 1" |
DP-750 | 0.75 / 1.0 | 50 | 55 | 30–50 | 1" × 1" |
Note: Actual suction depth depends on the jet kit and pipe installation.
Applications
Deep well household water supply
Rural and farm irrigation systems
Garden sprinkler and landscape watering
Industrial deep water extraction
Multi-story building water boosting
Water tower or tank filling from deep source
Material Options
Pump Body: Cast iron or stainless steel
Impeller: Brass / Noryl / Stainless Steel
Shaft: Stainless Steel 304
Ejector: Brass or engineering plastic
