For industrial liquid transfer applications involving high-viscosity oils, corrosive chemicals, or flammable fuels, choosing a pump that balances durability, efficiency, and safety is critical. The KCB stainless steel gear pump is engineered to meet these demands, offering robust, self-priming performance for diesel, crude oil, acids, and other challenging media. Its corrosion-resistant construction, high-pressure design, and customizable features make it a versatile solution for petrochemical, food, pharmaceutical, and biofuel industries worldwide.
Attribute | Details |
|---|---|
Product Name | KCB Stainless Steel Gear Oil Pump |
Model | KCB Series |
Material | SS304 / SS316 Stainless Steel |
Structure | Single-Stage Gear Pump |
Type | Self-Priming Positive Displacement Gear Pump |
Flow Rate | 1.1 – 230 m³/h (1057 GPM Max) |
Head Range | 20 – 150 m |
Pressure Rating | Ultra High Pressure |
Voltage | 220V / 380V / 440V (110-480V Customizable) |
Motor Power | 1.5 kW – 110 kW |
Speed | 1450 RPM / 2900 RPM |
Outlet Size | DN15 – DN600 |
Suitable Media | Non-solid particulate liquids: diesel, crude oil, biofuel, edible oil, corrosive acids/alkalis, industrial lubricants |
Key Features | Corrosion-resistant, self-priming, high efficiency, low pulsation, compact design, easy maintenance |
Application Industries | Petrochemical, biofuel, food & beverage, pharmaceutical, metallurgy, industrial lubrication |
Customization Services | OEM, ODM, OBM, software re-engineering |
Warranty | 3 Years |
Place of Origin | Shanghai, China |
Certification/Compliance | Industrial safety standards, IP-rated motor optional |
Connection Type | Flanged / Threaded (Customizable) |
Crafted from high-quality SS304/SS316 stainless steel, the KCB gear pump is built to withstand corrosive liquids, acids, and mild chemical media, outperforming traditional cast iron pumps in longevity and chemical compatibility. The stainless steel construction prevents rust and degradation, ensuring reliable operation even with harsh fluids, while extending the pump’s service life in demanding environments.
Designed for high-efficiency liquid transfer, this gear pump delivers pressures up to ultra-high levels with excellent self-priming capabilities, eliminating the need for manual priming. It handles viscosities ranging from light oils to thick crude oil and biofuels, with flow rates from 1.1 to 230 m³/h and heads up to 150 meters. The precision gear design ensures smooth, pulsation-free flow, protecting shear-sensitive fluids and maintaining consistent performance.
The KCB stainless steel gear pump is widely used in petrochemical, food processing, pharmaceutical, metallurgy, and biofuel industries. It efficiently transfers diesel, crude oil, lubricants, edible oils, and corrosive chemicals, making it suitable for industrial lubrication systems, fuel transfer lines, chemical processing plants, and food/beverage production. Its compatibility with a wide range of media ensures adaptability to diverse operational needs.

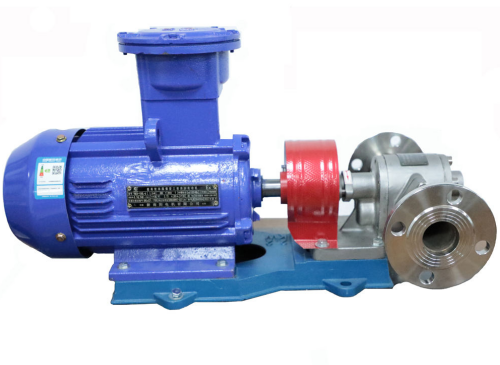

With a simple, compact structure, the pump is lightweight and easy to install, requiring minimal maintenance. The gear-driven mechanism is designed for low wear, reducing the need for frequent repairs, while the explosion-proof motor (available as an option) enhances safety for flammable liquid applications. Standard components and easy access to parts further simplify maintenance, minimizing downtime in industrial operations.
The KCB gear pump offers extensive customization options, including power ranges from 1.5kW to 110kW, voltage compatibility (220V/380V/440V), and outlet sizes from DN15 to DN600. It supports OEM/ODM modifications for specific flow rates, pressures, and connection types (flanged/threaded), ensuring compatibility with regional standards and unique project requirements. Backed by a 3-year warranty, it provides reliable performance tailored to your industrial needs.
