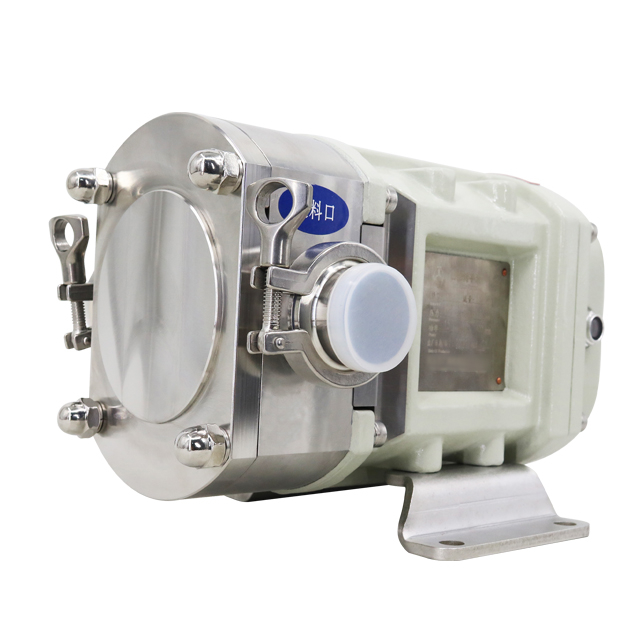

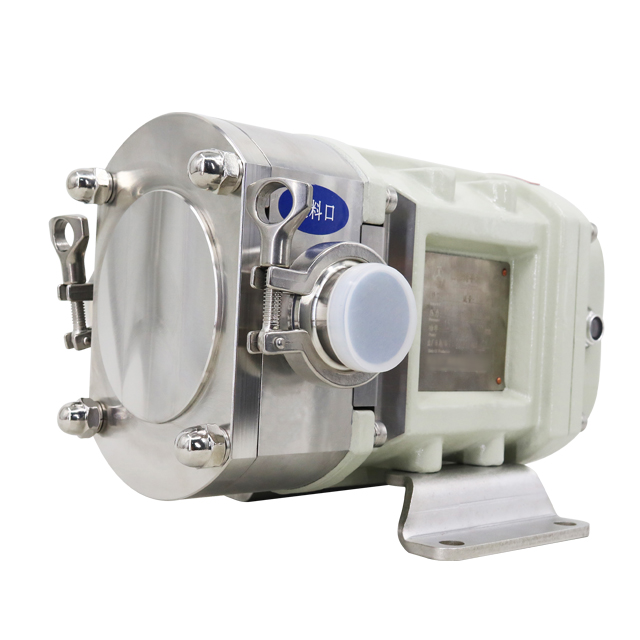

1. Overview: What is a Food-Grade Rotary Lobe Pump?
A Food-Grade Stainless Steel Rotary Lobe Pump is a positive displacement pump engineered for the stringent hygiene, safety, and reliability standards of industries like food & beverage, pharmaceutical, and cosmetics.
Its core components, including the pump body and all wetted parts, are constructed from food-grade stainless steel (AISI 304 or 316L). It features sanitary polished surfaces and a design optimized for easy cleaning and sterilization, often without disassembly (Clean-in-Place or CIP).
The pump operates via two synchronized, counter-rotating lobes that move fluid smoothly without metal-to-metal contact, ensuring a non-squeezing, low-shear transfer perfect for sensitive products.
2. Key Features and Benefits
Superior Hygiene & Cleanability
Materials: Manufactured from corrosion-resistant, non-toxic AISI 304 or 316L stainless steel.
Surface Finish: Wetted surfaces are precision-polished to a mirror finish (typically Ra ≤ 0.8µm), eliminating pockets and preventing bacterial growth.
Sanitary Design: Complies with 3-A, EHEDG, or FDA standards. Supports efficient CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.
Gentle Product Handling
Low Shear: The non-contact rotor design transfers product gently, preserving the integrity of delicate solids (like fruit chunks), emulsions, and live cultures.
High Efficiency & Versatility
Self-Priming & Dry-Run Tolerant: Excellent self-priming capabilities and can withstand dry running for short periods without damage.
Handles High Viscosity: Maintains pumping efficiency across a wide viscosity range, from water-like fluids to thick pastes like toothpaste and dough.
Handles Solids: Capable of pumping fluids with suspended solids without clogging.
Operational Reliability
Smooth, Low-Pulsation Flow: Delivers a consistent, pulse-free flow for stable process conditions.
Reversible Flow: Pumping direction can be reversed simply by changing the motor rotation.
Easy Maintenance: Features a rear pull-out design for easy access to rotors and seals without disconnecting piping.
3. How It Works: The Operating Principle
Rotary lobe pumps are positive displacement pumps that operate on a simple, highly effective principle:
Intake Phase: Two synchronized rotors rotate in opposite directions within the pump casing. As they turn, a cavity is created between the rotors and the casing wall at the inlet side. This increasing volume creates a vacuum, drawing product into the pump.
Transfer Phase: The trapped product is gently carried in the sealed chambers formed between the lobes and the casing. The product is "pushed" rather than "squeezed" through the pump, as the rotors do not make contact with each other or the housing.
Discharge Phase: As the rotors continue to rotate, the chamber volume decreases at the outlet side, displacing the product into the discharge line. This process creates a continuous, smooth, and non-pulsating flow.
4. Common Applications
Food-grade rotary lobe pumps are the preferred choice for demanding applications across various sectors:
Food & Beverage: Ketchup, jams, yogurt, whey, fruit juices, concentrates, sauces, honey, chocolate, syrups, meat slurries, and fillings.
Pharmaceutical & Biotech: Ointments, gels, syrups, buffer solutions, culture media, and biological fluids.
Cosmetics & Personal Care: Shampoos, lotions, creams, toothpaste, and other cosmetic formulations.
Specialty Chemicals: Flavors, fragrances, dyes, and adhesives.
#### 5. Suitable Media and Products
These pumps excel at handling a vast spectrum of sensitive, viscous, and complex fluids:
* Products with Solids:Fruit preserves with chunks, salsa, vegetable purees, and processed cheeses.
* High-Viscosity Fluids:Peanut butter, chocolate, thick sauces, starch slurries, and butter.
* Shear-Sensitive Fluids:Yogurt, live-culture beverages, pharmaceutical emulsions, and polymer solutions.
* Aeration-Sensitive Fluids: The gentle transfer minimizes air entrainment and foaming.
* Fibrous Materials:Certain pulps and food waste streams.
Summary: The food-grade stainless steel rotary lobe pump is an indispensable asset in modern hygienic processing. Its unmatched combination of sanitary design, gentle handling, and versatile performance makes it the ideal solution for reliably and efficiently transferring critical products while maintaining their highest quality.
