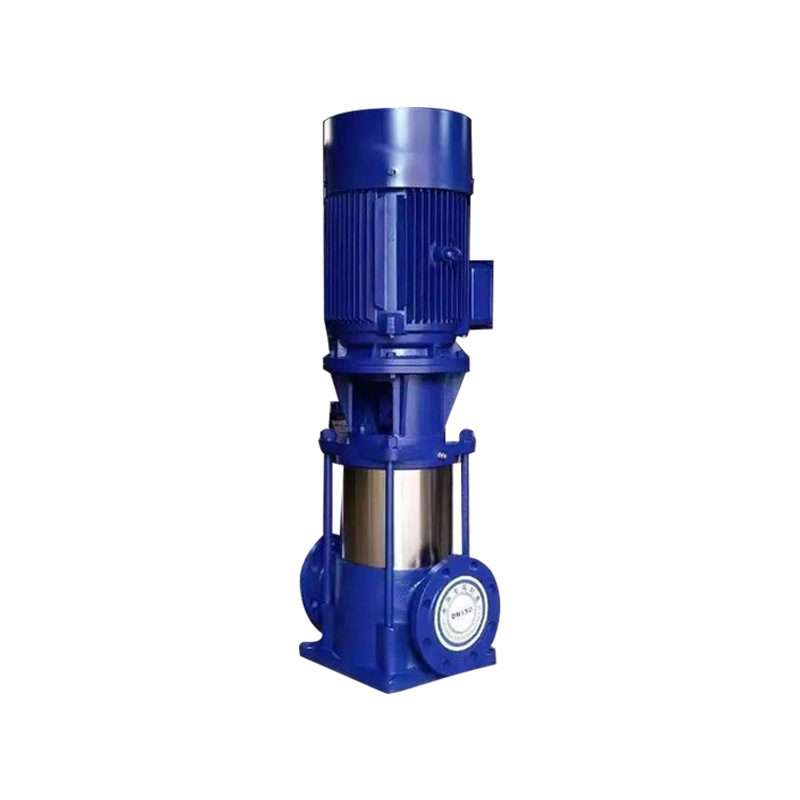

GDL Multi-stage Centrifugal Water Pump (vertical multi-stage pipeline centrifugal pump) is an efficient, energy-saving, and compact centrifugal pump widely used in water supply boosting, industrial circulation systems, fire water supply, HVAC systems, and other fields. Its design features enable it to operate stably under high pressure, making it suitable for high-rise building water supply and long-distance liquid transportation.
Ⅰ.GDL Multi-stage Centrifugal Pumps Working Principle
The GDL multi-stage centrifugal pump achieves high head liquid transportation by connecting multiple impellers in series. After the motor is started, the pump shaft drives the impeller to rotate, and the liquid obtains kinetic energy under the action of the impeller. It is thrown towards the volute and flows into the next stage impeller, gradually increasing the pressure, and finally flows out from the pump outlet. This multi-stage pressurization method effectively increases the pump head while maintaining a smaller volume and higher efficiency.
Ⅱ. GDL Multi-stage Centrifugal Pumps Structural Composition
The GDL Multi-stage Centrifugal Water Pump mainly consists of the following parts:
1. Pump body
The pump body is generally made of stainless steel or cast iron material, which can withstand all the pressure of the pump and provide a flow channel to guide the liquid flow.
2. Impeller
The core components of multi-stage centrifugal pumps are usually made of high-quality stainless steel or copper alloy to ensure good corrosion resistance and wear resistance. The number of impellers determines the head of the pump.
3. Guide vanes (diffusers)
Used to guide liquid from one impeller to the next, converting kinetic energy into pressure energy and improving pump efficiency.
4. Pump shaft
Connect the motor and impeller to transmit power. Usually made of stainless steel to improve corrosion resistance and mechanical strength.
5. Mechanical seal
Using mechanical seals or packing seals to prevent liquid leakage and improve operational reliability.
6. Bearings
Support the pump shaft and reduce friction to ensure stable operation. GDL multi-stage centrifugal pumps generally use rolling bearings or sliding bearings.
7. Motor
GDL multi-stage centrifugal pumps are usually equipped with high-efficiency and energy-saving motors that directly drive the pump shaft to ensure stable operation of the pump.
Ⅲ. GDL Multi-stage Centrifugal Pumps Feature
1. Compact structure and small footprint
The GDL multi-stage centrifugal pump adopts a vertical structure, occupies a small area, and is suitable for situations with limited space, such as high-rise buildings and factory equipment rooms.
2. High head, suitable for long-distance transportation
Due to the use of multi-stage impeller design, high head can be achieved, which is suitable for high-rise building water supply, industrial boosting systems, etc.
3. Efficient and energy-saving, stable operation
The hydraulic design optimization of GDL multi-stage centrifugal pump has improved operating efficiency, reduced energy loss, and lowered operating costs.
4. Low noise and minimal vibration
By using high-quality bearings and precision machined components, the pump operates with low noise, minimal vibration, and long service life.
5. Easy maintenance
Modular design makes disassembly and replacement of components more convenient, reducing maintenance costs.
6. Excellent corrosion resistance
Some GDL multi-stage centrifugal pumps are made of stainless steel material and are suitable for transporting mildly corrosive liquids, such as clean water, mildly acidic and alkaline liquids, etc.
Ⅳ.GDL Multi-stage Centrifugal Pumps Application Area
GDL multi-stage centrifugal pumps are widely used in the following fields due to their high head, high efficiency, and energy-saving characteristics:
1. Water supply for high-rise buildings
GDL multi-stage centrifugal pumps can be used for secondary water supply systems in high-rise buildings such as residential, commercial, and hotel buildings, ensuring stable water pressure.
2. Industrial water supply and circulation
Used for cooling water circulation, boiler water replenishment, process water pressurization, and other applications in industrial production processes.
3. Fire water supply system
As a fire pump, it provides high-pressure water supply to buildings, factories, and public facilities to meet firefighting needs.
4. Heating, Ventilation and Air Conditioning System (HVAC)
Used for circulating chilled water and hot water in air conditioning systems to improve the operational efficiency of the air conditioning system.
5. Agricultural irrigation
In the field of agriculture, it is used to transport water sources over long distances, improve irrigation efficiency, and save water resources.
6. Other industries
Industries that require stable water supply, such as food processing, pharmaceutical manufacturing, and environmental water treatment.
Ⅴ.Key points for selecting
When choosing a GDL multi-stage centrifugal pump, the following factors need to be considered:
1. Flow rate and head
Choose the appropriate flow rate (m ³/h) and head (m) based on actual needs. Excessive or insufficient traffic can affect the operational efficiency of the system.
2. Characteristics of liquid media
Consider the temperature, viscosity, corrosiveness, etc. of the liquid to ensure that the material of the pump can adapt to the characteristics of the medium. For example, when transporting mildly corrosive liquids, stainless steel pumps should be selected.
3. Operating environment
Consider factors such as environmental temperature, humidity, and power supply voltage to ensure that the pump can operate stably for a long time.
4. Economy
Choose pumps with high efficiency and low energy consumption to reduce long-term operating costs.
5. Maintain convenience
Choose models that are easy to disassemble and have low maintenance costs to reduce later maintenance workload.
Ⅵ.Maintenance and upkeep of GDL multi-stage centrifugal pump
1. Regular inspection
Regularly check the operation of the pump, including whether the noise, vibration, flow rate, and pressure are normal.
2. Bearing lubrication
Ensure good lubrication of the bearings, reduce friction losses, and improve the service life of the pump.
3. Mechanical seal inspection
Regularly check the seal for leaks, and replace it promptly if there is wear and tear.
4. Clean the impeller and pump chamber
Prevent impurities from blocking the impeller and affecting the operating efficiency of the pump.
5. Check the operation of the motor
Ensure stable voltage and current of the motor, prevent overload operation, and avoid motor burnout.
6. Precautions for shutdown storage
When not in use for a long time, the liquid inside the pump should be drained to avoid scaling or corrosion, and rust prevention measures should be taken.
Ⅶ.Common faults and solutions of GDL multi-stage centrifugal pump:
Fault phenomenon | Possible reasons | Solution |
Insufficient flow | Impeller blockage, pipeline blockage, seal leakage | Clean the impeller and pipeline, replace the seals |
Excessive noise | Bearing damage, air inside the pump | Replace bearings and exhaust |
Excessive vibration | Unstable foundation, unbalanced impeller | Re fix the pump and calibrate the impeller |
Cannot start | Motor malfunction, power supply issue | Check the motor and circuit |
leak | Mechanical seal damage | Replace the seal |
GDL Multi-stage Centrifugal Water Pump (vertical multi-stage pipeline centrifugal pump) is an efficient, energy-saving, and compact centrifugal pump widely used in water supply boosting, industrial circulation systems, fire water supply, HVAC systems, and other fields. Its design features enable it to operate stably under high pressure, making it suitable for high-rise building water supply and long-distance liquid transportation.
Ⅰ.GDL Multi-stage Centrifugal Pumps Working Principle
The GDL multi-stage centrifugal pump achieves high head liquid transportation by connecting multiple impellers in series. After the motor is started, the pump shaft drives the impeller to rotate, and the liquid obtains kinetic energy under the action of the impeller. It is thrown towards the volute and flows into the next stage impeller, gradually increasing the pressure, and finally flows out from the pump outlet. This multi-stage pressurization method effectively increases the pump head while maintaining a smaller volume and higher efficiency.
Ⅱ. GDL Multi-stage Centrifugal Pumps Structural Composition
The GDL Multi-stage Centrifugal Water Pump mainly consists of the following parts:
1. Pump body
The pump body is generally made of stainless steel or cast iron material, which can withstand all the pressure of the pump and provide a flow channel to guide the liquid flow.
2. Impeller
The core components of multi-stage centrifugal pumps are usually made of high-quality stainless steel or copper alloy to ensure good corrosion resistance and wear resistance. The number of impellers determines the head of the pump.
3. Guide vanes (diffusers)
Used to guide liquid from one impeller to the next, converting kinetic energy into pressure energy and improving pump efficiency.
4. Pump shaft
Connect the motor and impeller to transmit power. Usually made of stainless steel to improve corrosion resistance and mechanical strength.
5. Mechanical seal
Using mechanical seals or packing seals to prevent liquid leakage and improve operational reliability.
6. Bearings
Support the pump shaft and reduce friction to ensure stable operation. GDL multi-stage centrifugal pumps generally use rolling bearings or sliding bearings.
7. Motor
GDL multi-stage centrifugal pumps are usually equipped with high-efficiency and energy-saving motors that directly drive the pump shaft to ensure stable operation of the pump.
Ⅲ. GDL Multi-stage Centrifugal Pumps Feature
1. Compact structure and small footprint
The GDL multi-stage centrifugal pump adopts a vertical structure, occupies a small area, and is suitable for situations with limited space, such as high-rise buildings and factory equipment rooms.
2. High head, suitable for long-distance transportation
Due to the use of multi-stage impeller design, high head can be achieved, which is suitable for high-rise building water supply, industrial boosting systems, etc.
3. Efficient and energy-saving, stable operation
The hydraulic design optimization of GDL multi-stage centrifugal pump has improved operating efficiency, reduced energy loss, and lowered operating costs.
4. Low noise and minimal vibration
By using high-quality bearings and precision machined components, the pump operates with low noise, minimal vibration, and long service life.
5. Easy maintenance
Modular design makes disassembly and replacement of components more convenient, reducing maintenance costs.
6. Excellent corrosion resistance
Some GDL multi-stage centrifugal pumps are made of stainless steel material and are suitable for transporting mildly corrosive liquids, such as clean water, mildly acidic and alkaline liquids, etc.
Ⅳ.GDL Multi-stage Centrifugal Pumps Application Area
GDL multi-stage centrifugal pumps are widely used in the following fields due to their high head, high efficiency, and energy-saving characteristics:
1. Water supply for high-rise buildings
GDL multi-stage centrifugal pumps can be used for secondary water supply systems in high-rise buildings such as residential, commercial, and hotel buildings, ensuring stable water pressure.
2. Industrial water supply and circulation
Used for cooling water circulation, boiler water replenishment, process water pressurization, and other applications in industrial production processes.
3. Fire water supply system
As a fire pump, it provides high-pressure water supply to buildings, factories, and public facilities to meet firefighting needs.
4. Heating, Ventilation and Air Conditioning System (HVAC)
Used for circulating chilled water and hot water in air conditioning systems to improve the operational efficiency of the air conditioning system.
5. Agricultural irrigation
In the field of agriculture, it is used to transport water sources over long distances, improve irrigation efficiency, and save water resources.
6. Other industries
Industries that require stable water supply, such as food processing, pharmaceutical manufacturing, and environmental water treatment.
Ⅴ.Key points for selecting
When choosing a GDL multi-stage centrifugal pump, the following factors need to be considered:
1. Flow rate and head
Choose the appropriate flow rate (m ³/h) and head (m) based on actual needs. Excessive or insufficient traffic can affect the operational efficiency of the system.
2. Characteristics of liquid media
Consider the temperature, viscosity, corrosiveness, etc. of the liquid to ensure that the material of the pump can adapt to the characteristics of the medium. For example, when transporting mildly corrosive liquids, stainless steel pumps should be selected.
3. Operating environment
Consider factors such as environmental temperature, humidity, and power supply voltage to ensure that the pump can operate stably for a long time.
4. Economy
Choose pumps with high efficiency and low energy consumption to reduce long-term operating costs.
5. Maintain convenience
Choose models that are easy to disassemble and have low maintenance costs to reduce later maintenance workload.
Ⅵ.Maintenance and upkeep of GDL multi-stage centrifugal pump
1. Regular inspection
Regularly check the operation of the pump, including whether the noise, vibration, flow rate, and pressure are normal.
2. Bearing lubrication
Ensure good lubrication of the bearings, reduce friction losses, and improve the service life of the pump.
3. Mechanical seal inspection
Regularly check the seal for leaks, and replace it promptly if there is wear and tear.
4. Clean the impeller and pump chamber
Prevent impurities from blocking the impeller and affecting the operating efficiency of the pump.
5. Check the operation of the motor
Ensure stable voltage and current of the motor, prevent overload operation, and avoid motor burnout.
6. Precautions for shutdown storage
When not in use for a long time, the liquid inside the pump should be drained to avoid scaling or corrosion, and rust prevention measures should be taken.
Ⅶ.Common faults and solutions of GDL multi-stage centrifugal pump:
Fault phenomenon | Possible reasons | Solution |
Insufficient flow | Impeller blockage, pipeline blockage, seal leakage | Clean the impeller and pipeline, replace the seals |
Excessive noise | Bearing damage, air inside the pump | Replace bearings and exhaust |
Excessive vibration | Unstable foundation, unbalanced impeller | Re fix the pump and calibrate the impeller |
Cannot start | Motor malfunction, power supply issue | Check the motor and circuit |
leak | Mechanical seal damage | Replace the seal |
