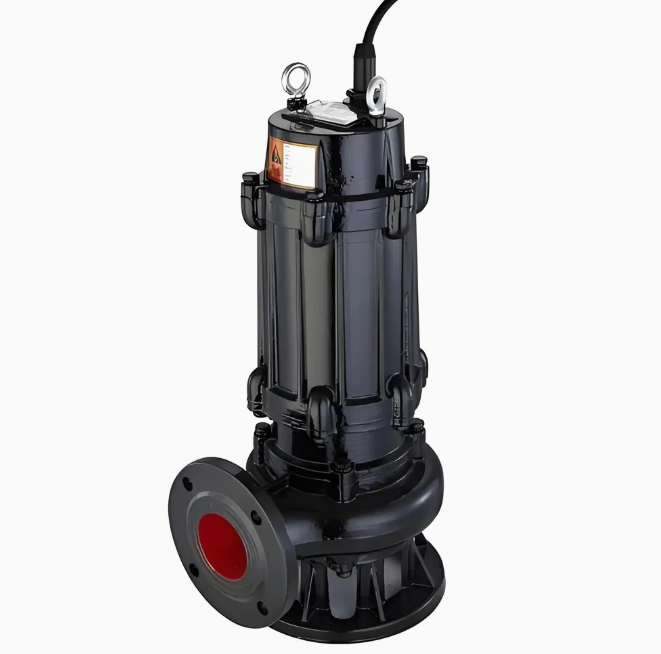

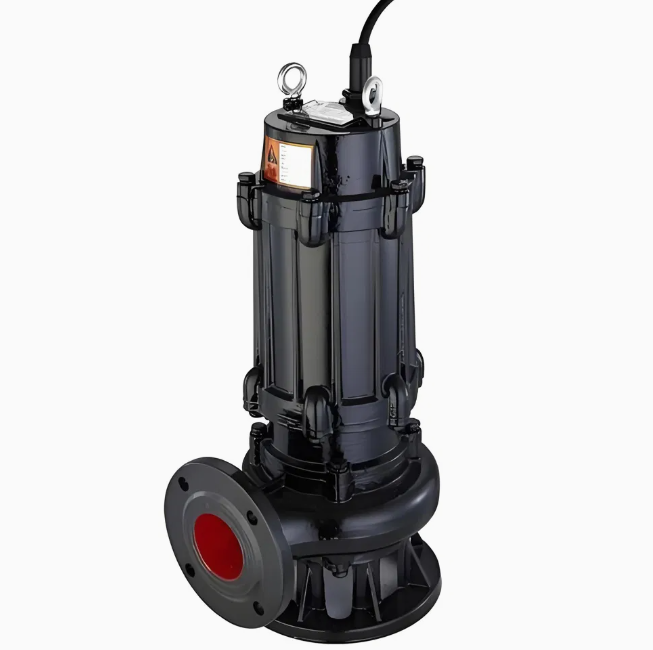

WQK/QG belt cutting submersible sewage pump perfectly integrates dry-type motor and pump body, equipped with professional cutting device to solve the common clogging pain point of traditional sewage pumps. It can cut and discharge long fibers, plastic bags, cloth strips, straw, ropes and other sundries mixed in sewage efficiently. This submersible sewage pump is suitable for conveying domestic wastewater, sewage, feces, suspended solids and non-corrosive medium containing paper scraps, wood chips, sediment and ore particles. The allowable liquid temperature ≤40℃, medium density ≤1200kg/m³, applicable pH value ranges from 5 to 9, meeting most conventional sewage conveying working conditions.
Strong Anti-clogging & Large Passing Capacity
Adopts large flow channel hydraulic components design, the pump can smoothly pass fiber materials 5 times the pump diameter and solid particles up to 50% of pump diameter, thoroughly avoid winding and blockage failures.
Energy Saving & High Efficiency
Optimized hydraulic structure with matched high-efficiency motor, high operation efficiency, effectively reduces long-term power consumption cost for users.
Durable Double-End Mechanical Seal
Double-pass series mechanical seal made of wear-resistant hard tungsten carbide, supports continuous safe running over 8000 hours, greatly lower later maintenance frequency and replacement cost.
Compact Structure, Low Project Investment
Submersible working design requires no pump room construction, small size, flexible moving and installation, significantly cuts civil engineering construction budget. Two installation modes: fixed automatic coupling installation and mobile free installation, fit different on-site layout demands.
Multiple Built-in Safety Protection Systems
Built-in oil-water probe inside oil chamber; once mechanical seal is damaged and water invades, the probe sends alarm signal to protect motor from burnout. Optional full-automatic control cabinet supports monitoring water leakage, electric leakage, overload and over-temperature in real time, guarantee long-term stable unattended operation.
Float switch supports customized water level start-stop setting, automatic pump running control without manual supervision; optional water-jacketed external circulating cooling system enables dry running protection for motor.
Easy Maintenance Design
Double guide rail automatic coupling installation system allows maintenance operators to complete pump lifting and overhaul without entering sewage pit, greatly improve operation safety and overhaul efficiency.
Wide Application Scenarios
✅ Municipal & Construction Industry
Construction sites, engineering foundation works, municipal facilities, sewage treatment plants, high-rise building basements, civil air defense tunnels, subway underground layer sewage drainage.
✅ Factory & Industrial Production
Sewage circulation & wastewater transportation for medium & small enterprises; slag slurry pumping for food, papermaking, brewing, steel, textile, pharmaceutical, tanning, cement plants and mines.
✅ Agriculture & Livestock Breeding
Chicken farms, pig farms and all kinds of breeding industry manure & septic tank waste conveying; fish pond water changing, sediment cleaning and oxygenation water supply; rural biogas digester & farmland irrigation water delivery.
✅ Commercial Supporting Facilities
Hotel, hospital, shopping mall sewage discharge; civil air defense drainage station & water treatment plant water supply equipment matching.
