In today’s industrial landscape, handling high-viscosity fluids has become a mission-critical task. From heavy oils, bitumen, resins and pastes – to wastewater sludges, food pastes or polymer melts – many processes demand a pump that not only moves the fluid but does so efficiently, reliably, and with minimal shear or damage to the media. That’s exactly where our high-viscosity rotary lobe pump steps into the spotlight.

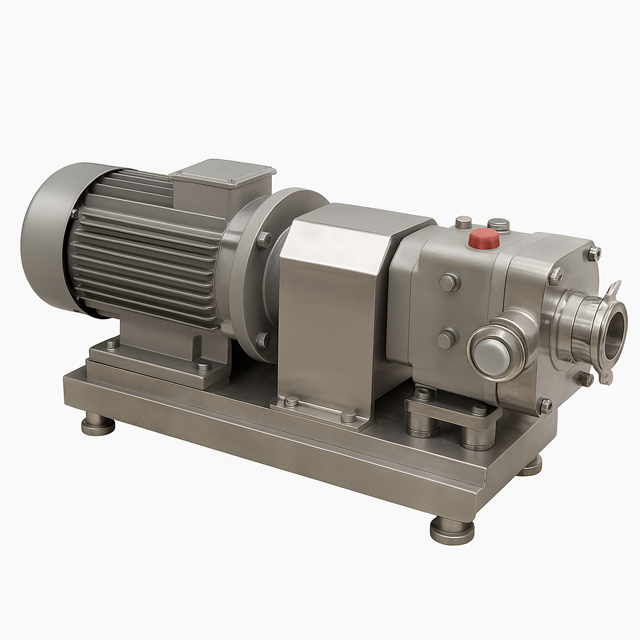

Our precision-engineered pump is designed for the most demanding media: fluids with elevated viscosities, fleeting shear sensitivity, suspended solids, or difficult flow behaviour. Whether your requirement is continuous transfer, batch dosing, gentle product handling, or abrasive-particle tolerance, this pump delivers.
Conventional pump technologies (centrifugal, simple gear pumps, peristaltic) often struggle when fluid viscosity grows, or when particles/suspension are present. Key issues include loss of flow, high slip (internal leakage), difficulty priming, elevated shear (which may damage sensitive products), and frequent maintenance.
Positive-displacement action: Each rotor revolution directly displaces fluid, offering stable flow regardless of viscosity. For example, manufacturers list viscosity capability up to 1,000,000 cP (centipoise) or more.
Gentle, low-shear handling: The lobes do not grind fluid against each other; the design avoids high shear zones – critical for shear-sensitive or thixotropic media.
Excellent solids handling: Many models tolerate soft or even semi-solid particles suspended in the fluid without clogging.
Self-priming and reversible flow options: Useful for challenging suction conditions or systems requiring flow reversal.
Viscosity capability: Up to 1,000,000 cP or more in some models.
Flow rate range: From small precision units (0.1 m³/h) up to large industrial units (e.g., 40 m³/h or greater).
Pressure differential: Many models manage up to 15–20 bar (or higher depending on size).
Temperature range: From low (-40 °C) to high temperatures (e.g., +150 °C or more) depending on materials.
Construction materials: Wetted parts often in stainless steel 316L/304, sometimes with corrosion-resistant alloys (Hastelloy, Duplex, Titanium) for aggressive media.
Seal options: Mechanical seals, double seals, flushable designs – selected to match abrasive, high-temperature or hygienic applications.
This flagship model is engineered for heavy-duty performance:
Power: 18.5 kW motor drive
Flow rate: Approx. 160-200 m³/h (model dependent)
Abrasion/impurity tolerance: Built for sludge, heavy oils, and media containing suspended solids
Non-clogging design: Robust internal geometry and bearings designed for high load.
It exemplifies our commitment to delivering reliable, high-capacity solutions for demanding industrial media.
Another compact option is the 5.5 kW Rotary Lobe Pump, which offers 35-60 m³/h flow and is ideal for moderate high-viscosity applications with lower budget or space constraints.
Industries such as oil refining, asphalt facilities, and heavy-duty marine bunkering require pumps capable of moving viscous hydrocarbon fluids. Our rotary lobe pump handles high-viscosity oil streams, controlling shear and maintaining stable delivery under difficult conditions.
Industries such as oil refining, asphalt facilities, and heavy-duty marine bunkering require pumps capable of moving viscous hydrocarbon fluids. Our rotary lobe pump handles high-viscosity oil streams, controlling shear and maintaining stable delivery under difficult conditions.
When transferring high-viscosity resins, acrylic coatings or thick polymer pastes, shear sensitivity and product integrity become critical. As one manufacturer notes: “Designed for high-viscosity acrylic resin coatings (8,000-50,000 cP) … the pump preserves the resin’s rheological stability.”
Even in sanitary applications, high-viscosity media like creams, yogurts, sauces or chocolate need pumps that maintain consistency and meet hygienic standards. Our pump design supports such uses, with CIP/SIP compatibility.
Wastewater Sludge & Industrial Slurries
High dry-matter sludge, waste solids and particle-laden slurries pose serious challenges to pumps. The rotary lobe pump is engineered for heavy-duty duty, allowing solids up to 61 mm according to some specifications.
Low operational speed / minimal shear: Reduces thermal damage, maintains product quality, especially important for sensitive media.
Robust materials & finishes: Wetted parts in stainless steel or speciality alloys, surface finishes (e.g., Ra < 0.8µm) in hygienic versions.
Easy maintenance & long service life: Modular components, minimal wear parts, front-loaded seals simplify upkeep.
Self-priming & reversible flow capabilities: Useful for systems where suction conditions are difficult or flow reversal is required.
Low noise & vibration: Because of positive‐displacement and smooth rotor action, the pump offers quiet, stable operation—good for plant environments.
Parameter | Value Range | Remarks |
Viscosity capability | Up to ~1,000,000 cP (or 1,000,000 mPa·s) | Suitable for ultra-thick media |
Flow rate | From <0.1 m³/h up to 40 m³/h+ | Select model based on duty |
Differential pressure | Up to ~20 bar or more | Check for plant head requirement |
Temperature range | From -40 °C up to ~150 °C+ | Consider media temperature |
Solids handling | Up to e.g. 61 mm particulates in certain models | For particle-laden media |
Materials | 316L/304 SS, Hastelloy, etc | For corrosion or sanitary needs |
Media viscosity: Determine worst-case viscosity (cP or mPa·s).
Flow rate needed: Specify required transfer volume per hour/day.
Pressure head & suction conditions: Check static head, pipe length, suction lift, return lift.
Solids content: Size and hardness of particles, abrasion risk.
Temperature and chemical compatibility: Ensure materials selected suit media chemistry & temperature.
Hygienic/Sanitary requirements: If food/pharma use, check FDA/3-A/EHEDG compliance.
Installation & maintenance needs: Consider footprint, service access, spare parts availability.
Drive & control options: Does the pump need variable speed drive (VSD) for viscosity changes?
Budget & lifecycle cost: A robust pump may cost more upfront but reduce downtime and maintenance significantly.
By choosing a pump purpose-built for high-viscosity service, you benefit in multiple ways:
Fewer production stoppages from clogged or stalled pumps
Lower maintenance and spare-part costs
Better product integrity (especially for sensitive media)
Reduced energy waste (due to efficient design)
Longer service life and reliability in harsh conditions
Engineering team with deep experience in thick-media pumping
Customised rotor geometry & clearance design for your specific medium
Wide materials portfolio (from stainless steel to high-alloy)
Dedicated service & aftermarket support — quick spare part sourcing, global shipping
Full documentation: performance curves, materials data, maintenance guides
If you’re handling thick, sticky, particle-laden or shear-sensitive media and battling with standard pumps that clog, fail, or require constant maintenance, it’s time to upgrade to a purpose-designed high-viscosity rotary lobe pump. Whether you’re in oil & gas, coatings, food processing, wastewater treatment or chemical manufacturing, our pump delivers the stability, efficiency and durability you need. Contact us today to discuss your application — we will assist with model selection, quotation, customisation and full technical support.
