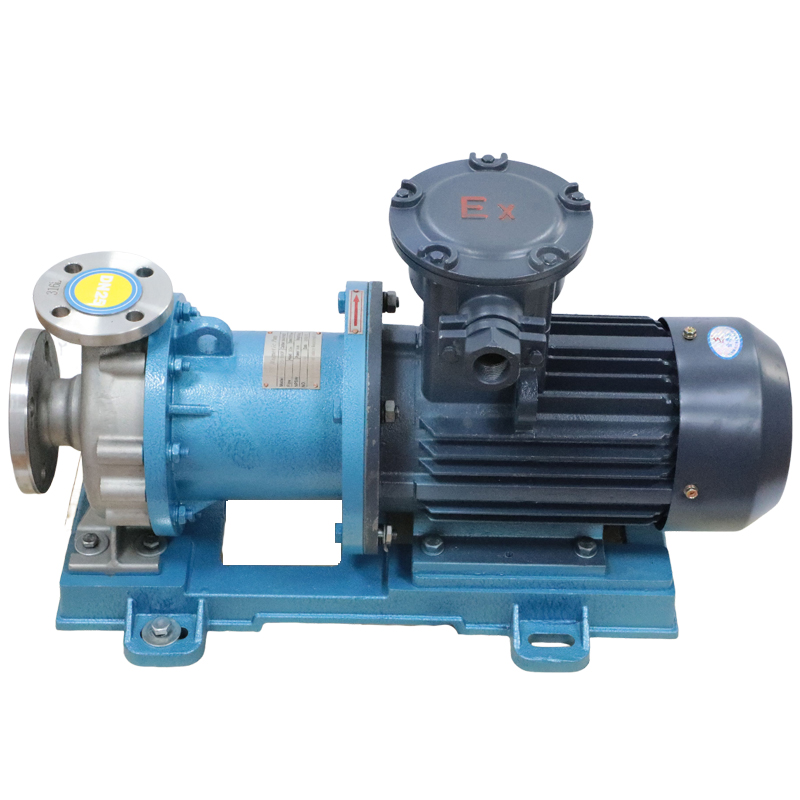

JMC stainless steel magnetic drive pump is made of 304, 316L and other stainless steel materials, which have the advantages of high efficiency and energy saving, wide applicability of media, high temperature resistance, strong magnetism, and non demagnetization. It has the characteristics of high efficiency and energy saving, strong anti cavitation performance, wide temperature range, strong sealing, no leakage, clean and environmentally friendly, low operating noise and vibration, and long service life. It can transport flammable, explosive, and corrosion-resistant liquid products. Widely used in fields such as chemical industry, alkali production, petroleum, medicine, health, pesticides, papermaking, dyes, sewage treatment, etc. It is an ideal conveying equipment for media such as alkaline solution, alcohols, and various organic solvents.

Material	stainless steel
FLow rate	1.5-220 m³/h
Head	18-80 m
Power	0.75-55 Kw
Operation temperature	-20℃~120℃ ; 120℃~250℃
Pressure	Max 1.6Mpa
Feature	Strong sealing performance, no leakage, wide applicability, low operating noise and vibration, and long service life
Transport medium	Alkali, benzene, ether, alcohol, aldehyde, alkane, ammonia, sodium hydroxide, and pharmaceutical intermediates are suitable for the transportation of toxic, harmful, flammable, explosive, and precious liquids.

Leak free design: Due to the lack of mechanical seals in magnetic pumps, power is transmitted through magnetic coupling, avoiding the leakage problem caused by seal wear in traditional pumps.
Corrosion resistance: Made of stainless steel material, it has excellent corrosion resistance and is suitable for transporting various corrosive liquids such as acids and alkalis.
Efficient and energy-saving: well-designed, highly efficient, and more energy-efficient compared to traditional pumps.
Simple structure and easy maintenance: Due to the lack of mechanical seals, the structure is relatively simple, making maintenance and repair more convenient.

NO.	Type	Flow	Head	EFF	NPSHr	Aperture	Speed	Power	Weight
		m³/h	m	%	m	mm	r/min	kw	kg
1	JMC25-25-125	1.8	20	24	3.0	25*25	2900	1.5	54
2	JMC32-25-125	3.6	20	24	3.0	32*25	2900	2.2	60
3	JMC32-25-160	3.6	32	22	3.0	32*25	2900	3	66
4	JMC40-25-125	6.3	20	30	3.0	40*25	2900	2.2	61
5	JMC40-25-160	6.3	32	35	3.0	40*25	2900	3	67
6	JMC40-25-200	6.3	50	30	3.0	40*25	2900	5.5	97
7	JMC40-25-250	6.3	80	17	3.0	40*25	2900	11	210
8	JMC50-32-125	12.5	20	35	3.2	50*32	2900	2.2	68
9	JMC50-32-160	12.5	32	38	3.2	50*32	2900	4	74
10	JMC50-32-200	12.5	50	35	3.2	50*32	2900	7.5	105
11	JMC50-32-250	12.5	80	30	3.2	50*32	2900	11	235
12	JMC65-50-125	25	20	41	3.5	65*50	2900	4	83
13	JMC65-50-160	25	32	52	3.5	65*50	2900	5.5	125
14	JMC65-40-200	25	50	42	3.5	65*40	2900	11	220
15	JMC65-40-250	25	80	40	3.5	65*40	2900	18.5	280
16	JMC80-65-125	50	20	56	4.0	80*65	2900	7.5	130
17	JMC80-65-160	50	32	50	4.0	80*65	2900	11	230
18	JMC80-50-200	50	50	60	4.0	80*50	2900	15	270
19	JMC80-50-250	50	80	57	4.0	80*50	2900	30	380
20	JMC100-80-125	100	20	55	4.5	100*80	2900	11	260
21	JMC100-80-160	100	32	56	4.5	100*80	2900	18.5	290
22	JMC100-65-200	100	50	60	4.5	100*65	2900	30	340
23	JMC100-65-250	100	80	58	5.0	100*65	2900	45	430
24	JMC125-100-160	160	32	50	5.0	125*100	2900	37	380
25	JMC125-100-200	200	50	68	5.0	125*100	2900	55	520
26	JMC150-125-250	200	20	64	5.0	150*125	2900	22	390

Chemical industry: suitable for conveying various toxic, harmful, volatile, and valuable liquids.
Pharmaceutical industry: used to transport various types of medicinal liquids, ensuring that they are not contaminated.
Food processing: used for conveying food grade liquids and maintaining high standards of hygiene.
Electronic industry: suitable for transporting high-purity chemical reagents.

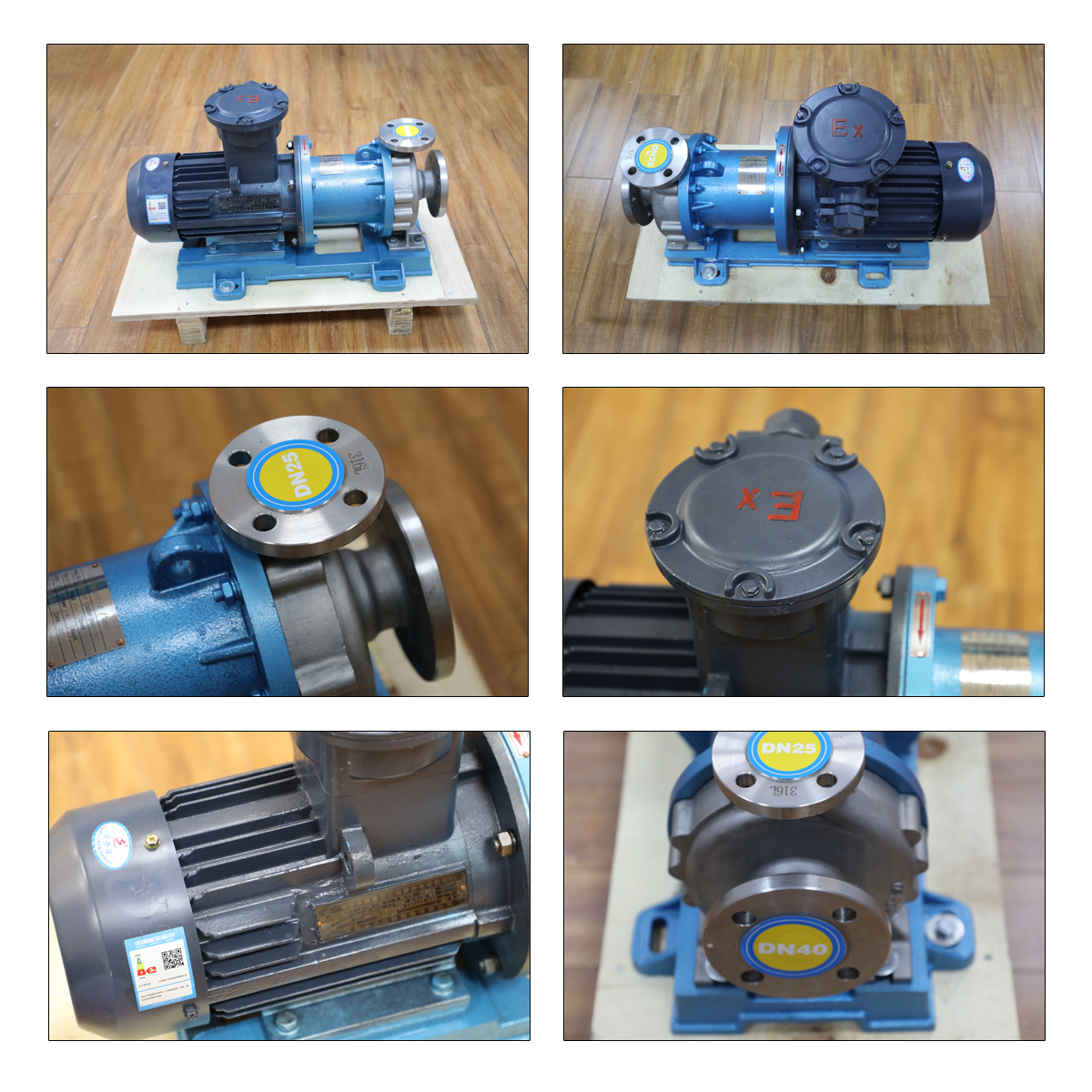

JMC40-25-160P Stainless Steel Magnetic Pump

JMC40-25-160P Stainless Steel Magnetic Pump
