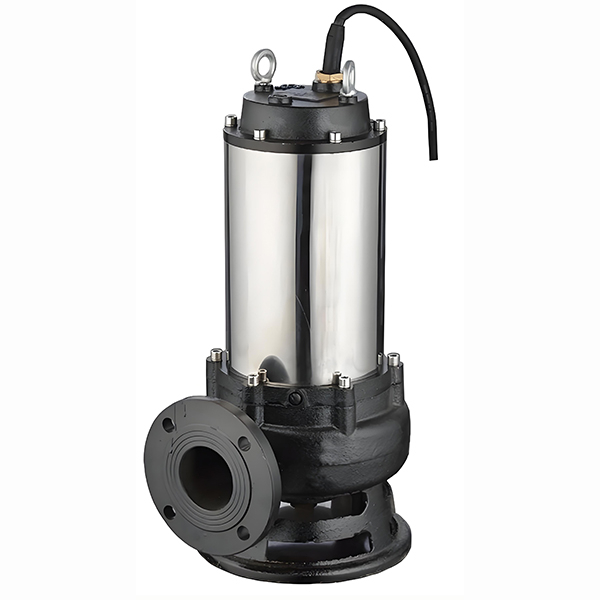

The JYWQ series submersible sewage pump equipped with mixing function is a device designed for efficient treatment of sewage and waste, suitable for transporting sewage containing solid particles, long fiber impurities, and sediments. Its stirring function uses strong eddy current agitation to fully mix the sediment and sludge at the bottom of the pool, avoiding blockage or sedimentation problems, making it particularly suitable for sewage treatment scenarios such as municipal, industrial, and agricultural.
Product Features
Mixing function design
Equipped with a powerful stirring device to prevent solid deposition at the bottom of the sewage tank and ensure efficient operation of the pump body.
Unobstructed main channel
Special impeller structure with large channel design, which can effectively pass solid particles with larger diameters and long fiber impurities, reducing the risk of blockage and entanglement.
Diving operation
The motor and pump body are designed to be integrated, allowing for direct underwater operation without the need for complex pump rooms, reducing installation costs.
Efficient and energy-saving
Optimize hydraulic design for high efficiency, low energy consumption, and long service life.
High quality materials
The key components such as the pump body and impeller are made of high-strength and corrosion-resistant materials, which can adapt to complex media such as sewage and pollutants.
Double sealed protection
Double layer protection of mechanical seal and auxiliary seal prevents water from entering the motor chamber, ensuring long-term reliable operation of the equipment.
Scope of application
Municipal engineering: sewage discharge and upgrading of sewage treatment plants.
Industrial wastewater treatment: Factory wastewater discharge, especially media containing suspended particles or fiber impurities.
Agricultural irrigation: farmland sewage, drainage, and water source transportation.
Construction site: foundation pit drainage, mud cleaning.
Aquaculture industry: dredging of fish ponds and drainage of aquaculture farms.
Technical Parameter
Flow range: 10-1000 m ³/h
Head range: 5-45 meters
Power range: 0.75-75 kW
Channel diameter: capable of passing solid particles with a diameter of 30-100 mm
Power Requirements: Three phase 380V, 50Hz (optional other voltages)
Protection level: IP68 (waterproof diving level)
Medium temperature: 0 ° C-40 ° C (special materials can withstand high temperatures)
PH range: 5-9 (standard material)
Model Naming Rules
Taking JYWQ50-30-7.5 as an example:
JYWQ: Mixing submersible sewage pump
50: Pump diameter 50 mm
30: Lift of 30 meters
7.5: Motor power 7.5 kW
Installation method
Mobile installation:
Directly placed in the sewage tank, suitable for flexible use.
Automatic coupling installation:
Equipped with guide rails and bases for easy and quick lifting and maintenance, suitable for fixed occasions.
Product Advantages
Efficient mixing of sewage to avoid accumulation of silt at the bottom of the pool.
Widely applicable to meet various sewage treatment needs.
Energy saving design, low operating costs, and high reliability.
Do you need further technical information or selection suggestions? I can provide more information!
