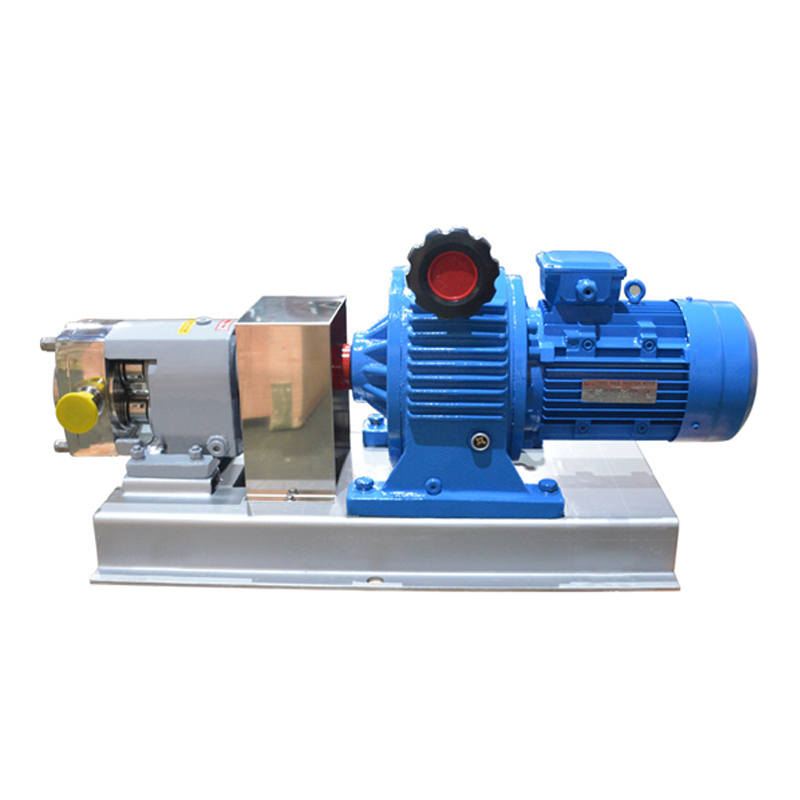

LQ3A stainless steel rotary rotor pump is a high-quality rotary pump commonly used in food, beverage, pharmaceutical, chemical and other fields, with high corrosion resistance and wear resistance. The pump body and rotor are both made of stainless steel material, which can transport liquids under strict hygiene and anti-corrosion requirements. The LQ3A stainless steel rotary pump is exquisitely designed, compact in structure, and has a smooth and pulsation free conveying process, suitable for handling liquids with high viscosity, particles or bubbles.
Product Features
This series not only has the same use and characteristics as other rotary pumps, but also has its unique use, suitable for conveying high viscosity between 0.02 and 100 Pa Heavy oil, crude oil, residual oil, Huai grease, rubber, fiberglass, asphalt with a temperature below 200 ℃. Any and all physical properties of toothpaste, cosmetics, paste like foods, ointments, oils, inks, and synthetic fiber slurries ensure that their original quality is not affected in the slightest, and are also suitable for transporting corrosive liquids containing various solid particles.
Product Usage
Environmental protection refers to the transportation of industrial wastewater, domestic wastewater, and sewage containing solid particles and short fibers, especially used in oil-water separators, plate and frame filter presses, and other equipment.
Shipbuilding industry: cleaning of the bottom of the ship, transportation of oil and water, oil residue, oily wastewater, and other ring materials.
Petroleum industry: transporting crude oil, mixtures of crude oil and water, mixtures of coalfield gas and water, injecting polymers into geological formations, etc.
Medicine and daily chemical products: various viscous pastes, emulsions, and ointments.
Food canning industry: various viscous starches, strong distiller's grains, grain product residues, various sauces, slurries, solid material slurries.
Construction industry: spraying of cement mortar, lime slurry, coatings, and paste like materials.
Mining industry: solid particles, groundwater, and slurry water in mines.
Chemical industry: various suspensions, oils, various colloidal slurries, various adhesives.
Printing and papermaking: high viscosity ink, PVC polymer plastic paste for wallpaper, various concentrations of pulp, and short fiber pulp.
Industrial boilers and power plants: coal water slurry transportation
LQ3A Performance Parameter：
Model | Every 100r displacement (L) | Suggested speed range | Corresponding flow | Motor Power |
LQ3A-6 | 6 | 200～500 | 650～1600 | 1.5 |
LQ3A-8 | 8 | 200～500 | 850～21600 | 1.5 |
LQ3A-12 | 12 | 200～500 | 1300～3200 | 2.2 |
LQ3A-20 | 20 | 200～500 | 2100～5400 | 3 |
LQ3A-30 | 30 | 200～400 | 3200～6400 | 4 |
LQ3A-36 | 36 | 200～400 | 3800～7600 | 5.5 |
LQ3A-52 | 52 | 200～400 | 5600～11000 | 5.5 |
LQ3A-66 | 66 | 200～400 | 7100～14000 | 7.5 |
LQ3A-78 | 78 | 200～400 | 9000～18000 | 7.5 |
LQ3A-100 | 100 | 200～400 | 11000～22000 | 11 |
LQ3A-135 | 135 | 200～400 | 15000～30000 | 11 |
Note: The flow range in the table refers to the data measured when the medium is "water".
The speed regulation adopts a continuously variable transmission or a frequency converter, with a speed range of 200-900rpm.
When transporting high viscosity concentrated liquids, the motor power needs to be increased.
For media with poor fluidity, it is recommended to use a pump with a matching flow rate at the inlet for transportation.
The data in this table is subject to change without prior notice, and the actual product with the correct parameters provided shall prevail.
