Micro Magnetic Gear Metering Pump With Explosion-proof Variable Frequency Motor

5 0 Reviews

Magnetic gear pump is a type of positive displacement gear pump that achieves non-contact torque transmission through magnetic actuators, replacing dynamic seals with static seals to achieve complete leak free operation. Magnetic gear pumps are suitable for industries such as petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, and national defense. They are ideal equipment for transporting flammable, explosive, volatile, toxic, rare and valuable liquids, as well as various corrosive liquids. Suitable for conveying fluids with certain lubricity that do not contain solid particles and fibers in various industry processes.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

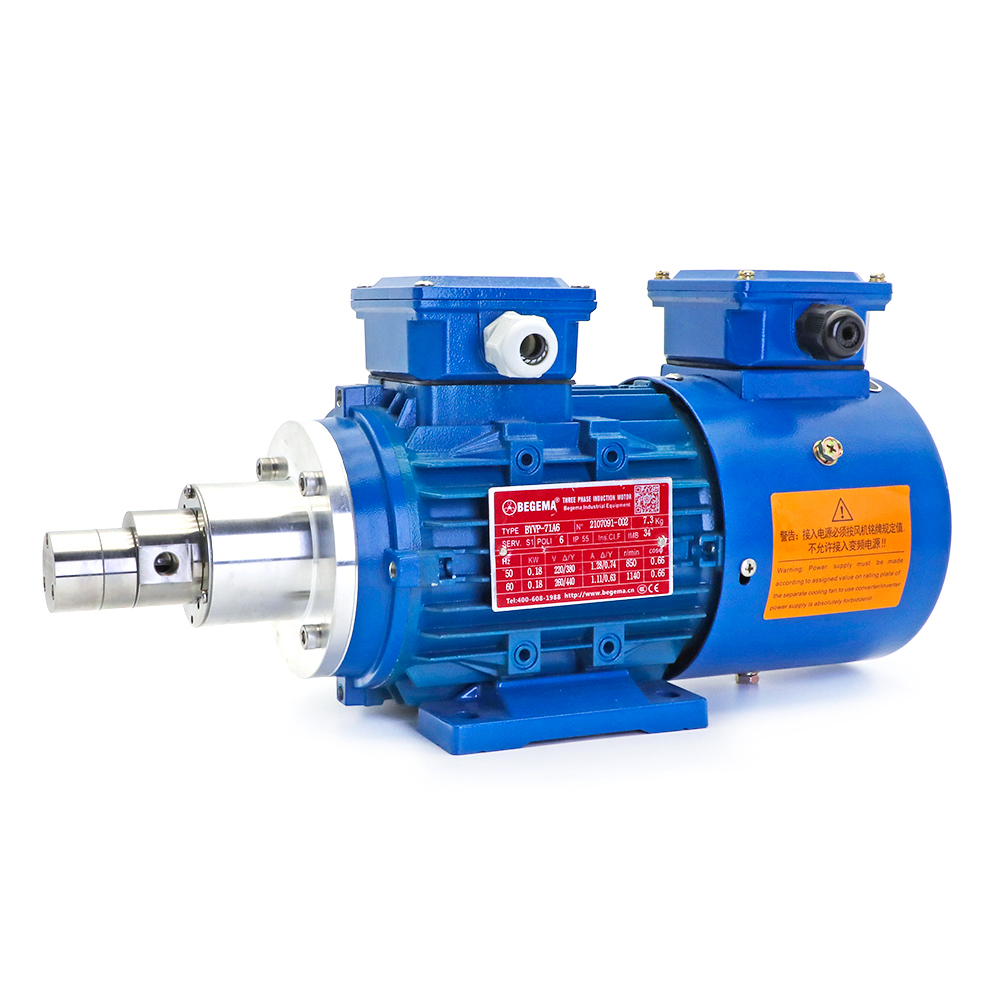

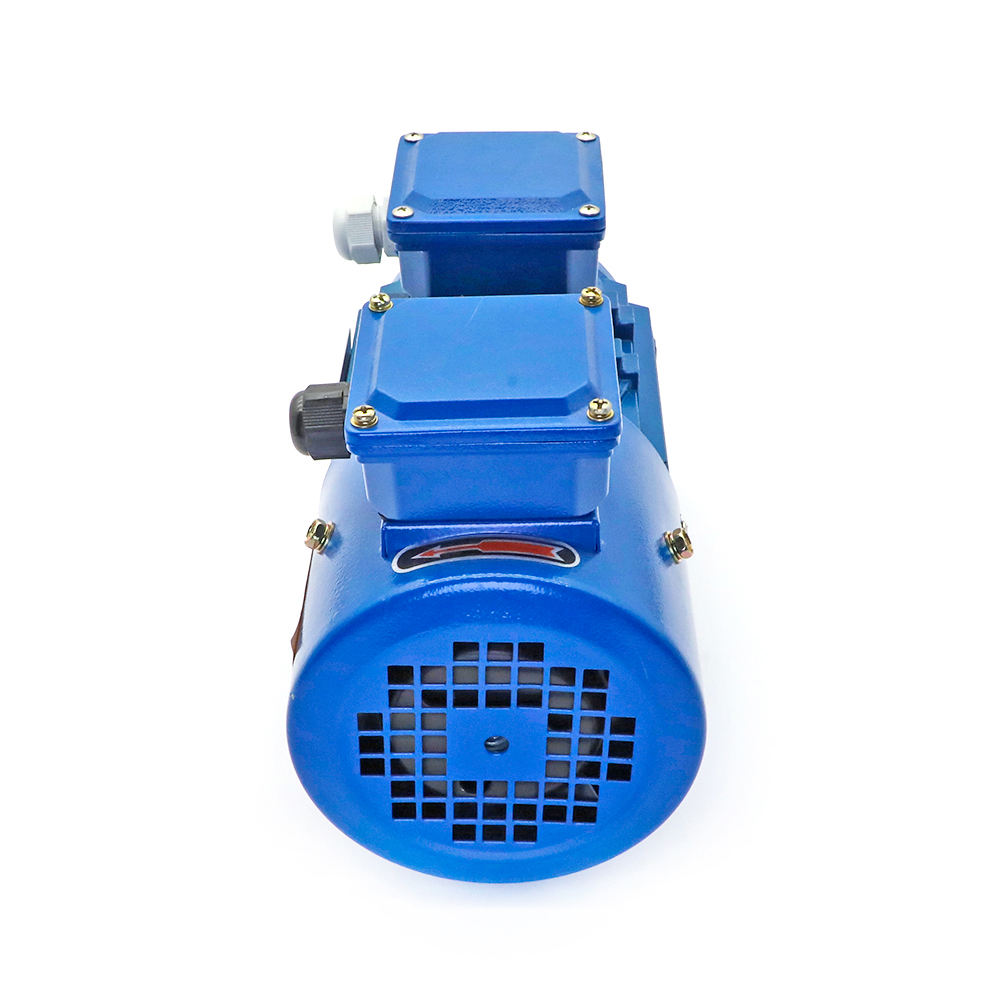

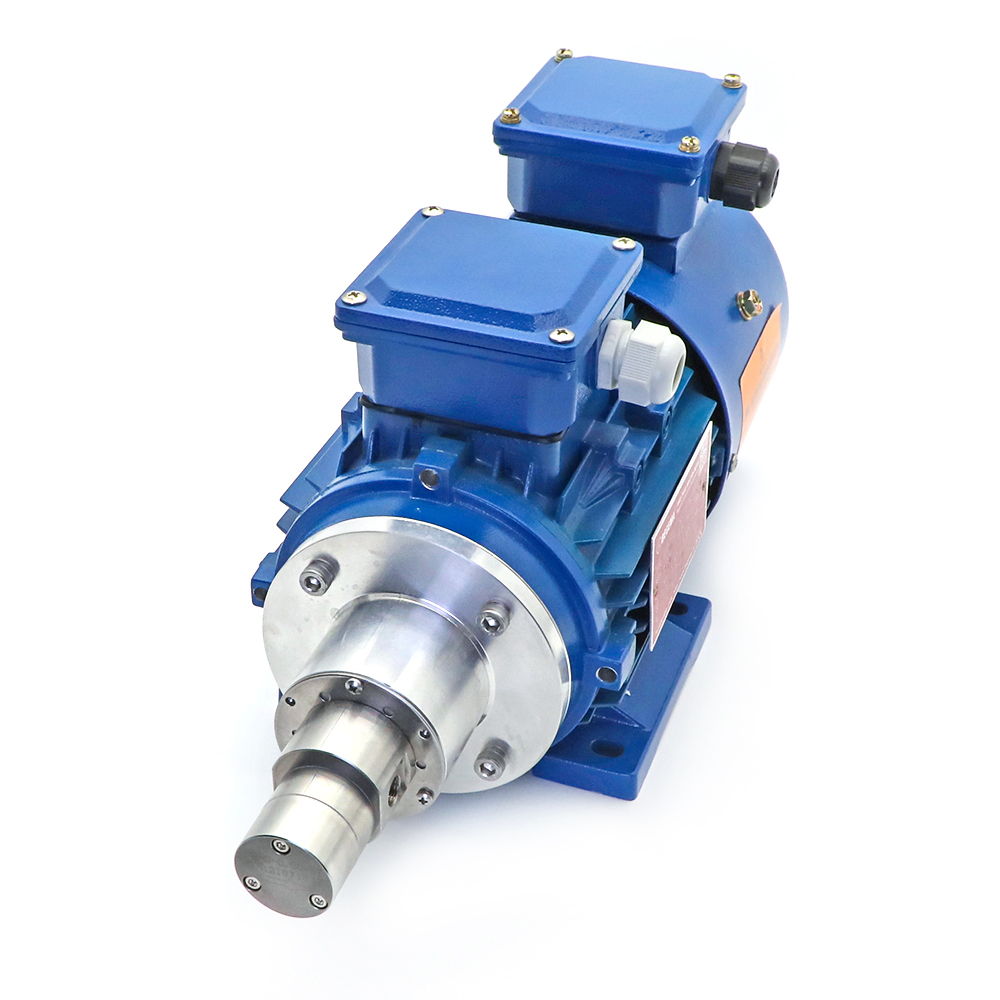

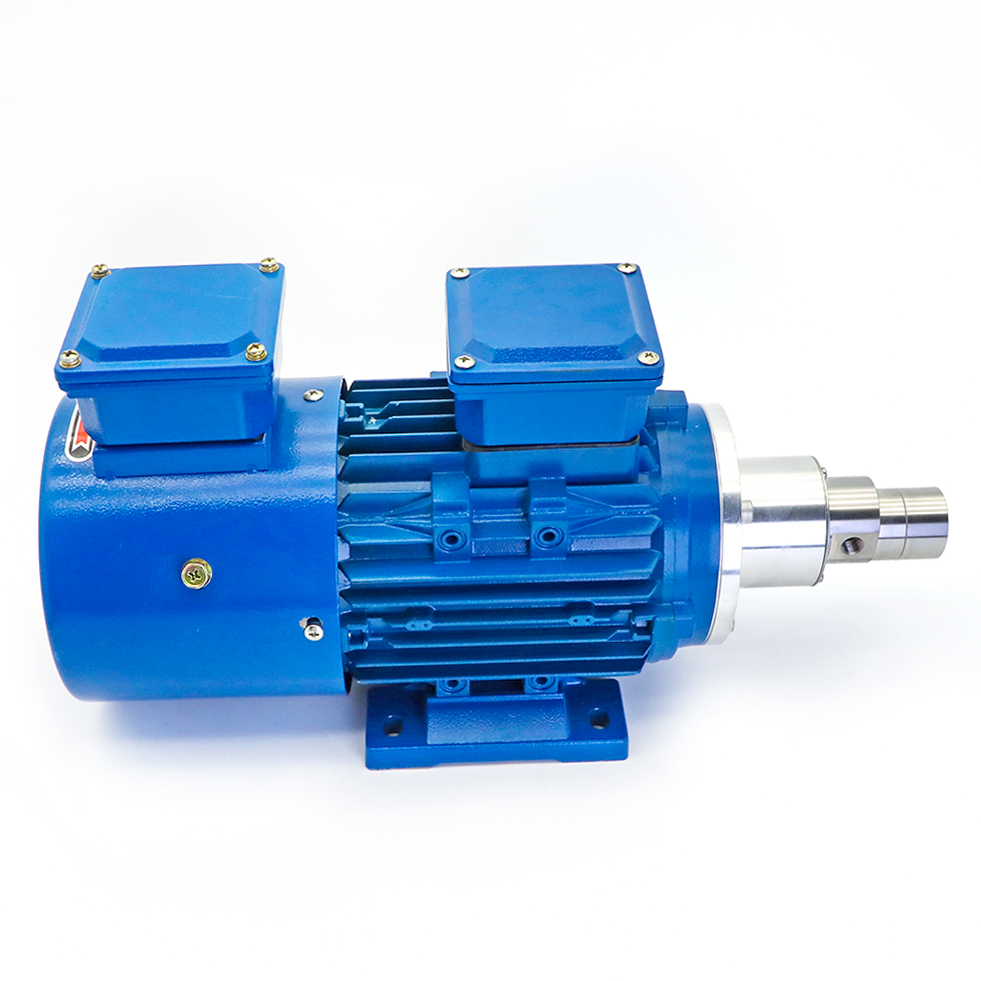

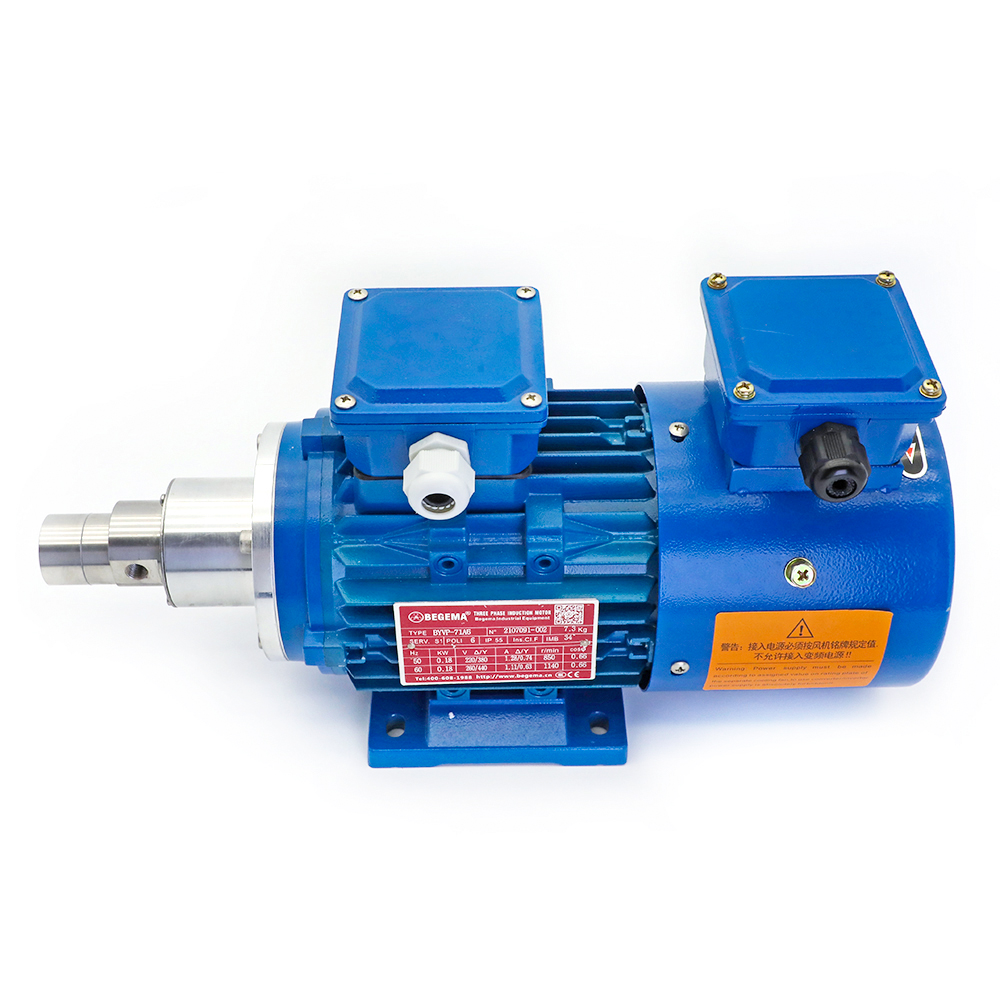

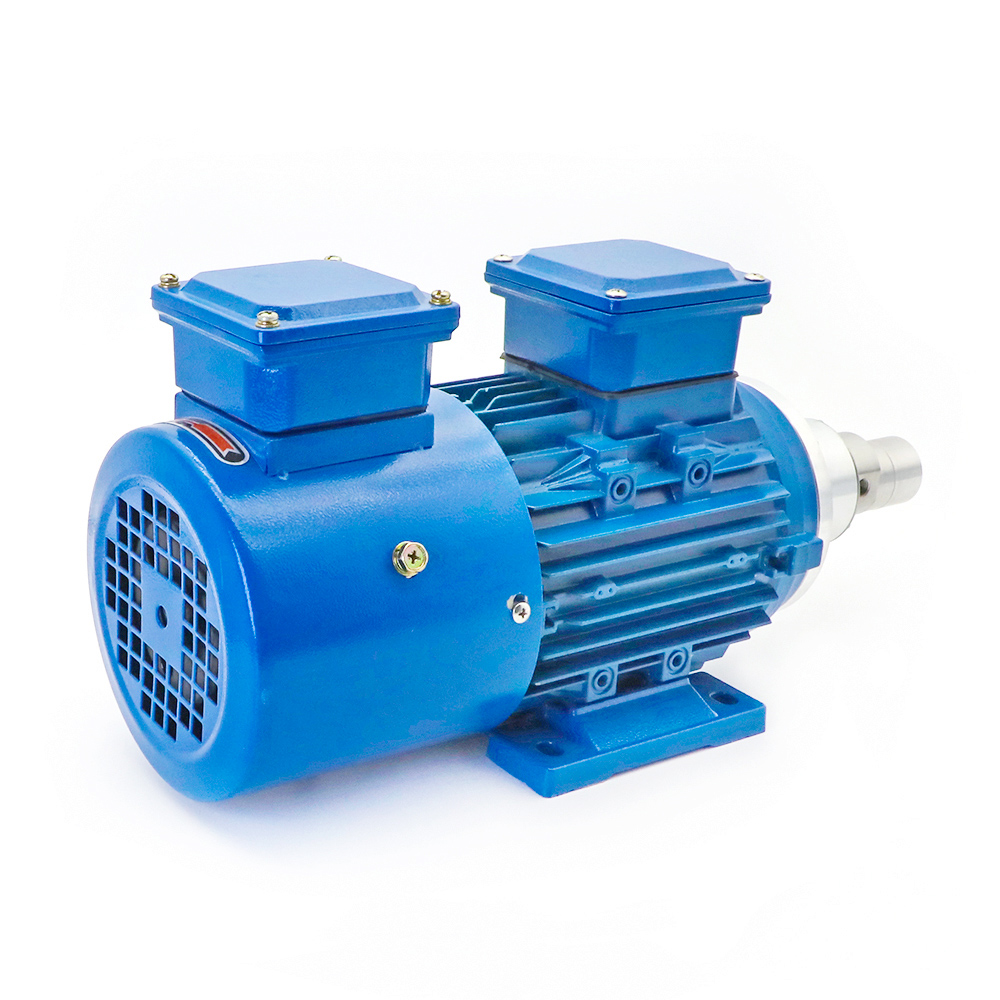

CX Micro Magnetic Drive Gear Pump is made of special reinforced PEEK material for gears and bearings, high-precision ceramic shaft, and injection molded gears; The product has a super long service life and wear resistance, making it an ideal choice for conveying small flow, non pulsating corrosive liquids, abrasive liquids, and high-temperature liquids. The use of gear pumps in flammable and explosive places requires the use of explosion-proof motors/explosion-proof variable frequency motors to drive the gear pump. Configurable frequency converter for motor function control, with speed measurement, adjustable speed and forward/reverse rotation functions The connection of the upper computer can achieve intelligent control, which is suitable for continuous work environments such as liquid canning.

The gears of the pump head are made of PEEK material; The pump body is made of stainless steel 316L, and the other overcurrent materials are 316L. The shaft sleeve is PEEK, and the sealing material is PTFE.

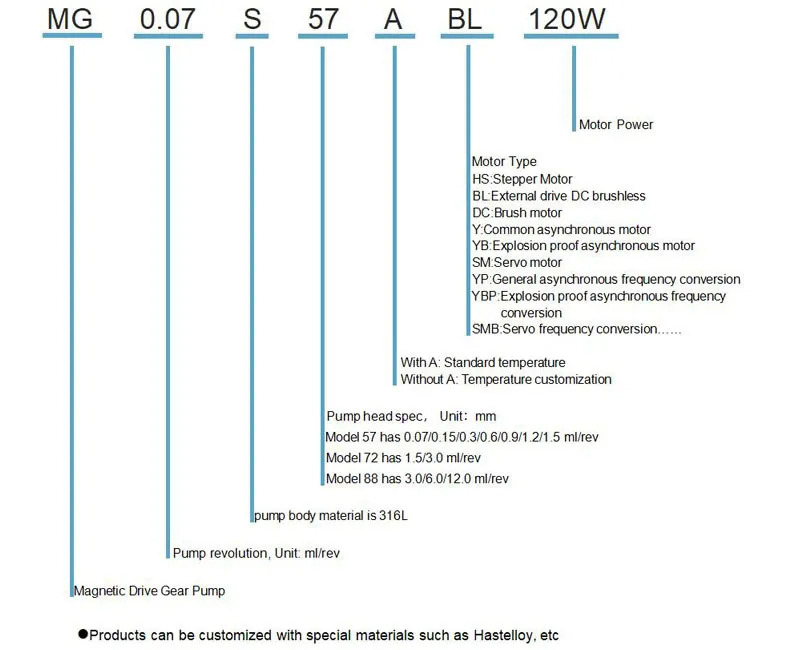

Product Model

Product Parameters

详情-04

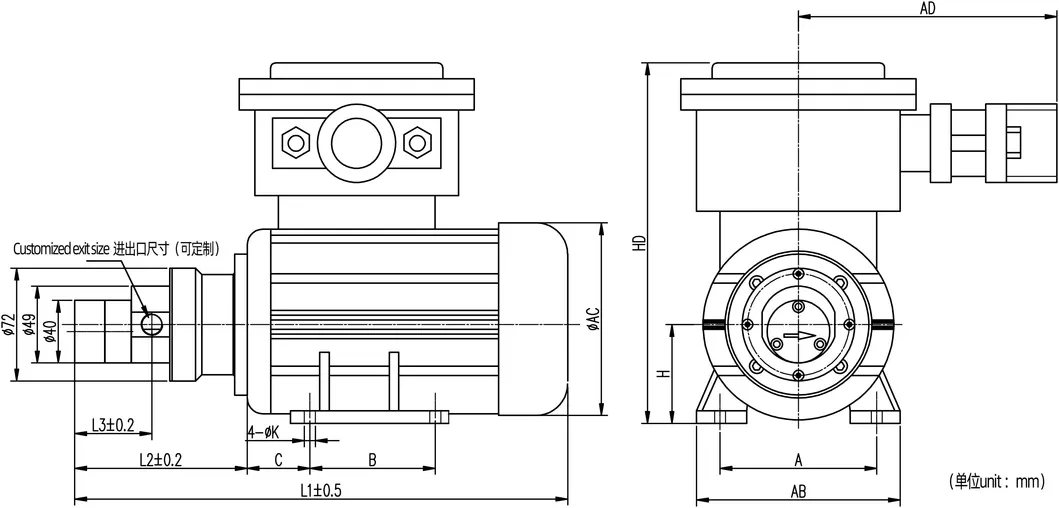

Pump Model	Motor Base	L1	L2	L3	A	AB	H	HD	AD	B
JS1.50S72YB0.18KW	63	366	111	49	100	130	63	230	165	80
JS3.00S72YB0.37KW	71	401	143	66	112	140	71	250	165	90

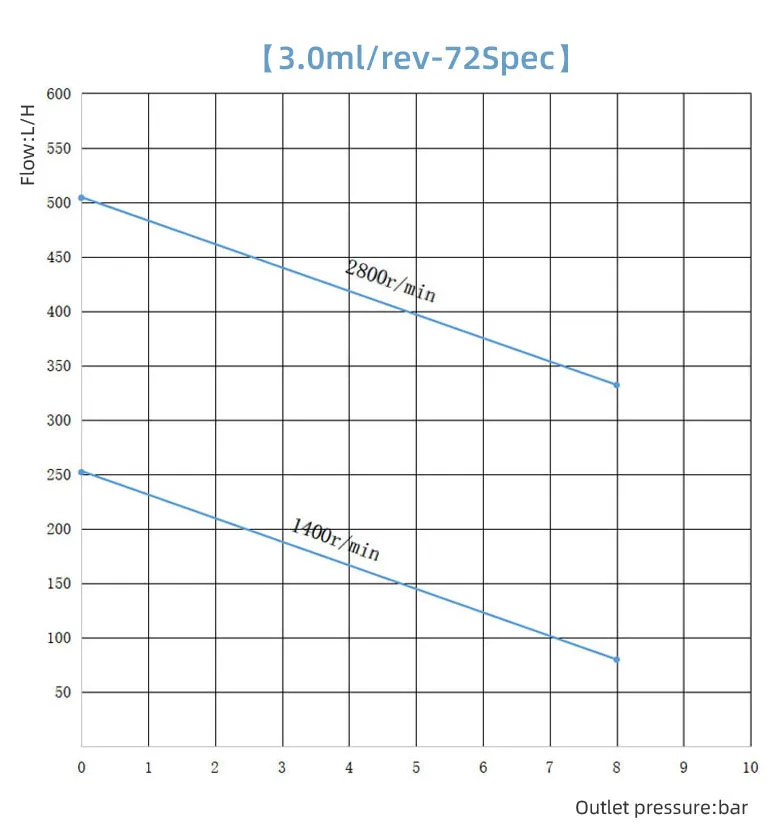

Pump Model	C	K	AC	Weight(kg)	Imp.&Exp. Size	Flow Range(l/h)			temperature range
						2 Pole	4Pole
JS1.50S72YB0.18KW	40	7	130	15.5	G1/4	252		126	-40ºC~50ºC
JS3.00S72YB0.37KW	43	7	145	18.5	G3/8	504		252	-40ºC~40ºC

Motor Parameter
Rated Power	Three-Phase 380V/220V
Rated frequency	50HZ
Protection Level	IP55
EX proof type	Flameproof

The values in this table are for reference only.

Remarks :

OEM service are avaiable according to your request.

The specifications are only for reference, for details checking, please feel free to contact us.

详情-05

详情-06

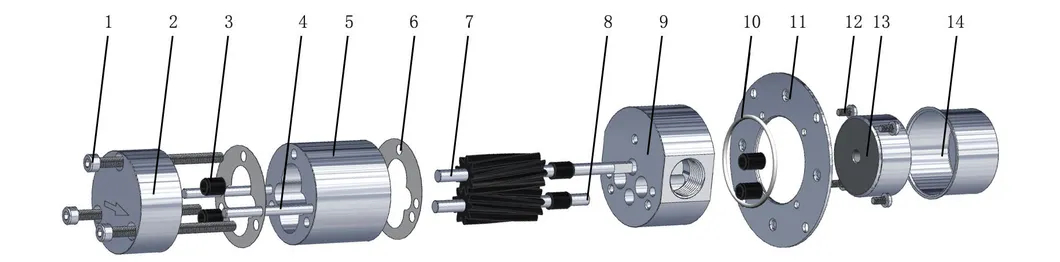

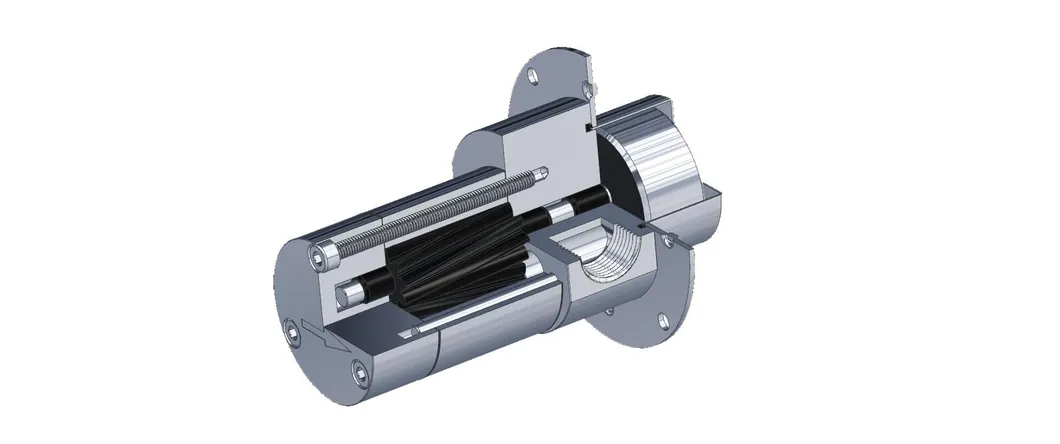

1.Inner-hexagon screw*3 5. Pump body 9. Rear cover 13. Internal magnetic steel
2.Front cover 6. PTFE gasket*2 10. O-ring 14. Isolation cover
3.Shaft sleeve*6 7. Driving gear 11. Platen
4.Pin*2 8. Driven gear 12. Countersunk head screw*4

详情-07

Product Characteristics

No pulse, high precision.

the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.

Stable transmission.

Gear transmission can ensure constant instantaneous transmission ratio.

Zero leakage.

no packing seal or mechanical seal, no wearing parts, using magnetic drive, static seal,truly achieve zero leakage.

Corrosion resistance

304 / 316L, Hastelloy and engineering plastics can be selected as pump body materials,which can be used in most chemical media.

Efficient and convenient, long service life

adopt the way of motor direct drive, reduce the vulnerable parts. High efficiency and energy saving, simple maintenance, low installation cost, long service life.

Applicability.

suitable for high differential pressure, high system pressure and wide range of medium viscosity.

long service life.

The magnetic drive design of the non dynamic seal makes the shaft end no longer need the dynamic seal, which ensures the leakage free operation of the pump. The solid and stable shaft support can ensure the accurate meshing of the gear when the pump is running at high speed, ensure the smooth operation of the pump, the high accuracy of metering and the long service life of the pump.

Diversified drive mode.

magnetic drive gear metering pump can be directly connected with DC brushless motor,2-pole and 4-pole AC motor without reducer. The flow control of the pump can be realized by the controller of AC, DC, brushless DC and other motors. We can provide a variety of standard driving methods to meet the needs of customers.

A wide range of applications.

magnetic drive gear pump in the design, manufacture and application of a large number of use of magnetic drive, pump and motor technology. It has the advantages of no pulsation, long life and no leakage. These advantages make our products widely used in chemical, medical, laboratory, water
