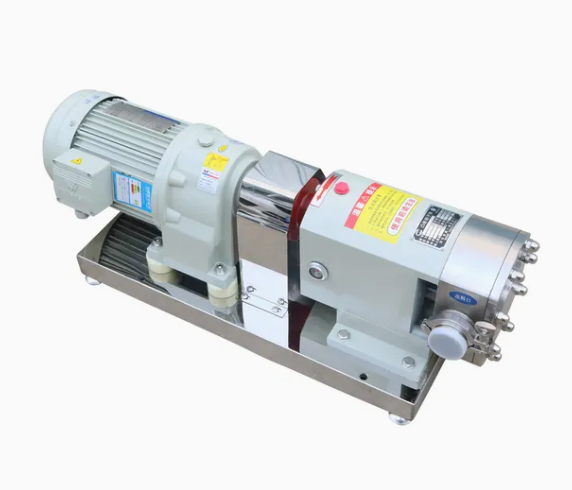

NYP High Viscosity Rotor Pump SS304/SS316 Sanitary Lobe Pump For Honey Chocolate Sauce Slurry Delivery

JUSH-NYP high viscosity internal engaged rotor lobe pump is a rotary positive displacement pump designed for viscous medium transportation. Two synchronously counter-rotating rotors mesh inside the precision machined pump cavity. With periodic volume expansion and contraction, the pump gently traps, conveys and discharges materials to achieve continuous non-pulsating fluid delivery.

This horizontal lobe pump complies with international 3A sanitary standards, supporting single rotor, tri-lobe rotor, butterfly rotor and other customizable rotor structures. The pump body adopts SS304 or SS316 stainless steel as standard material, fitted with FDA-approved EPDM mechanical seals. It handles medium viscosity from 1.0cSt to 300000cSt and medium temperature from -10℃ to 180℃, perfectly meeting sanitary conveying requirements for food, cosmetics, pharmaceuticals and mildly corrosive industrial fluids.

一、Core Product Advantages & Structural Features

1. Pulsation-Free Smooth Conveying, Low Vibration & Low Noise

   Continuous fluid delivery eliminates flow pulsation, small vibration and low running noise. It avoids damage to fragile materials like fruit pulp, yogurt and emulsions during transfer, ensuring stable product quality.

2. Strong Self-Priming Ability & Bidirectional Conveying

   Excellent self-suction performance removes frequent priming operations; the pump supports forward and reverse two-way delivery, convenient for pipeline flushing and material recovery.

3. Linear Speed-Flow Adjustment, Flexible Flow Control

   Rotation speed maintains a linear relationship with flow rate. Users can adjust rotating speed to precisely regulate output flow, with maximum flow reaching 43000L/H to match diversified production line requirements.

4. Premium Sealing Structure, Reliable Anti-Leakage Performance

   Equipped with high-performance mechanical shaft seal; sliding bearing materials including cast iron, copper, graphite and tungsten carbide are optional, effectively blocking medium leakage for clean and mildly corrosive materials.

5. Compact Layout, Convenient Installation & Maintenance

   Adopts true back pull-out design, allowing disassembly and overhaul of internal parts without detaching the whole pump from pipelines. Standard flange and thread dual connection modes, separate pump head supply is available on request. Built-in internal cooling circulation system requires no external cooling equipment.

6. Safe Operation & Customizable Optional Accessories

   Fully enclosed magnetic coupling cavity shields the outer magnet from moisture and external contaminants, supporting outdoor installation. Optional front cover heating jacket and magnetic coupling shield are available. Dynamic axial balancing system reduces axial load, cuts power consumption and extends service life. Standard NdFeB magnet, optional samarium cobalt permanent magnet supports working temperature up to 250℃.

7. Complete Global Authorized Certifications

   Passed CE, ISO, RoHS certification, fully compliant with export standards for European, Southeast Asian, Middle Eastern and other overseas markets.

二、Complete Technical Parameters

• Model No.: JUSH-NYP

• Product Series: High Viscosity Sanitary Rotor Lobe Pump

• Pump Type: Arc Gear Internal Engaged Rotor Pump

• Tooth Form: Herringbone Tooth, Involute Tooth Curve

• Pump Body Material: SS304 / SS316 Stainless Steel (Optional)

• Seal Material: Standard FDA Approved EPDM

• Optional Rotor Shape: Single rotor / Tri-lobe rotor / Butterfly rotor

• Motor Power Range: 0.37kW ~ 22kW

• Input Voltage: 220V / 380V (Customizable)

• Max Flow Rate: 43000 Liter/Hour

• Working Temperature Range: -10℃ ~ 180℃ (High-temperature version up to 250℃)

• Applicable Medium Viscosity: 1.0cSt ~ 300000cSt

• Connection Form: Flange / Thread Quick Connection

• Certifications: CE, ISO, RoHS

• MOQ: 1 PCS

• Brand: JUSH

• Origin: Shanghai, China

• HS Code: 8413709990

• Monthly Production Capacity: 5000 PCS

• Outer Package Dimension: 120cm100cm100cm

• Package Gross Weight: 55kg

三、Wide Application Scenarios

✅ Food & Beverage Industry

Transfer honey, sugar syrup, chocolate paste, jam, cream, yogurt, meat paste, ketchup, edible oil, malt extract, dough and other high-viscosity food materials; widely matched for dairy plants, breweries, bakeries and beverage production lines.

✅ Cosmetics & Daily Care Industry

Convey face cream, lotion, shampoo, toothpaste, essential oil, ointment and various thick cosmetic emulsions, fully satisfying sanitary production standards.

✅ Pharmaceutical Industry

Deliver medicinal ointment, medicinal syrup, pharmaceutical slurry and extraction liquid, sanitary design prevents cross-contamination of pharmaceutical raw materials.

✅ Fine Chemical Industry

Transport resin, latex, paint, adhesive, detergent and other mildly corrosive high-viscosity chemical media, applicable for fine chemical and daily chemical processing factories.

✅ Other Industrial Scenarios

Long-distance pipeline transportation of fermentation broth, printing ink, glue, sludge and other high-viscosity slurry materials.
