JUSH series internal‑engaged arc gear metering pump is a volumetric positive‑displacement dosing pump built with tool‑steel and herringbone cycloid gear structure.
It achieves high metering accuracy up to 0.3% and stable low‑pulsation fluid delivery. Optimized internal clearances make it compatible with high‑viscosity and shear‑sensitive media covering 100‑5000000 cp. The displacement ranges from 0.4‑200 cc/rev, working pressure up to 8MPa, running speed 10‑100 rpm adjustable for different working conditions.
Widely used for hot melt adhesive, PUR, epoxy resin, polyurethane, coating, glue and chemical liquid processing. Common application scenarios include food processing, pharmaceutical filling, chemical dosing, paint coating, melt‑blown and foaming equipment.
CE, ISO, RoHS certifications are available. Custom service is supported to satisfy various industrial quantitative filling and dispensing requirements. One‑year warranty and online after‑sales service are provided.
| Quantity: | |
|---|---|
| PDF Export | |
Internal Gear Pump
JUSH

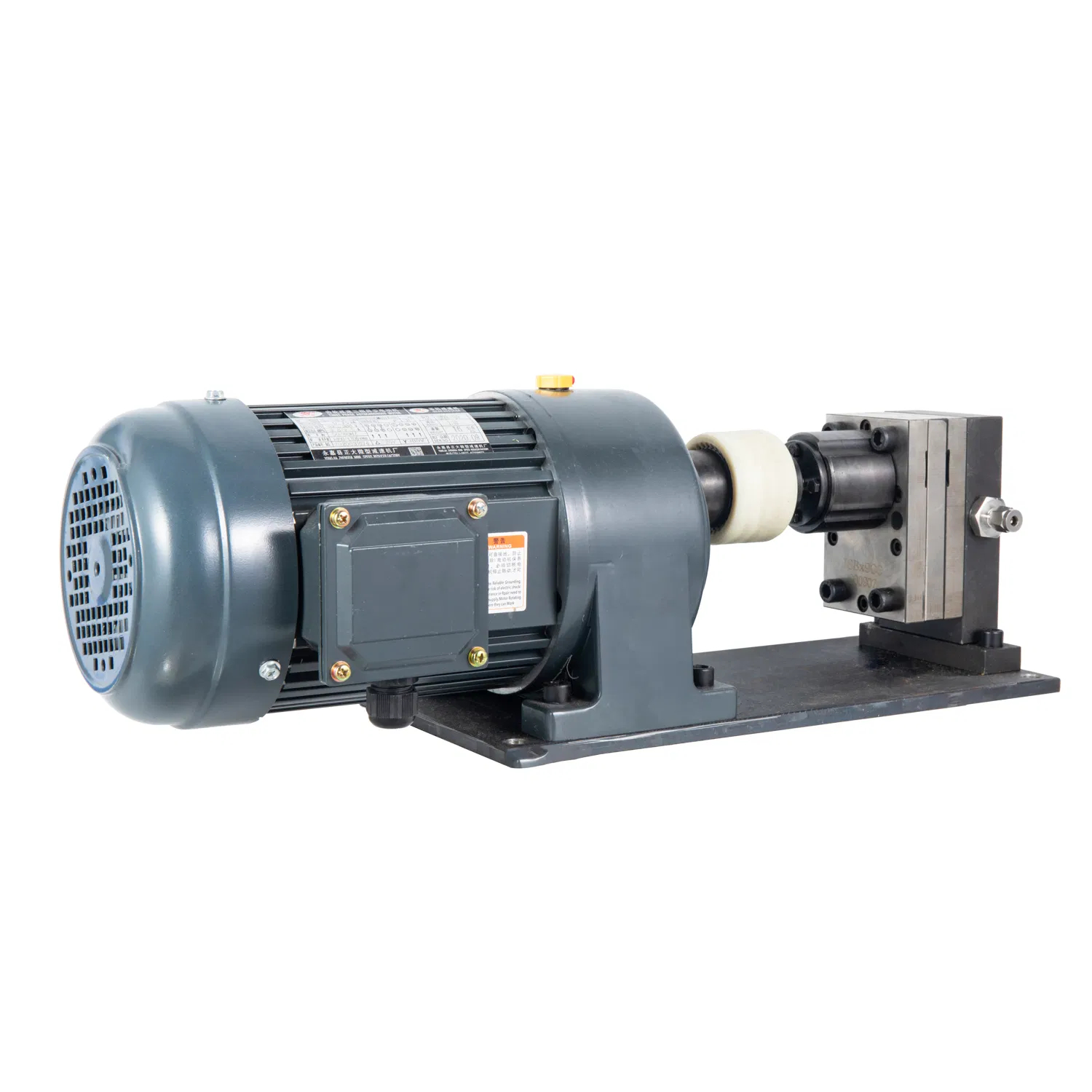

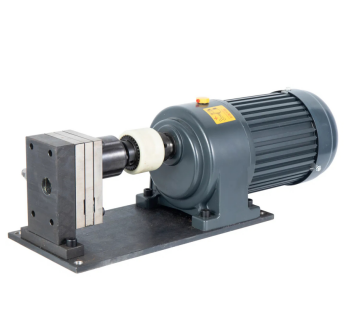

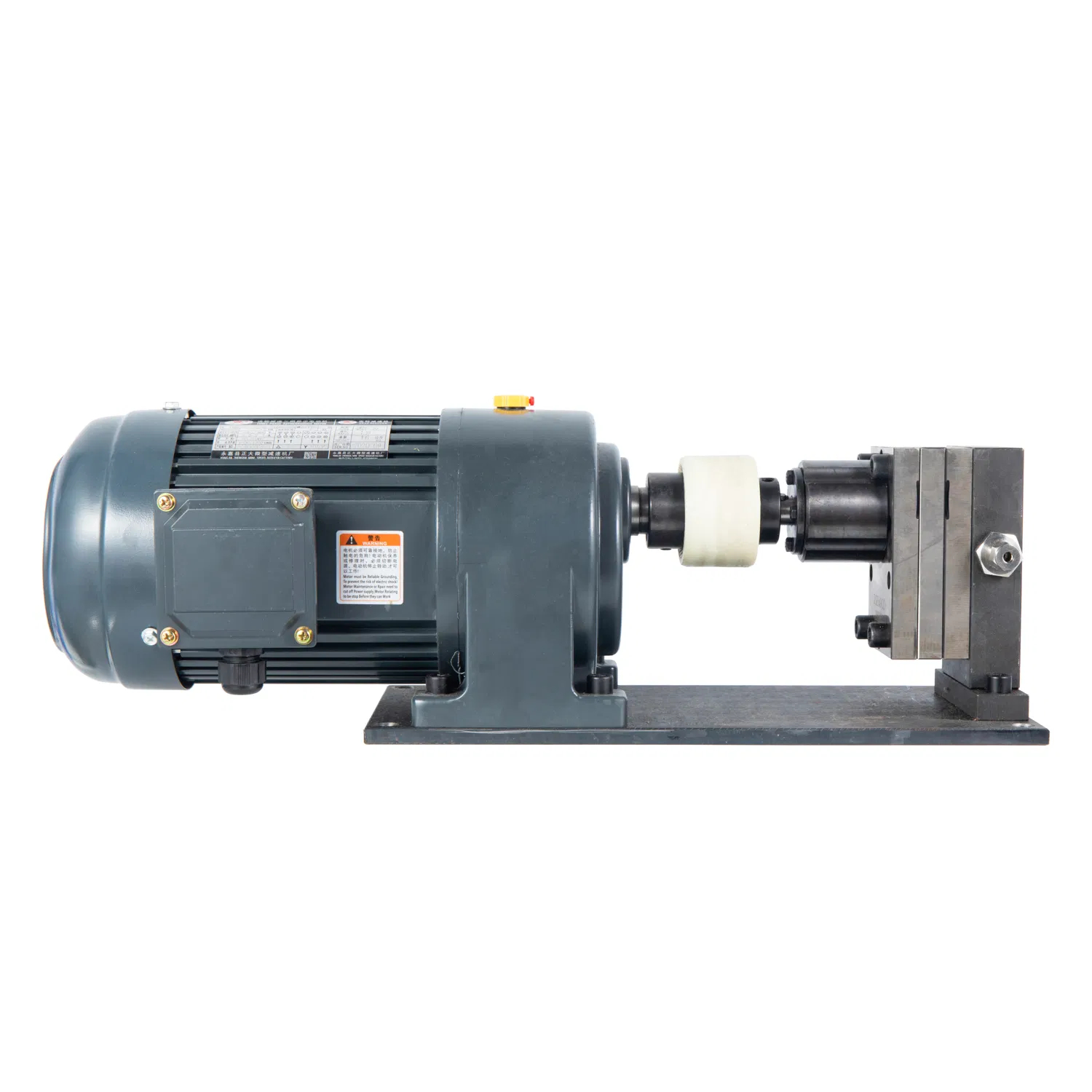

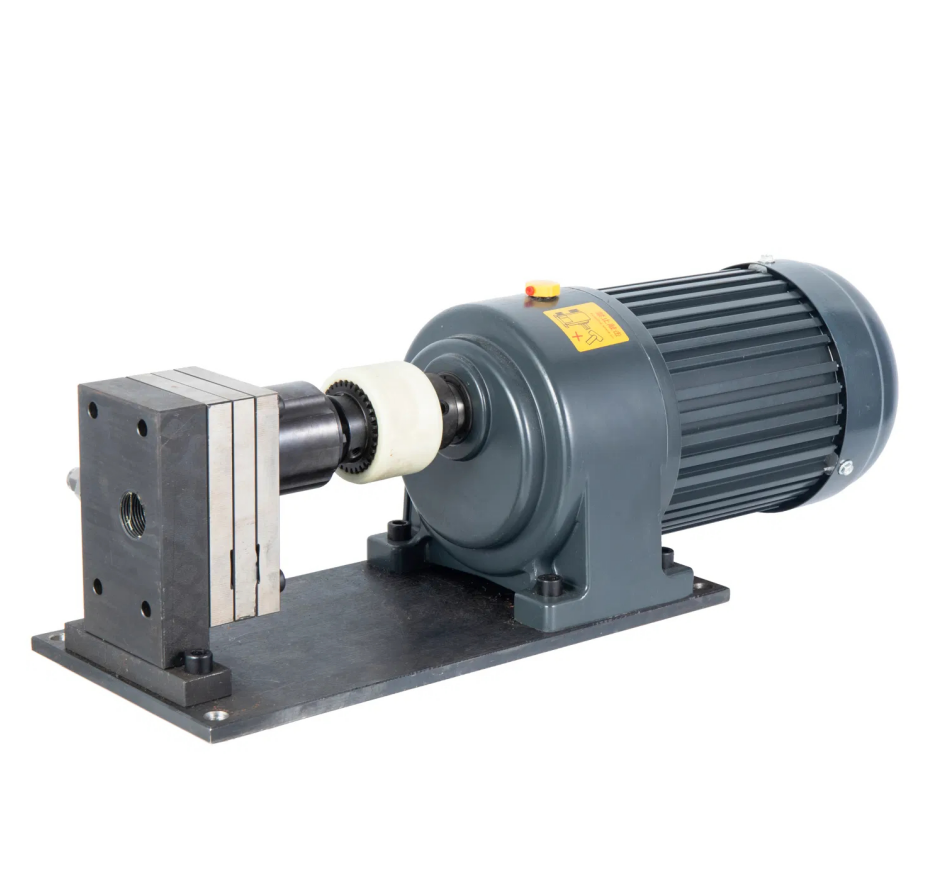

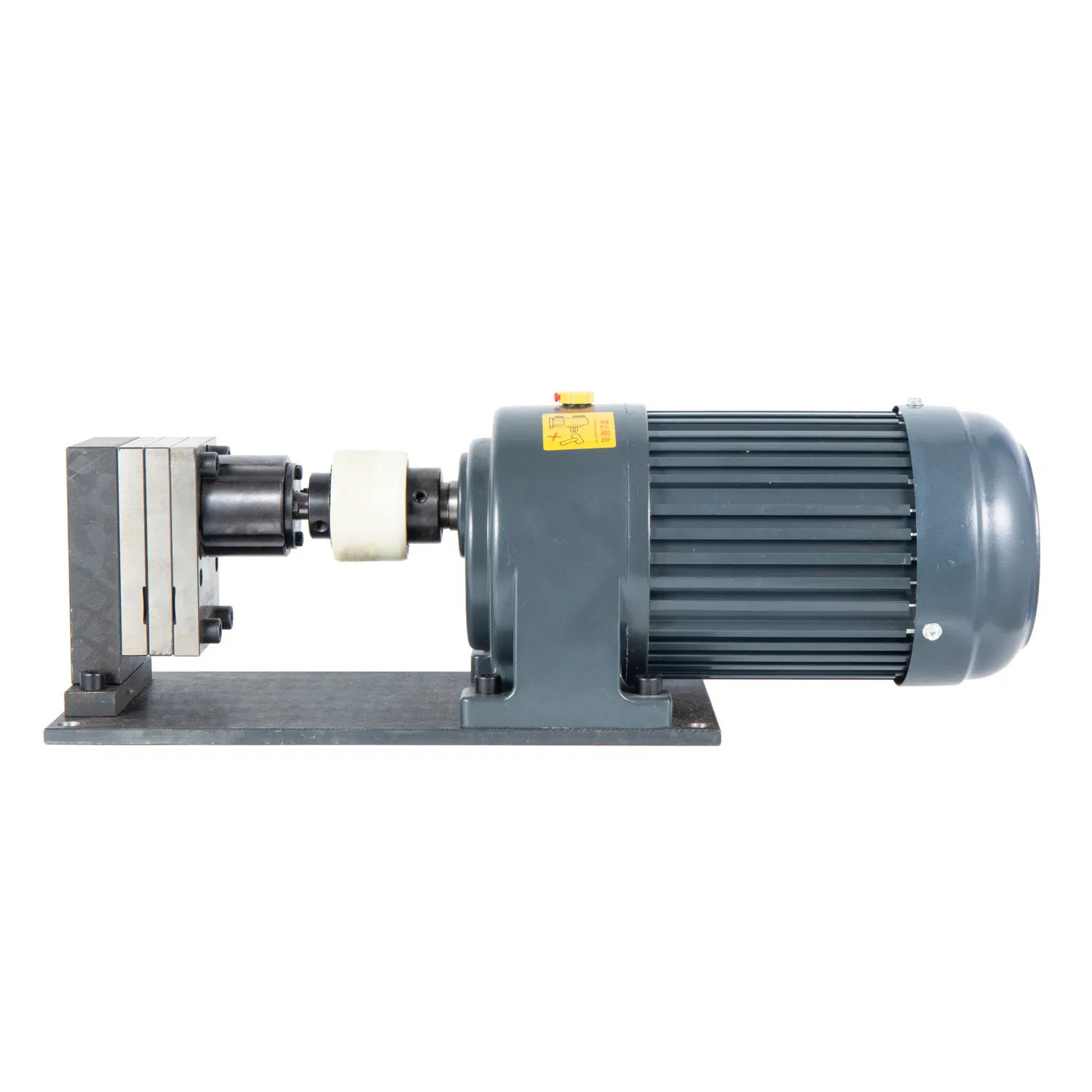

JUSH series internal‑engaged arc gear metering pump is a positive displacement volumetric dosing pump engineered for accurate, stable quantitative fluid transfer. Manufactured from work tool steel with herringbone cycloid gear structure, this industrial metering pump delivers 0.3% metering accuracy and low‑pulsation output. It handles high‑viscosity and shear‑sensitive fluids widely used in hot‑melt adhesive, PUR, epoxy resin, polyurethane, coating, food and pharmaceutical processing. CE, ISO, RoHS certified, with customizable solutions to meet diverse industrial filling and dispensing demands.
✅ Ultra‑high Metering Precision Stable volumetric output with accuracy up to 0.3%. Displacement per revolution remains constant. Adjust rotation speed to control flow rate, realize reliable quantitative addition for continuous or batch production.
✅ Low‑pulsation Stable Delivery Special herringbone cycloid internal gear design greatly reduces fluid pulsation. Optimized internal clearance adapts to differential pressure and medium viscosity, avoiding damage to shear‑friction sensitive raw materials.
✅ Strong Compatibility for High‑viscosity Media Supports wide viscosity range from 100 cp to 5000000 cp. Perfect for glue, foaming agent, adhesive, resin and thick chemical liquids. Suitable for complex working conditions of chemical, new‑material and adhesive industries.
✅ Robust Tool‑steel Construction Adopts durable work tool‑steel material. Wear‑resistant gear and wear plate structure extend service life. Max outlet pressure reaches 8MPa, adapts to high‑pressure industrial dosing circumstances.
✅ Flexible Customization Support Customize displacement, inlet‑outlet size, voltage and mounting structure according to onsite working conditions. Compatible with AC220V / 380V motor drive, matches melt‑blown machines, PU dispensing equipment, foaming machines and filling lines.
Product Name: Gear Metering Pump
Gear Type: Internal‑engaged arc herringbone cycloid gear
Material: Work Tool Steel
Metering Accuracy: 0.3%
Displacement: 0.4‑200 cc/rev
Max Outlet Pressure: ＜8.0 MPa
Applicable Viscosity: 100 ~ 5000000 cp
Working Speed: 10‑100 rpm
Voltage: AC 220V / 380V
Certification: CE, ISO, RoHS
Warranty: 1 Year
Customization: Available
As a volumetric gear dosing pump, it relies on meshing internal gears to finish fluid transmission. Under pressure difference, medium flows into suction chamber. Rotating gears carry liquid medium and deliver it to discharge side. By adjusting motor rotation speed, users can precisely control flow volume and realize quantitative filling and continuous dosing. Adjustable internal gaps ensure high volumetric efficiency for different fluids.
This industrial gear metering pump serves multiple processing industries:
Hot melt & PUR adhesive industry: hot melt glue machine, melt‑blown equipment
Chemical & new‑material: epoxy resin, polyurethane, oleoresin, various high‑viscosity chemical dosing
Coating & paint: coating metering, paint quantitative dispensing
Food & pharmaceutical: food processing, pharmaceutical filling
Foaming equipment: foaming agent quantitative adding, PU dispensing machine
All JUSH gear metering pumps pass CE, ISO and RoHS certification. We provide 1‑year product warranty and online technical after‑sales service. Our engineering team offers custom solution consultation for special medium, pressure and flow requirements.
If you are looking for reliable high‑precision gear metering pump for your high‑viscosity fluid dosing project, send us your working condition including medium viscosity, required flow rate and working pressure. We will provide professional quotation and tailored pumping solution for your production line.
