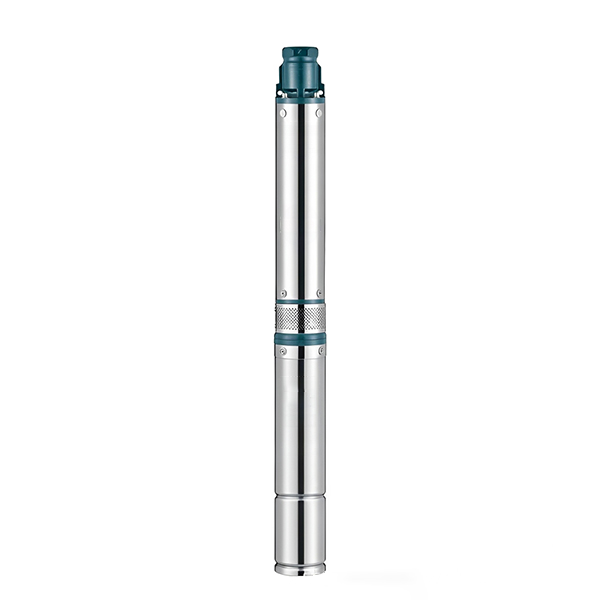

QJ Type Multi-stage Deep Well Submersible Pump

5 0 Reviews

The QJ type multi-stage deep well submersible pump is a water lifting equipment that is directly connected to a motor and a water pump and operates underwater. The deep well pump is suitable for extracting groundwater from deep wells and can also be used for water lifting projects such as rivers, reservoirs, and canals.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Leading deep well water lifting core equipment with advanced technology

The QJ type Multi-stage Deep Well Submersible Pump is a water lifting equipment that is directly connected to a motor and a water pump and operates underwater. The deep well pump is suitable for extracting groundwater from deep wells and can also be used for water lifting projects such as rivers, reservoirs, and canals. It adopts a multi-stage centrifugal pump structure, which generates centrifugal force through impeller rotation to achieve efficient water lifting. Mainly used for irrigation of farmland and water supply for humans and animals in high-altitude mountainous areas, it can also be used for drainage in cities, factories, railways, mines, and construction sites.

Core technological advantages: six dimensions interpret product competitiveness

1. Efficient and energy-saving, reducing operating costs

The QJ pump adopts advanced fluid dynamics design, coupled with high-efficiency water lubricated bearings and precision impellers, reducing energy consumption by 20% -30% compared to traditional pumps. For example, the 100QJ5-220/55 model only requires 7.5kW motor power at a flow rate of 220m ³/h, significantly reducing long-term electricity expenses.

2. Compact structure, easy installation and maintenance

Integrated design: The motor and water pump are directly connected without the need for additional transmission devices. The overall outer diameter is only 95mm-175mm (depending on the model), suitable for various types of well pipes (steel pipes, plastic pipes, and soil wells are all acceptable).

Modular components: Adopting a split type water supply pipe flange connection, installation does not require a pump room, and a single device can be deployed by 1-2 people, saving more than 90% of construction time.

3. Corrosion resistant materials, suitable for harsh environments

The core components (pump casing, impeller, guide housing) are made of 304 stainless steel or polymer composite materials, which can withstand weakly acidic and alkaline water with a pH value of 6.5-8.5 and turbid water sources with a sand content of ≤ 0.01%.

Motor sealing technology: Triple protection (labyrinth sand inhibitor, skeleton oil seal, water lubricated bearings) to prevent sediment intrusion and ensure long-term stable operation of equipment in corrosive environments with chloride ions ≤ 400mg/L.

4. Intelligent control, worry free operation

Automatic start stop function: Built in water level sensor and overload protection module, can automatically adjust the operating status according to changes in dynamic water level, avoiding dry running or overload damage.

Remote monitoring compatibility: Supports integration with PLC systems to achieve real-time monitoring and fault alarm of flow and pressure, suitable for unmanned industrial scenarios.

5. Safe and reliable, with extended lifespan

Multiple protection design: Check valve prevents reverse flow during shutdown, pressure regulating film balances the internal pressure of the motor, and explosion-proof cable joints ensure electrical safety.

Long life bearings: Water lubricated bearings are free from oil pollution and have a maintenance cycle of up to 3-5 years, reducing the risk of downtime.

6. Multi functional adaptation, covering all scene requirements

Wide range of head: The head of a single device can reach 20-300 meters (such as the 175QJ60-2 model supporting a flow rate of 60m ³/h and a head of 20 meters), and multi-stage series connection can be further expanded

Usage conditions: Meet the height requirements of deep wells

Multi-stage Centrifugal Deep Well Pump can operate continuously under the following conditions:

1.A three-phase AC power supply with a rated frequency of 50HZ and a rated voltage of 380 ± 5% V.

2. The inlet of the deep well multi-stage centrifugal pump must be below 1 meter of the dynamic water level, but the diving depth must not exceed 70 meters below the static water level. The distance between the lower end of the motor and the bottom of the well should be at least 1 meter.

3. The water temperature of multi-stage centrifugal pumps in deep wells should generally not exceed 20 ℃

4. Water quality requirements for deep well multi-stage centrifugal pumps:

(1) The sand content in the water shall not exceed 0.01% by weight;

(2) The pH value is in the range of 6.5~8.5;

(3) The chloride ion content shall not exceed 400 milligrams per liter.

5. It is required that the well is aligned, the well wall is smooth, and there should be no staggered well pipes.

Technical Parameters and Selection Guide

Key parameter quick reference table

Model	Flow(m³/h	Head(m)	Power(KW)	Applicable scenarios
100QJ2-50/10	2	50	0.75	Home water well, small vegetable garden
150QJ20-4	20	35	4	Medium sized farmland irrigation
175QJ50-2	50	24	5.5	Mine drainage, industrial circulation

Note: The complete parameter table can be obtained by clicking on the model query tool.

2. Three step selection method

Logging diameter: Measure the inner diameter of the well casing and select a model with a pump body outer diameter of 10-15mm smaller (such as a 95mm pump body for a 100mm well casing).

Requirement setting: Based on the matching parameters of daily water consumption (flow rate) and lifting height (head), reserve 10% -20% redundancy.

Water quality inspection: When the sand content is greater than 0.01% or the chloride ion exceeds the standard, it is necessary to customize wear-resistant coatings or titanium alloy impellers.

Fter sales service and value-added guarantee

Lifetime technical support: providing free installation guidance and remote fault diagnosis.

Standardized supply of accessories: vulnerable parts such as impellers and seals are shipped within 48 hours to reduce downtime losses.

Customized services: Support customization for special needs such as high temperature resistance (≤ 40 ℃) and explosion-proof motors.

Performance Parameter

NO.	Model		Power (KW)		Flow (m³/h)	Head (m)		Single-phase current (A)		three-phase current (A)		Pump length (mm)		Outlet Diameter	Maximum radial size of the unit (mm)
1	100QJ1.5-43/7		0.37		1	48		3.2		/		381		40mm 11/2"	96
					1.5	43
					2.1	34
2	100QJ1.5-59/10		0.55		1	68		4.2		1.6		453		40mm 11/2"	96
					1.5	59
					2.1	48
3	100QJ1.5-81/14		0.75		1	92		5.7		2.5		542		40mm 11/2"	96
					1.5	81
					2.1	78
4	100QJ1.5-119/17		1.1		1	132		7.8		3.2		532		40mm 11/2"	96
					1.5	119
					2.1	96
5	100QJ1.5-160/24		1.5		1	180		10		4.2		719		40mm 11/2"	96
					1.5	160
					2.1	130
6	100QJ1.5-239/34		2.2		1	268		14.2		5.8		979		40mm 11/2"	96
					1.5	239
					2.1	191
7	100QJ4-35/6		0.55		/	/		4.2		1.6		384		40mm 11/2"	96
					3	35
					/	/
8	100QJ4-58/9		0.75		2.5	59		5.7		2.5		464		40mm 11/2"	96
					3	58
					4	49
9	100QJ3-75/11		1.1		2.5	81		7.8		3.2		553		40mm 11/2"	96
					3	75
					4	60
10	100QJ3-103/15		1.5		2.5	110		10		4.2		660		40mm 11/2"	96
					3	103
					4	81
11	100QJ3-145/20		2.2		2.5	152		14.2		5.8		794		40mm 11/2"	96
					3	145
					4	115
12	100QJ3-211/25		3		2.5	223		/		7.3		924		40mm 11/2"	96
					3	211
					4	171
13	100QJ3-274/34		4		2.5	289		/		9.3		1158		40mm 11/2"	96
					3	274
					4	232
14	100QJ4-41/6		0.75		3	43		5.7		2.5		408		40mm 11/2"	96
					4	41
					5	38
15	100QJ4-54/9		1.1		3	58		7.8		3.2		535		40mm 11/2"	96
					4	54
					5	49
16	100QJ4-84/13		1.5		3	90		10		4.2		658		40mm 11/2"	96
					4	84
					5	69
17	100QJ4-107/17		2.2		3	118		14.2		5.8		781		40mm 11/2"	96
					4	107
					5	91
18	100QJ4-163/24		3		3	176		/		7.3		997		40mm 11/2"	96
					4	163
					5	135
19	100QJ4-208/30		4		3	224		/		9.3		1182		40mm 11/2"	96
					4	208
					5	171
20	100QJ4-41/7		1.1		4	48		7.8		3.2		484		40mm 11/2"	96
					6	41
					7	38
21	100QJ6-58/12		1.5		4	64		10		4.2		706		40mm 11/2"	96
					6	58
					7	49
22	100QJ6-88/16		2.2		4	99		14.2		5.8		851		40mm 11/2"	96
					6	88
					7	69
23	100QJ6-119/21		3		4	138		/		7.3		1039		40mm 11/2"	96
					6	119
					7	94
24	100QJ6-151/25		4		4	175		/		9.3		1188		40mm 11/2"	96
					6	151
					7	125
25	100QJ6-210/36		5.5		4	246		/		13.0		1600		40mm 11/2"	96
					6	210
					7	169
26	100QJ6-281/48		7.5		4	320		/		18.0		2049		40mm 11/2"	96
					6	281
					7	230
27	100QJ8-40/9		1.5		5	45		10		4.2		701		50mm 2"	96
					8	40
					10	32
28	100QJ8-58/13		2.2		5	69		14.2		5.8		899		50mm 2"	96
					8	58
					10	45
29	100QJ8-85/17		3		5	100		/		7.3		1096		50mm 2"	96
					8	85
					10	65
30	100QJ8-100/21		4		5	118		/		9.3		1293		50mm 2"	96
					8	100
					10	78
31	100QJ8-142/27		5.5		5	166		/		13.0		1589		50mm 2"	96
					8	142
					10	108
32	100QJ8-185/38		7.5		5	215		/		18.0		2132		50mm 2"	96
					8	185
					10	135
33	100QJ10-27/6		1.5		8	34		10		4.2		572		50mm 2"	96
					10	27
					12	18
34	100QJ10-40/9		2.2		8	51		14.2		5.8		751		50mm 2"	96
					10	40
					12	28
35	100QJ10-58/13		3		8	73		/		7.3		981		50mm 2"	96
					10	58
					12	42
36	100QJ10-75/17		4		8	92		/		9.3		1215		50mm 2"	96
					10	75
					12	52
37	100QJ10-102/21		5.5		8	123		/		13.0		1449		50mm 2"	96
					10	102
					12	73
38	100QJ10-135/27		7.5		8	168		/		18.0		1800		50mm 2"	96
					10	135
					12	100
39	100QJ16-28/8		2.2		/	/		14.2		5.8		780		50mm 2"	96
					16	28
					/	/
40	100QJ16-40/10		3		12	49		/		7.3		918		50mm 2"	96
					16	40
					20	28
41	100QJ16-53/14		4		12	63		/		9.3		1189		50mm 2"	96
					16	53
					20	38
42	100QJ16-71/18		5.5		12	89		/		13.0		1461		50mm 2"	96
					16	71
					20	50
43	100QJ16-99/24		7.5		12	120		/		18.0		1871		50mm 2"	96
					16	99
					20	70
Warning: The 100QJ motor is an oil filled fully enclosed motor and does not require water addition!!

NO.		Model		Flow (m³/h)			Head (m)		Power (KW)		Rated current (A)		Outlet pipe diameter （"）			Maximum radial size of the unit （mm）
1		150QJ5-50		5			50		3		7.9		2			143
2		150QJ5-78		5			78		3		7.9		2			143
3		150QJ5-100		5			100		3		7.9		2			143
4		150QJ5-128		5			128		4		10.26		2			143
5		150QJ5-150		5			150		4		10.26		2			143
6		150QJ5-178		5			178		5.5		13.74		2			143
7		150QJ5-200		5			200		5.5		13.74		2			143
8		150QJ5-228		5			228		7.5		18.5		2			143
9		150QJ5-250		5			250		7.5		18.5		2			143
10		150QJ5-300		5			300		9.2		22.12		2			143
11		150QJ5-350		5			350		13		30.87		2			143
12		150QJ5-400		5			400		13		30.87		2			143
13		150QJ10-50		10			50		3		7.9		2			143
14		150QJ10-78		10			78		4		10.26		2			143
15		150QJ10-95		10			95		5.5		13.74		2			143
16		150QJ10-105		10			105		5.5		13.74		2			143
17		150QJ10-128		10			128		7.5		18.5		2			143
18		150QJ10-150		10			150		7.5		18.5		2			143
19		150QJ10-178		10			178		9.2		22.12		2			143
20		150QJ10-200		10			200		11		26.28		2			143
21		150QJ10-228		10			228		11		26.28		2			143
22		150QJ10-250		10			250		13		30.87		2			143
23		150QJ10-300		10			300		15		35.62		2			143
24		150QJ10-350		10			350		18.5		43.12		2			143
25		150QJ20-33		20			33		3		7.9		2			143
26		150QJ20-39		20			39		4		10.26		2			143
27		150QJ20-52		20			52		5.5		13.74		2			143
28		150QJ20-65		20			65		7.5		18.5		2			143
29		150QJ20-78		20			78		7.5		18.5		2			143
30		150QJ20-81		20			81		9.2		22.12		2			143
31		150QJ20-91		20			91		9.2		22.12		2			143
32		150QJ20-104		20			104		11		26.28		2			143
33		150QJ20-117		20			117		13		30.87		2			143
34		150QJ20-128		20			128		13		30.87		2			143
35		150QJ20-130		20			130		13		30.87		2			143
36		150QJ20-143		20			143		15		35.62		2			143
37		150QJ20-156		20			156		15		35.62		2			143
38		150QJ20-182		20			182		18.5		43.12		2			143
39		150QJ20-182 #		20			182		18.5		43.12		2			143
40		150QJ32-18		32			18		3		7.9		2.5			143
41		150QJ32-27		32			27		4		10.26		2.5			143
42		150QJ32-36		32			36		5.5		13.74		2.5			143
43		150QJ32-45		32			45		7.5		18.5		2.5			143
44		150QJ32-54		32			54		9.2		22.12		2.5			143
45		150QJ32-66		32			66		11		26.28		2.5			143
46		150QJ32-78		32			78		13		30.87		2.5			143
47		150QJ32-84		32			84		13		30.87		2.5			143
48		150QJ32-90		32			90		15		35.62		2.5			143
49		150QJ32-96		32			96		15		35.62		2.5			143
50		150QJ32-108		32			108		18.5		43.12		2.5			143
51		150QJ32-108 #		32			108		18.5		43.12		2.5			143
52		150QJ40-16		40			16		3		7.9		2.5			143
53		150QJ40-24		40			24		5.5		13.74		2.5			143
54		150QJ40-30		40			30		5.5		13.74		2.5			143
55		150QJ40-40		40			40		7.5		18.5		2.5			143
56		150QJ40-48		40			48		9.2		22.12		2.5			143
57		150QJ40-56		40			56		11		26.28		2.5			143
58		150QJ40-64		40			64		13		30.87		2.5			143
59		150QJ40-72		40			72		13		30.87		2.5			143
60		150QJ40-80		40			80		15		35.62		2.5			143
61		150QJ40-96		40			96		18.5		43.12		2.5			143
62		150QJ40-96 #		40			96		18.5		43.12		2.5			143
63		150QJ40-108 #		40			108		22		49.7		2.5			143
64		150QJ50-20		50			20		4		10.26		3			143
65		150QJ50-26		50			26		5.5		13.74		3			143
66		150QJ50-33		50			33		7.5		18.5		3			143
67		150QJ50-40		50			40		9.2		22.12		3			143
68		150QJ50-46		50			46		11		26.28		3			143
69		150QJ50-52		50			52		13		30.87		3			143
70		150QJ50-65		50			65		15		35.62		3			143
71		150QJ50-84		50			84		18.5		43.12		3			143
72		150QJ50-84 #		50			84		18.5		43.12		3			143
73		150QJ50-91 #		50			91		22		49.7		3			143
74		175QJ10-45/3		10			45		3		7.9		2			168
75		175QJ10-60/4		10			60		4		10.26		2			168
76		175QJ10-90/6		10			90		5.5		13.74		2			168
77		175QJ10-105/7		10			105		7.5		18.5		2			168
78		175QJ10-135/9		10			135		9.2		22.12		2			168
79		175QJ10-165/11		10			165		11		26.28		2			168
80		175QJ10-180/12		10			180		13		30.87		2			168
81		175QJ10-210/14		10			210		15		35.62		2			168
82		175QJ10-240/16		10			240		18.5		43.12		2			168
83		175QJ10-270/18		10			270		18.5		43.12		2			168
84		175QJ20-26/2		20			26		3		7.9		2			168
85		175QJ20-39/3		20			39		4		10.26		2			168
86		175QJ20-52/4		20			52		5.5		13.74		2			168
87		175QJ20-65/5		20			65		7.5		18.5		2			168
88		175QJ20-78/6		20			78		7.5		18.5		2			168
89		175QJ20-91/7		20			91		9.2		22.12		2			168
90		175QJ20-104/8		20			104		11		26.28		2			168
91		175QJ20-117/9		20			117		13		30.87		2			168
92		175QJ20-130/10		20			130		13		30.87		2			168
93		175QJ20-143/11		20			143		15		35.62		2			168
94		175QJ20-156/12		20			156		15		35.62		2			168
95		175QJ20-169/13		20			169		18.5		43.12		2			168
96		175QJ20-182/14		20			182		18.5		43.12		2			168
97		175QJ20-195/15		20			195		22		49.7		2			168
98		175QJ20-208/16		20			208		22		49.7		2			168
99		175QJ20-208/16 #		20			208		22		49.7		2			168
100		175QJ20-234/18 #		20			234		25		56.5		2			168
101		175QJ20-247/19 #		20			247		25		56.5		2			168
102		175QJ32-26/2		32			26		4		10.26		2.5			168
103		175QJ32-39/3		32			39		5.5		13.74		2.5			168
104		175QJ32-52/4		32			52		7.5		18.5		2.5			168
105		175QJ32-65/5		32			65		9.2		22.12		2.5			168
106		175QJ32-78/6		32			78		11		26.28		2.5			168
107		175QJ32-91/7		32			91		13		30.87		2.5			168
108		175QJ32-104/8		32			104		15		35.62		2.5			168
109		175QJ32-130/10		32			130		18.5		43.12		2.5			168
110		175QJ32-144/11		32			144		22		49.7		2.5			168
111		175QJ32-169/13		32			169		25		56.5		2.5			168
112		175QJ40-26/2		40			26		5.5		13.74		2.5			168
113		175QJ40-39/3		40			39		7.5		18.5		2.5			168
114		175QJ40-52/4		40			52		9.2		22.12		2.5			168
115		175QJ40-65/5		40			65		11		26.28		2.5			168
116		175QJ40-78/6		40			78		13		30.87		2.5			168
117		175QJ40-91/7		40			91		15		35.62		2.5			168
118		175QJ40-104/8		40			104		18.5		43.12		2.5			168
119		175QJ40-117/9		40			117		22		49.7		2.5			168
120		175QJ40-132/10		40			132		25		56.5		2.5			168
121		175QJ40-144/11		40			144		30		66.6		2.5			168
122		175QJ40-156/12		40			156		30		66.6		2.5			168
123		175QJ50-26/2		50			26		5.5		13.74		3			168
124		175QJ50-39/3		50			39		7.5		18.5		3			168
125		175QJ50-52/4		50			52		11		26.28		3			168
126		175QJ50-65/5		50			65		15		35.62		3			168
127		175QJ50-78/6		50			78		18.5		43.12		3			168
128		175QJ50-91/7		50			91		18.5		43.12		3			168
129		175QJ50-104/8		50			104		22		49.7		3			168
130		175QJ50-117/9		50			117		25		56.5		3			168
131		175QJ50-130/10		50			130		30		66.6		3			168
132		175QJ50-144/11		50			144		37		82.1		3			168
133		175QJ50-156/12		50			156		37		82.1		3			168
134		175QJ50-156/12 #		50			156		37		82.1		3			168
135		175QJ63-22/2		63			22		7.5		18.5		3			168
136		175QJ63-33/3		63			33		9.2		22.12		3			168
137		175QJ63-44/4		63			44		13		30.87		3			168
138		175QJ63-55/5		63			55		15		35.62		3			168
139		175QJ63-66/6		63			66		18.5		43.12		3			168
140		175QJ63-77/7		63			77		22		49.7		3			168
141		175QJ63-88/8		63			88		25		56.5		3			168
142		175QJ63-99/9		63			99		30		66.6		3			168
143		175QJ63-132/11		63			132		37		82.1		3			168
144		175QJ63-132/11 #		63			132		37		82.1		3			168
145		175QJ80-22/2		80			22		7.5		18.5		4			168
146		175QJ80-33/3		80			33		11		26.28		4			168
147		175QJ80-44/4		80			44		15		35.62		4			168
148		175QJ80-55/5		80			55		18.5		43.12		4			168
149		175QJ80-66/6		80			66		22		49.7		4			168
150		175QJ80-77/7		80			77		25		56.5		4			168
151		175QJ80-88/8		80			88		30		66.6		4			168
152		175QJ80-99/9		80			99		37		82.1		4			168
153		175QJ80-99/9 #		80			99		37		82.1		4			168
154		200QJ20-40/3		20			40		4		10.26		2			184
155		200QJ20-54/4		20			54		5.5		13.74		2			184
156		200QJ20-67/5		20			67		7.5		18.5		2			184
157		200QJ20-81/6		20			81		7.5		18.5		2			184
158		200QJ20-93/7		20			93		9.2		22.12		2			184
159		200QJ20-108/8		20			108		11		26.28		2			184
160		200QJ20-121/9		20			121		13		30.87		2			184
161		200QJ20-130/10		20			133		13		30.87		2			184
162		200QJ20-148/11		20			148		15		35.62		2			184
163		200QJ20-162/12		20			162		18.5		43.12		2			184
164		200QJ20-175/13		20			175		18.5		43.12		2			184
165		200QJ20-202/15		20			202		22		49.7		2			184
166		200QJ20-243/18 #		20			243		25		56.5		2.5			184
167		200QJ20-270/20 #		20			270		30		66.6		2.5			184
168		200QJ32-26/2		32			26		4		10.26		2.5			184
169		200QJ32-39/3		32			39		5.5		13.74		2.5			184
170		200QJ32-52/4		32			52		7.5		18.5		2.5			184
171		200QJ32-65/5		32			65		11		26.28		2.5			184
172		200QJ32-78/6		32			78		11		26.28		2.5			184
173		200QJ32-91/7		32			91		13		30.87		2.5			184
174		200QJ32-104/8		32			104		15		35.62		2.5			184
175		200QJ32-130/10		32			130		18.5		43.12		2.5			184
176		200QJ32-143/11		32			143		22		49.7		2.5			184
177		200QJ32-156/12		32			156		25		56.5		2.5			184
178		200QJ32-182/14 #		32			182		30		66.6		2.5			184
179		200QJ32-195/15 #		32			195		30		66.6		2.5			184
180		200QJ32-234/18 #		32			234		37		82.1		2.5			184
181		200QJ32-247/19 #		32			247		37		82.1		2.5			184
182		200QJ32-260/20 #		32			260		45		96.9		2.5			184
183		200QJ40-26/2		40			26		5.5		13.74		2.5			184
184		200QJ40-39/3		40			39		7.5		18.5		2.5			184
185		200QJ40-52/4		40			52		9.2		22.12		2.5			184
186		200QJ40-65/5		40			65		11		26.28		2.5			184
187		200QJ40-78/6		40			78		15		35.62		2.5			184
188		200QJ40-91/7		40			91		18.5		43.12		2.5			184
189		200QJ40-104/8		40			104		18.5		43.12		2.5			184
190		200QJ40-117/9		40			117		22		49.7		2.5			184
191		200QJ40-143/11		40			143		25		56.5		2.5			184
192		200QJ40-169/13		40			169		30		66.6		2.5			184
193		200QJ40-182/14 #		40			182		37		82.1		2.5			184
194		200QJ50-13/1		50			13		4		10.26		3			184
195		200QJ50-26/2		50			26		5.5		13.74		3			184
196		200QJ50-39/3		50			39		7.5		18.5		3			184
197		200QJ50-52/4		50			52		11		26.28		3			184
198		200QJ50-65/5		50			65		15		35.62		3			184
199		200QJ50-78/6		50			78		18.5		43.12		3			184
200		200QJ50-91/7		50			91		22		49.7		3			184
201		200QJ50-104/8		50			104		25		56.5		3			184
202		200QJ50-130/10		50			130		30		66.6		3			184
203		200QJ50-156/12 #		50			156		37		82.1		3			184
204		200QJ50-195/15 #		50			195		45		96.9		3			184
205		200QJ63-12/1		63			12		4		10.26		3			184
206		200QJ63-24/2		63			24		7.5		18.5		3			184
207		200QJ63-36/3		63			36		11		26.28		3			184
208		200QJ63-48/4		63			48		15		35.62		3			184
209		200QJ63-60/5		63			60		18.5		43.12		3			184
210		200QJ63-72/6		63			72		22		49.7		3			184
211		200QJ63-84/7		63			84		25		56.5		3			184
212		200QJ63-108/9		63			108		30		66.6		3			184
213		200QJ63-120/10 #		63			120		37		82.1		3			184
214		200QJ63-144/12 #		63			144		45		96.9		3			184
215		200QJ80-11/1		80			11		4		10.26		4			184
216		200QJ80-22/2		80			22		7.5		18.5		4			184
217		200QJ80-33/3		80			33		11		26.28		4			184
218		200QJ80-44/4		80			44		15		35.62		4			184
219		200QJ80-55/5		80			55		18.5		43.12		4			184
220		200QJ80-66/6		80			66		22		49.7		4			184
221		200QJ80-77/7		80			77		30		66.6		4			184
222		200QJ80-88/8		80			88		37		82.1		4			184
223		200QJ80-99/9		80			99		37		82.1		4			184
224		200QJ80-121/11 #		80			121		45		96.9		4			184
225		200QJ100-18/1		100			18		9.2		22.12		4			184
226		200QJ100-27/3		100			27		13		30.87		4			184
227		200QJ100-36/4		100			36		18.5		43.12		4			184
228		200QJ100-45/5		100			45		22		49.7		4			184
229		200QJ100-54/6		100			54		25		56.5		4			184
230		200QJ100-63/7		100			63		30		66.6		4			184
231		200QJ100-72/8		100			72		37		82.1		4			184
232		200QJ100-90/9		100			90		45		96.9		4			184
233		250QJ32-138/6		32			138		22		49.7		2.5			233
234		250QJ32-161/7		32			161		25		56.5		2.5			233
235		250QJ32-184/8		32			184		30		66.6		2.5			233
236		250QJ32-207/9		32			207		37		82.1		2.5			233
237		250QJ32-230/10		32			230		37		82.1		2.5			233
238		250QJ32-253/11		32			253		45		96.9		2.5			233
239		250QJ32-276/12		32			276		45		96.9		2.5			233
240		250QJ32-300/13		32			300		55		117.0		2.5			233
241		250QJ32-322/14		32			322		55		117.0		2.5			233
242		250QJ32-345/15		32			345		63		125.8		3			233
243		250QJ50-80/4		50			80		18.5		43.12		3			233
244		250QJ50-100/5		50			100		22		49.7		3			233
245		250QJ50-120/6		50			120		25		56.5		3			233
246		250QJ50-140/7		50			140		37		82.1		3			233
247		250QJ50-160/8		50			160		37		82.1		3			233
248		250QJ50-180/9		50			180		45		96.9		3			233
249		250QJ50-200/10		50			200		45		96.9		3			233
250		250QJ50-220/11		50			220		55		117.0		3			233
251		250QJ50-240/12		50			240		55		117.0		3			233
252		250QJ50-260/13		50			260		63		125.8		3			233
253		250QJ50-280/14		50			280		63		125.8		3			233
254		250QJ80-60/3		80			60		22		49.7		4			233
255		250QJ80-80/4		80			80		30		66.6		4			233
256		250QJ80-100/5		80			100		37		82.1		4			233
257		250QJ80-120/6		80			120		45		96.9		4			233
258		250QJ80-140/7		80			140		55		117.0		4			233
259		250QJ80-160/8		80			160		55		117.0		4			233
260		250QJ80-180/9		80			180		63		125.8		4			233
261		250QJ80-200/10		80			200		75		149.6		4			233
262		250QJ80-260/13		80			260		90		182.8		4			233
263		250QJ80-280/14		80			280		110		223.4		4			233
264		250QJ100-18/1		100			18		7.5		18.5		4			233
265		250QJ100-36/2		100			36		15		35.62		4			233
266		250QJ100-54/3		100			54		25		56.5		4			233
267		250QJ100-72/4		100			72		30		66.6		4			233
268		250QJ100-90/5		100			90		37		82.1		4			233
269		250QJ100-108/6		100			108		45		96.9		4			233
270		250QJ100-126/7		100			126		55		117.0		4			233
271		250QJ100-144/8		100			144		63		125.8		4			233
272		250QJ100-162/9		100			162		75		149.6		4			233
273		250QJ100-180/10		100			180		90		182.8		4			233
274		250QJ100-198/11		100			198		90		182.8		4			233
275		250QJ100-216/12		100			216		110		223.4		4			233
276		250QJ100-234/13		100			234		110		223.4		4			233
277		250QJ125-16/1		125			16		9.2		22.12		5			233
278		250QJ125-32/2		125			32		18.5		43.12		5			233
279		250QJ125-48/3		125			48		25		56.5		5			233
280		250QJ125-64/4		125			64		37		82.1		5			233
281		250QJ125-80/5		125			80		45		96.9		5			233
282		250QJ125-96/6		125			96		55		117.0		5			233
283		250QJ125-112/7		125			112		63		125.8		5			233
284		250QJ125-128/8		125			128		75		149.6		5			233
285		250QJ125-144/9		125			144		90		182.8		5			233
286		250QJ125-160/10		125			160		90		182.8		5			233
287		250QJ125-176/11		125			176		110		223.4		5			233
288		250QJ140-15/1		140			15		11		26.28		5			233
289		250QJ140-30/2		140			30		18.5		43.12		5			233
290		250QJ140-45/3		140			45		30		66.6		5			233
291		250QJ140-60/4		140			60		37		82.1		5			233
292		250QJ140-75/5		140			75		45		96.9		5			233
293		250QJ140-90/6		140			90		55		117.0		5			233
294		250QJ140-105/7		140			105		63		125.8		5			233
295		250QJ140-120/8		140			120		75		149.6		5			233
296		250QJ140-135/9		140			135		90		182.8		5			233
297		250QJ140-150/10		140			150		90		182.8		5			233
298		250QJ140-165/11		140			165		110		223.4		5			233
299		250QJ140-180/12		140			180		110		223.4		5			233
300		250QJ160-15/1		160			15		11		26.28		5			233
301		250QJ160-30/2		160			30		22		49.7		5			233
302		250QJ160-45/3		160			45		37		82.1		5			233
303		250QJ160-60/4		160			60		45		96.9		5			233
304		250QJ160-75/5		160			75		55		117.0		5			233
305		250QJ160-90/6		160			90		63		125.8		5			233
306		250QJ160-105/7		160			105		75		149.6		5			233
307		250QJ160-120/8		160			120		90		182.8		5			233
308		250QJ160-135/9		160			135		90		182.8		5			233
309		250QJ160-150/10		160			150		110		223.4		5			233
310		250QJ200-20/1		200			20		18.5		43.12		5			233
311		250QJ200-40/2		200			40		37		82.1		5			233
312		250QJ200-60/3		200			60		55		117.0		5			233
313		250QJ200-80/4		200			80		75		149.6		5			233
314		250QJ200-100/5		200			100		90		182.8		5			233
315		300QJ200-20/1		200			20		18.5		43.12		5			281
316		300QJ200-40/2		200			40		37		82.1		5			281
317		300QJ200-60/3		200			60		55		117.0		5			281
318		300QJ200-80/4		200			80		75		149.6		5			281
319		300QJ200-100/5		200			100		90		182.8		5			281
320		300QJ200-120/6		200			120		110		223.4		5			281
321		300QJ230-20/1		230			20		22		49.7		6			281
322		300QJ230-40/2		230			40		45		96.9		6			281
323		300QJ230-60/3		230			60		75		149.6		6			281
324		300QJ230-80/4		230			80		90		182.8		6			281
325		300QJ230-100/5		230			100		110		223.4		6			281
326		350QJ320-20/1		320			20		30		66.6		8			330
327		350QJ320-30/1		320			30		45		96.9		8			330
328		350QJ320-40/2		320			40		63		125.8		8			330
329		350QJ320-50/2		320			50		75		149.6		8			330
330		350QJ320-60/2		320			60		90		182.8		8			330
331		350QJ320-70/3		320			70		110		223.4		8			330
332		350QJ320-80/3		320			80		125		249.5		8			330
333		350QJ320-90/3		320			90		140		277.8		8			330

QJ Type Multi-stage Deep Well Submersible Pump

OUR COMPANY

QUICK LINKS

PRODUCT CATEGORY

CONTACT US
