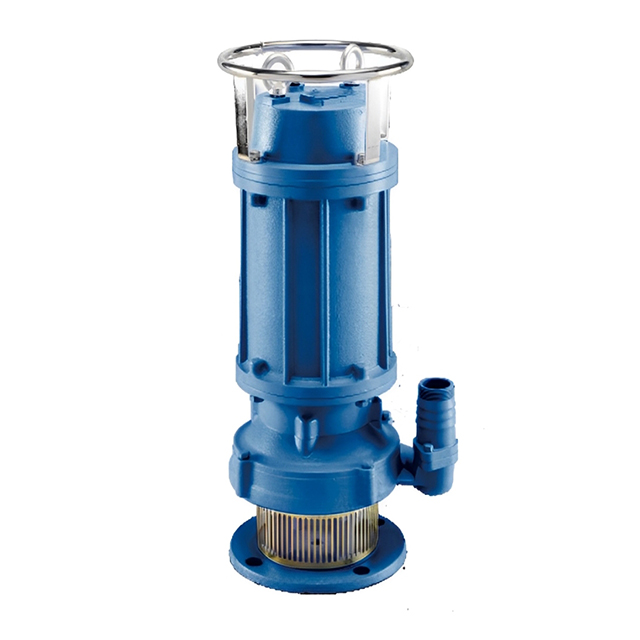

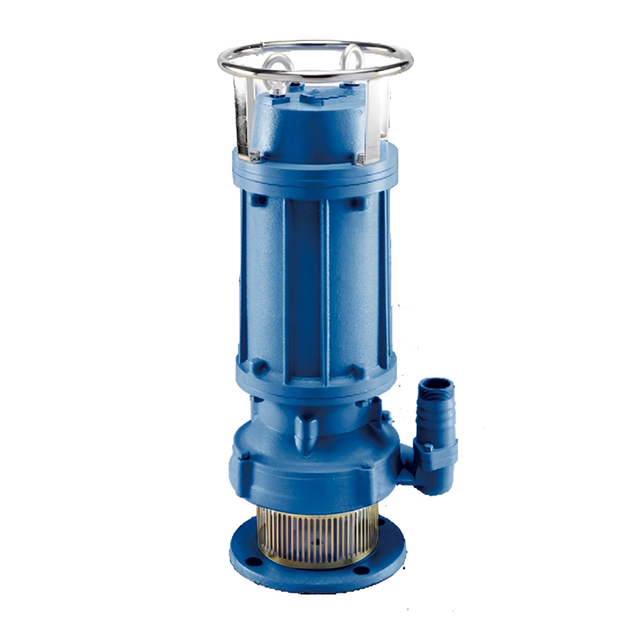

The QX series is a vertical, fully submersible sewage pump developed for pumping contaminated liquids with suspended solids, sludge, or fibrous materials. These pumps are widely used in urban sewage treatment, industrial wastewater discharge, building drainage systems, and agricultural irrigation.
Compared to traditional sewage pumps, QX submersible pumps operate while fully submerged in the water, ensuring minimal noise, compact installation, and excellent cooling for the motor.
Fully Submersible Motor DesignThe motor and pump share the same housing and are completely submersible, ensuring stable performance in submerged conditions.
Corrosion and Rust Resistance
Constructed from high-quality stainless steel or cast iron (depending on model), ensuring longevity in corrosive and chemically aggressive environments.
Compact Structure
The vertical design requires minimal floor space and is ideal for confined pits or tanks.
Non-Clog Impeller
Designed with a vortex or single/double-channel impeller, enabling it to pass solids and fibrous waste without clogging.
Overheat and Overload Protection
Built-in thermal protection prevents motor damage from overheating, ensuring safe long-term operation.
Automatic Float Switch (optional)
For automatic start/stop based on water levels, improving energy efficiency and reducing labor.
Easy Installation and Maintenance
Plug-and-play setup with minimal maintenance needs due to its submerged, self-priming configuration.
QX Submersible Sewage Pumps are designed for a wide range of waste handling and drainage scenarios:
Municipal Wastewater Treatment Plants
Residential Sewage Drainage Systems
Industrial Effluent Discharge
Flood Water Drainage
Agricultural Irrigation and Slurry Transfer
Construction Site Dewatering
Septic Tank Sewage Pumping
Underground Garage Drainage
Public Facilities (toilets, parks, schools)
Whether it’s domestic wastewater from homes or complex industrial effluents, QX pumps handle the challenge efficiently.
Working Principle of QX Submersible Sewage Pump
The QX submersible sewage pump works on centrifugal pumping principles. When the pump is powered on and submerged in water, the impeller rotates, generating centrifugal force that pushes water from the pump’s inlet to the outlet. Due to its submersible nature, the pump eliminates the need for external priming and offers silent, efficient operation.
Model | Power Range | Flow Rate | Head Range | Voltage | Solid Passage |
QX1.5-16-0.37 | 0.37 kW | 1.5 m³/h | 16 m | 220V/380V | ≤15 mm |
QX10-7-0.75 | 0.75 kW | 10 m³/h | 7 m | 220V/380V | ≤25 mm |
QX15-8-1.1 | 1.1 kW | 15 m³/h | 8 m | 220V/380V | ≤30 mm |
QX25-10-2.2 | 2.2 kW | 25 m³/h | 10 m | 380V | ≤35 mm |
Note: Custom voltage, impeller material, and float switch options available on request.
Thanks to its robust motor and efficient impeller, the QX pump offers dependable operation even under challenging conditions.
The optimized hydraulic components reduce power consumption, lowering operational costs.
With no need for priming and simple submerged design, maintenance is significantly minimized.
Submersible design helps reduce noise and vibration, making it suitable for residential areas.
Available in various power ratings, flow/head combinations, and material options to suit specific project needs.
Installation Tips
Ensure the power supply matches the pump’s rated voltage and frequency.
Install a check valve to prevent backflow.
If operating automatically, use a float switch to prevent dry running.
Secure proper grounding and waterproof cable joints.
Regularly inspect the impeller and motor for blockage or wear.
Annually: Replace seals and lubricants if needed.
Maintaining your QX submersible sewage pump ensures longer service life and safer operation.
If you're looking for a cost-effective, durable, and powerful submersible pump for sewage or wastewater, the QX pump is your best choice. Contact us today for specifications, pricing, and customization options!
