A rotary lobe pump is a highly efficient positive displacement pump ideal for viscous fluids. This guide explains how rotary pumps work, their key benefits, various types (gear, lobe, progressive cavity), and applications across industries. Find expert tips for selection and maintenance.
In the world of industrial fluid handling, managing viscous, sensitive, or abrasive fluids requires a specific kind of pump. Rotary Lobe Pumps, a class of positive displacement pumps, are engineered for this exact purpose. Renowned for their efficiency, steady flow, and handling capabilities, they are critical in industries from food and beverage to chemicals. This in-depth guide will explore how rotary pumps work, their advantages, different types, and how to select the right one for your application.

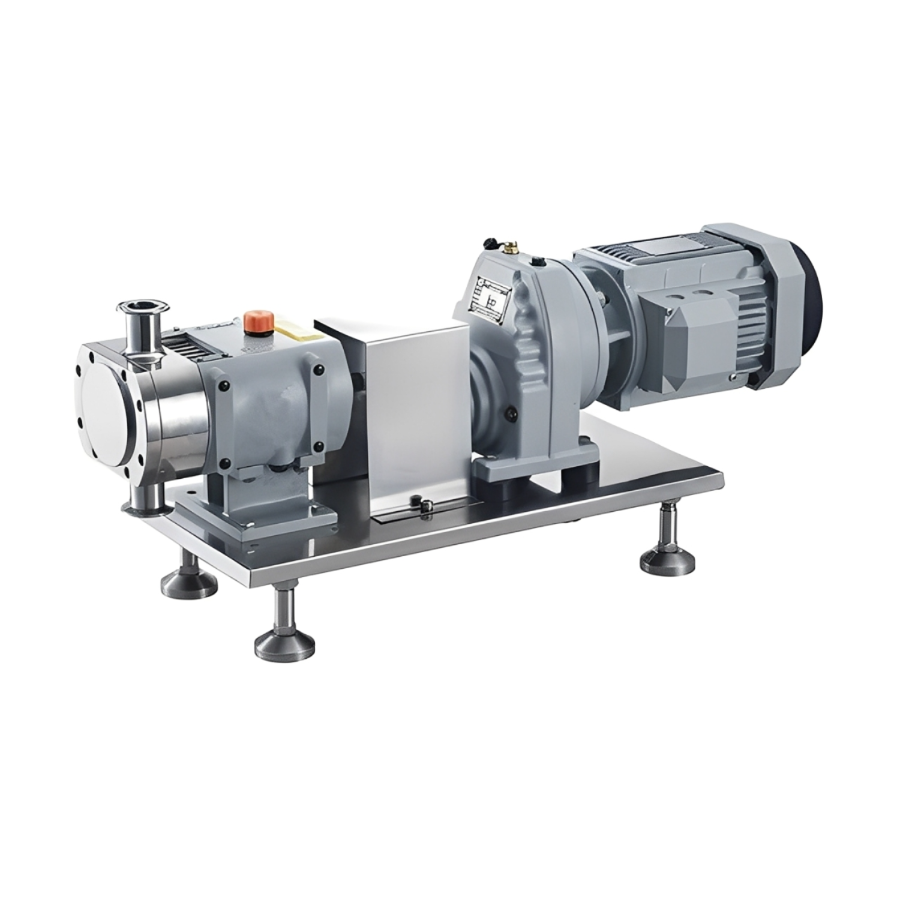

A Rotary Lobe Pump is a type of positive displacement pump that operates by trapping a fixed volume of fluid and mechanically forcing it through the pump casing. Unlike centrifugal pumps that use velocity, rotary pumps use rotating elements (like gears or lobes) to create a smooth, non-pulsating flow. This makes them exceptionally good at handling high-viscosity fluids and providing self-priming performance.
The working principle of a rotary lobe pump is based on creating a expanding cavity on the suction side and a decreasing cavity on the discharge side.
Intake Phase: As the rotors (e.g., gears, lobes) turn, they create an expanding volume at the pump's inlet. This vacuum draws fluid into the pump chamber.
Transfer Phase: The fluid is trapped in the enclosed spaces between the rotors and the casing.
Discharge Phase: The rotation of the rotors then reduces the volume, forcing the fluid out of the discharge port in a continuous, steady stream.
This principle results in a flow rate that is directly proportional to the pump's speed, making it easy to control.
The working principle of a rotary lobe pump is based on creating a expanding cavity on the suction side and a decreasing cavity on the discharge side.
Intake Phase: As the rotors (e.g., gears, lobes) turn, they create an expanding volume at the pump's inlet. This vacuum draws fluid into the pump chamber.
Transfer Phase: The fluid is trapped in the enclosed spaces between the rotors and the casing.
Discharge Phase: The rotation of the rotors then reduces the volume, forcing the fluid out of the discharge port in a continuous, steady stream.
This principle results in a flow rate that is directly proportional to the pump's speed, making it easy to control.
Selecting the right type of rotary lobe pump depends on your fluid. The most common variants include:
Gear Pumps (Internal/External): Simple, robust, and cost-effective. Ideal for lubricating oils, fuels, and hydraulic fluids.
Lobe Pumps: Highly sanitary, capable of handling solids and slurries. The gold standard for food, pharmaceutical, and biotech applications.
Progressive Cavity Pumps: Excel with high-viscosity, non-abrasive slurries and shear-sensitive products. Provide a very smooth, low-pulsation flow.
Vane Pumps: Known for their dry-priming capability and suitability for low-viscosity fluids like solvents or LPG.
The versatility of rotary lobe pumps makes them indispensable in numerous sectors:
Oil & Chemical: Transferring crude oil, fuels, polymers, and chemical additives.
Food & Beverage: Pumping chocolate, cream, yogurt, fruit concentrates, and syrups.
Pharmaceutical & Biotech: Handling sensitive media, cell cultures, and ointments with low shear.
Personal Care & Cosmetics: Metering shampoos, lotions, creams, and pastes.
Paints & Inks: Transferring viscous pigments, resins, and printing inks.
Pulp & Paper: Moving starch, coatings, and pulp slurries.
Wastewater Treatment: Dosing polymers and handling sludges.
Construction industry: transporting cement slurry and waterproof coatings.
Shipbuilding: transporting fuel oil, lubricating oil, and bilge oil wastewater.
Mechanical equipment: used as hydraulic pumps and lubricating oil pumps.
Choosing between a rotary pump and a centrifugal pump is a fundamental decision.
Feature | Rotary Pump | Centrifugal Pump |
Principle | Positive Displacement | Kinetic (Centrifugal Force) |
Flow vs. Pressure | Constant flow, largely unaffected by pressure | Flow decreases as pressure increases |
Viscosity | Efficient with high-viscosity fluids | Efficiency drops drastically as viscosity rises |
Self-Priming | Yes | No (requires priming) |
Conclusion: Use a rotary pump for thick, viscous, or shear-sensitive fluids and when a constant flow is needed. Use a centrifugal pump for low-viscosity, high-flow applications like water transfer.
Proper rotary lobe pump selection is critical for performance and longevity. Consider these factors:
Fluid Properties: Viscosity, temperature, abrasiveness, corrosiveness, and presence of solids.
Operating Conditions: Required flow rate (GPM), inlet and discharge pressure (PSI/Bar), and temperature.
Material of Construction: Match wetted parts (casing, rotors) to the fluid. Options include cast iron, stainless steel (304/316), and specialized alloys.
Seal Type: Choose mechanical seals or packed seals based on the fluid's toxicity and required containment.
Follow these maintenance practices to maximize your pump's life:
Routine Checks: Monitor for unusual noise, vibration, leaks, or overheating.
Scheduled Service: Regularly change lubrication oil and replace wear parts like rotors, lobes, or seals as recommended.
Troubleshooting Common Issues:
Reduced Flow: Check for worn components, clogged suction lines, or insufficient NPSH.
No Pressure/Flow: Verify rotation direction and check for air ingestion.
Excessive Noise: Inspect for cavitation, bearing failure, or misalignment.
Rotary Lobe Pumps are a cornerstone of modern industrial processes, offering unmatched performance for challenging fluid handling tasks. By understanding their operating principles, various types, and key selection criteria, you can confidently choose and maintain a rotary pump that ensures reliability, efficiency, and longevity in your operations.
