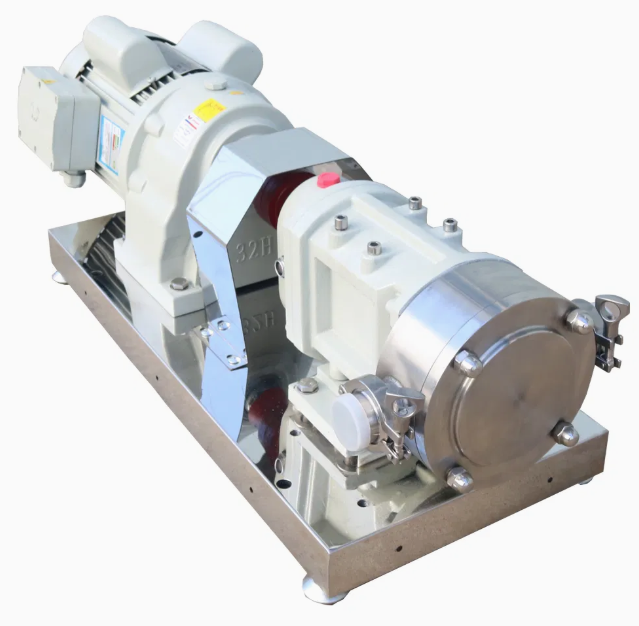

USH-NYP series sanitary rotor lobe pump is a horizontal internal engaged arc gear positive displacement pump developed following international 3A hygiene standards, fully certified by CE, ISO and RoHS. Equipped with herringbone involute rotors and stainless steel pump body, it can handle fluid viscosity from 1.0cSt to 300000cSt, solving the conveying difficulty of high viscosity, shear-sensitive, solid-containing and mild corrosive media. Compared with ordinary pumps, our rotor pump delivers stable non-pulsation flow, low vibration and low noise, with customizable rotor types, seals and heating jackets. It is widely recognized by global manufacturers in food processing, fine chemical, cosmetics, pharmacy and environmental protection fields.
Item | Standard Technical Data |
|---|---|
Model No. | JUSH-NYP |
Pump Type | Horizontal Internal Engaged Arc Gear Rotor Lobe Pump |
Rotor Form | Herringbone Involute Rotor; Optional single/tri-lobe/butterfly rotor |
Main Material | SS304 / SS316 Stainless Steel Pump Body |
Seal Material | EPDM Standard Mechanical Seal; Graphite/Silicon Carbide Optional |
Motor Power | 0.37KW ~ 22KW |
Max Flow Rate | 43000 Liter/Hour |
Working Temperature | -10℃ ~ 180℃, Max optional 250℃ |
Fluid Viscosity Range | 1.0cSt ~ 300000cSt |
Connection Type | Flange / Thread Customizable |
Voltage Support | 220V / 380V Customizable |
Certification | CE, ISO, RoHS, Meet 3A Sanitary Standard |
MOQ | 1 Piece |
Warranty | 1 Year Whole Pump Warranty |
Customization | Rotor shape, heating jacket, motor, seal material, magnetic coupling optional |
HS Code | 8413709990 |
Monthly Production Capacity | 5000PCS |
1.Smooth Non-Pulsation Conveying：Gentle fluid transportation, low vibration and low noise, no damage to shear-sensitive materials like yogurt, beer, fruit puree.
2.Ultra-Strong Self-Priming Performance：Excellent self-absorption capacity, no frequent water filling before startup, suitable for intermittent production lines.
3.Wide Viscosity Adaptability：Stably transport thin liquid to ultra-high viscosity media up to 300000cSt, cover syrup, chocolate, resin, bitumen, grease.
4.Corrosion Resistance & Sanitary Grade：SS304/316 material match EPDM food-grade seal, handle food raw materials and mild corrosive chemical liquid.
5.Safe Enclosed Magnetic Coupling Option：Fully sealed magnetic isolation design, zero leakage, prevent flammable & volatile chemical medium safety hazards.
6.Wide Temperature Adaptation：Standard -10~180℃ working range, samarium cobalt magnet optional for high temperature up to 250℃.
7.Strong Customization Flexibility：Support motor power, voltage, rotor shape, heating jacket, flange standard personalized customization for global market.
8.Complete After-Sales Support：1-year warranty, 24h online technical guidance, remote fault diagnosis, factory-cost supply of spare parts after warranty period.
If you need a stable high-viscosity sanitary transfer pump that can handle food, cosmetic or chemical media without damaging raw materials, JUSH-NYP stainless steel rotor lobe pump is your ideal solution. With mature manufacturing technology, full certification, wide parameter range and flexible customization, our pumps have been exported to dozens of countries for food, chemical and environmental production projects. Send us your working condition details including flow rate, viscosity, medium temperature and hygiene requirements, our engineer team will provide free professional pump selection solution and factory direct quotation within 24 hours.
