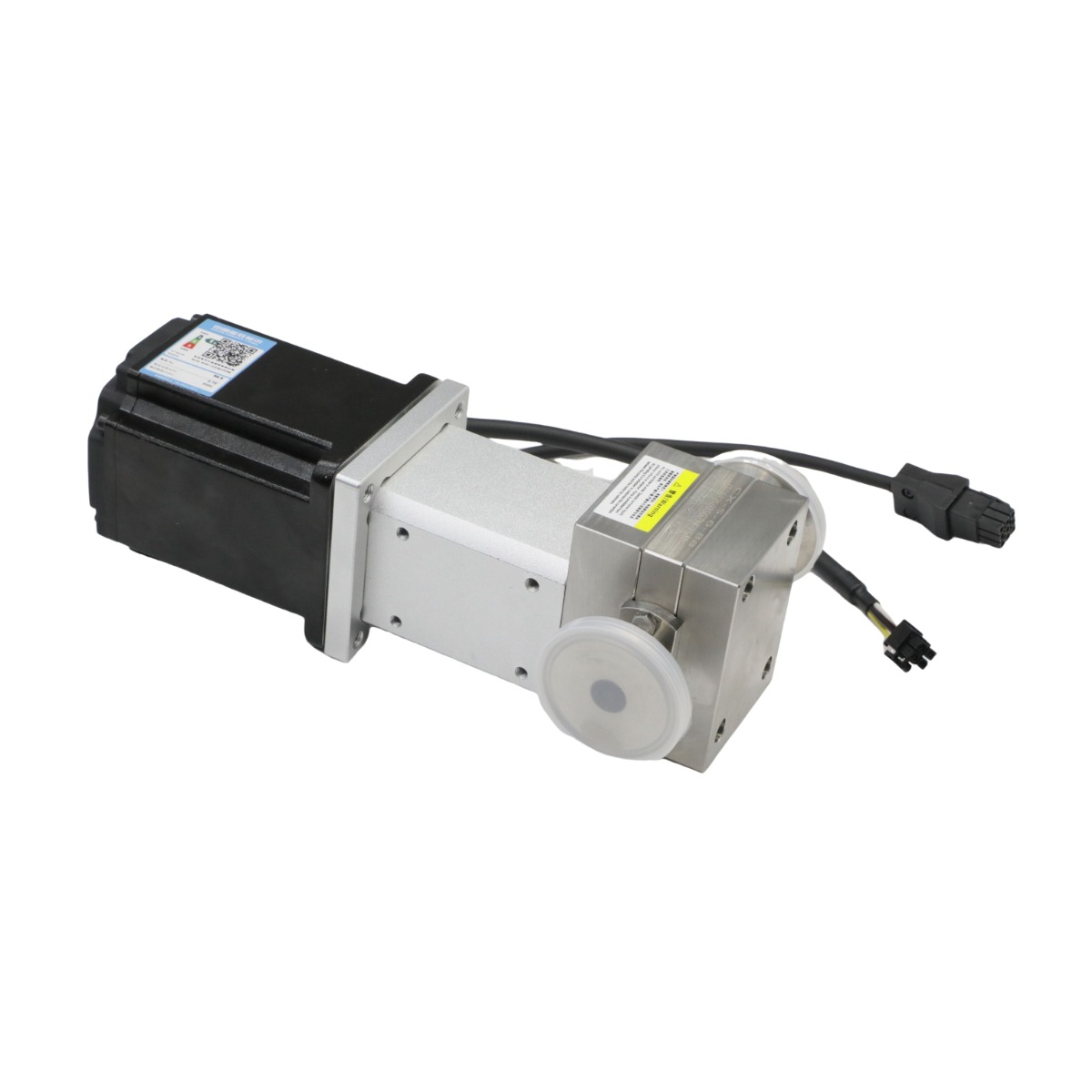

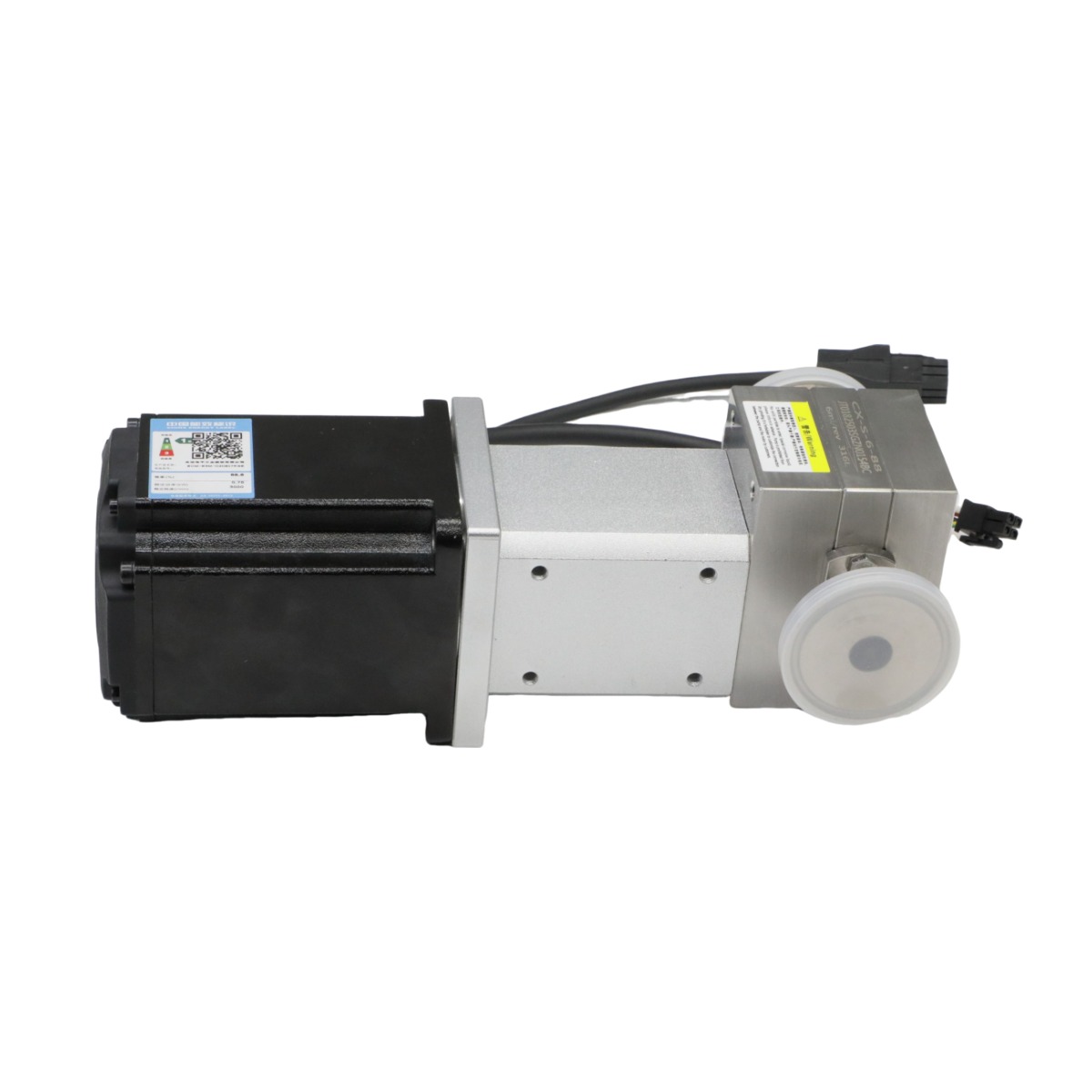

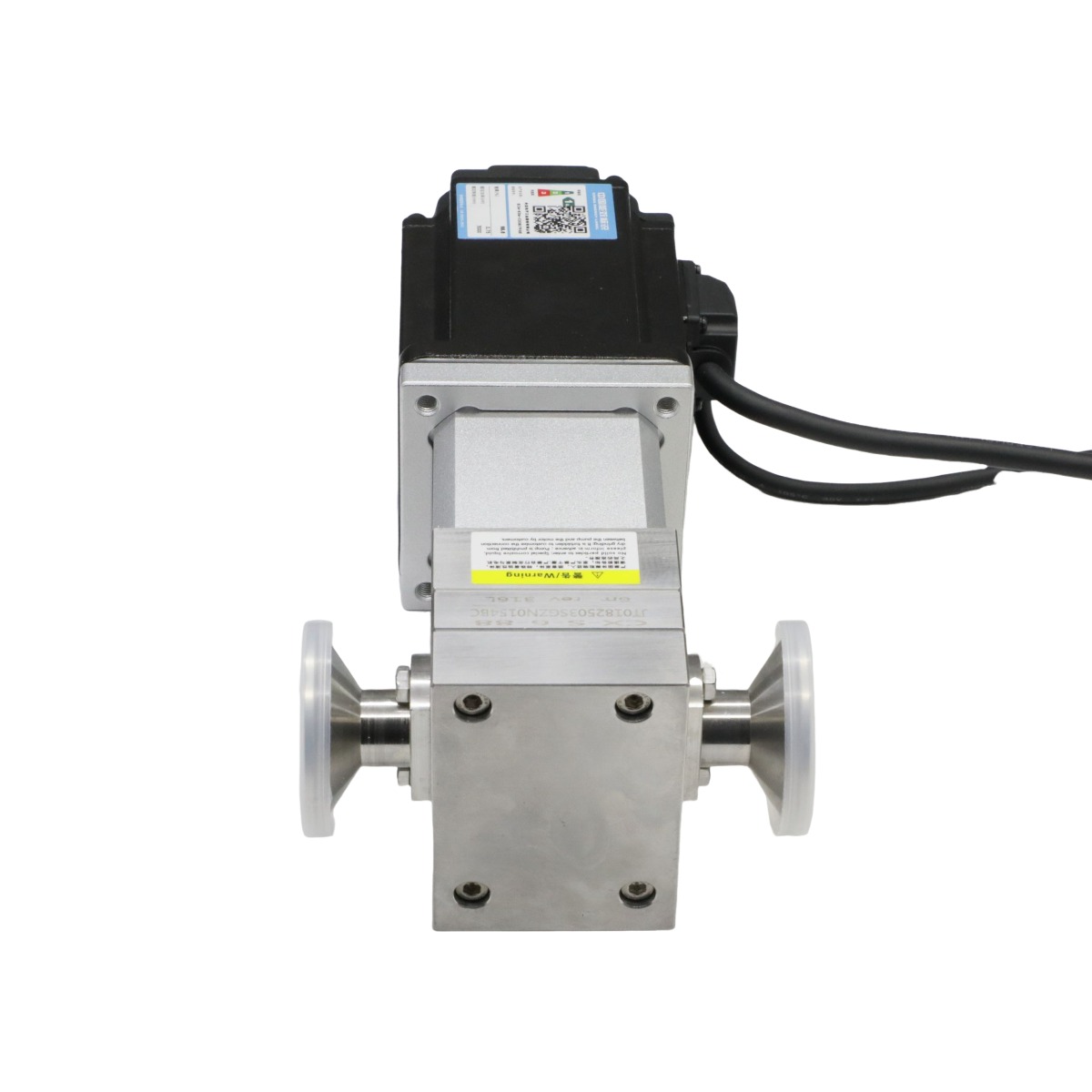

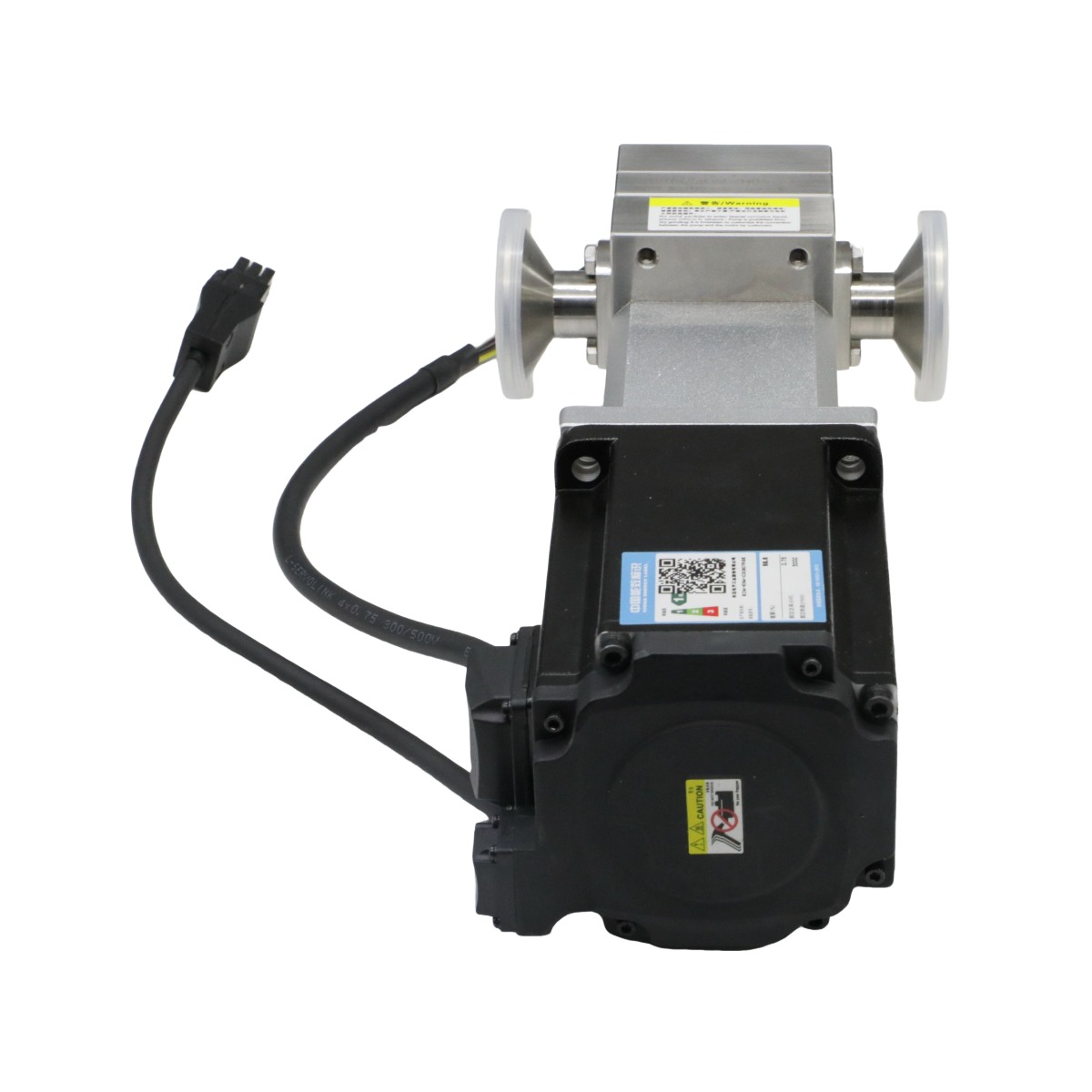

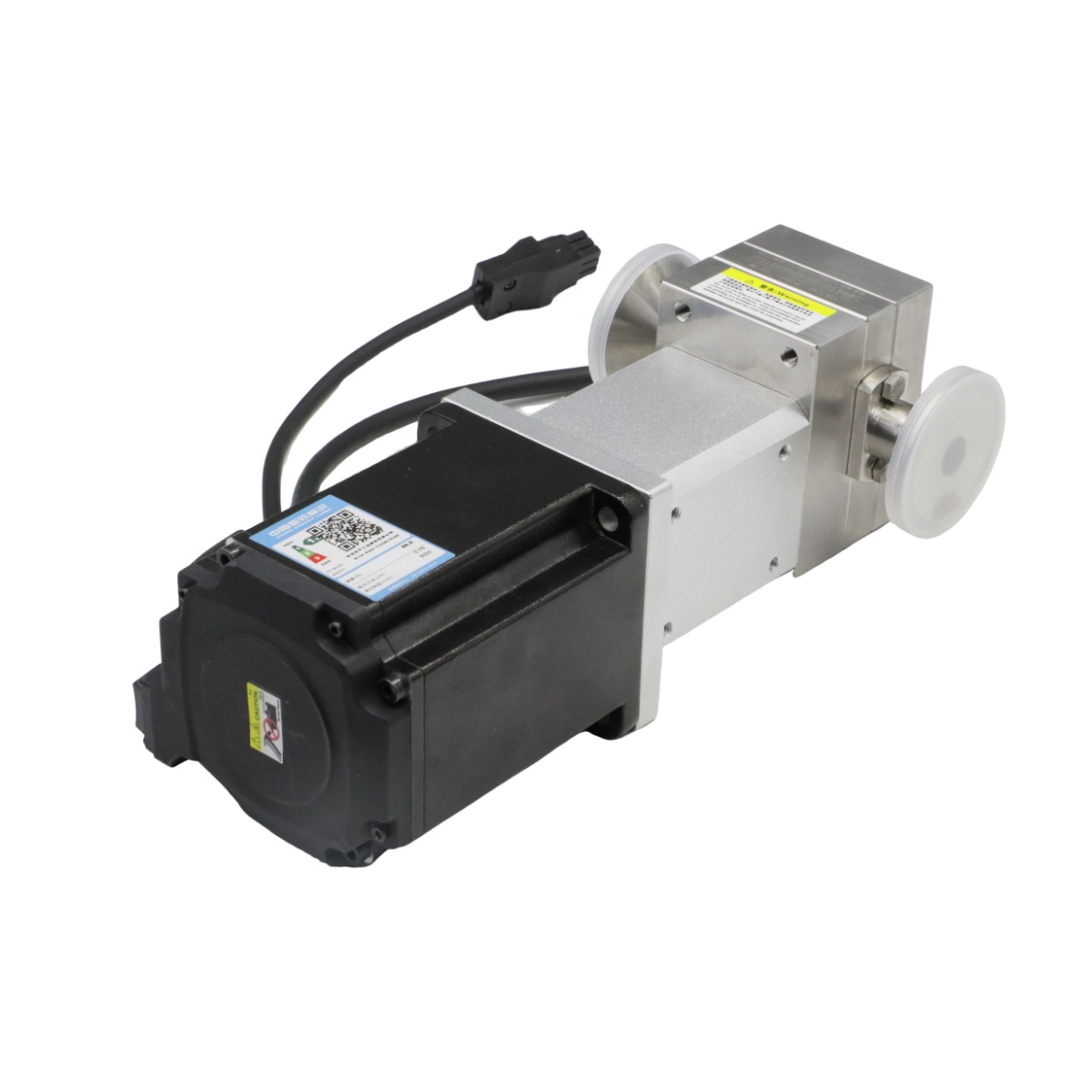

Shanghai JUSH Electromechanical CX series magnetic drive gear pump has the characteristics of no pulsation, high metering accuracy, stable flow, zero leakage, low noise, high vacuum, high pressure difference, acid and alkali resistance, corrosion resistance, high and low temperature resistance, wear resistance, long service life, high efficiency and energy saving.
Magnetic Drive Gear Pump Feature
It is especially suitable for use as a metering pump, and can be customized according to customer requirements for inlet and outlet threads and their directions, pump body, gear, sealing ring material, size, temperature resistance range, viscosity range, flow range, etc., and the motor can be equipped with AC motor, DC brushless, DC brushed, stepper, servo, frequency conversion, explosion-proof motor, etc.
Magnetic Drive Gear Pump Application
It is widely used in filling machines and batching devices, food processing industry, water purification and ultrafiltration systems, cold and hot circulation systems, industrial sampling systems, automobile exhaust after-treatment systems, automobile engine intelligent cleaning systems, inkjet printers, inkjet printers, high-performance color printing machines, pharmaceutical machine equipment, automatic sampling systems, medical permeability equipment, pulsed magnetic field stimulators.
Magnetic Drive Gear Pump Technical Parameter
| Displacement，ml/rev | 6ml/rev | Viscosity，cps | 0-5000 cps |
| Flow rate，L/H | 0-1080L/H | Pressure，bar | 5 bar |
| Flow rate，L/min | 0-18L/min | Motor model | 80 servo motors |
| Rotate speed，rpm | 0-3000 rpm | Recommended motor power，w | 750 w |
| Size(long,wide,high,unit:mm) | 120*80*230mm | Current rating，A | 1.5A |
| Single weight，kg | 4.52kg | Rated voltage，V | AC 220V |
| Import and export directions | Both sides of the pump head | Pump body material | 316L |
| Inlet and outlet threads | 50.5 chuck | Statically sealed material | FKM/PTFE |
| Temperature range，℃ | -10-100℃ | Gear material | PEEK |
Reminder:
1. The motor is strictly prohibited from idling.
2. Do not connect the positive and negative poles of the motor in reverse.
3. Powder is strictly prohibited in the fluid. For special fluids, please consult an engineer.
4. For work in high temperature environments, please inform us in advance.
Work in high temperature environment, please inform in advance.
