Self Priming Water Pump: An Efficient And Reliable Water Pump Solution

The application fields of self-priming water pumps are very wide, covering multiple scenarios such as household, agriculture, industry, commerce, municipal, marine, environmental protection, and emergency drainage. Its high efficiency, reliability, and easy operation make it an ideal choice for various water treatment needs. Whether it's daily water supply, agricultural irrigation, industrial production, or emergency drainage, self-priming pumps can provide efficient and stable solutions.

Self-priming Water Pump Characteristics

1. Automatic water absorption function

The self-priming water pump is equipped with an automatic suction device, which can automatically suction water when starting, without the need for manual water filling. This feature greatly simplifies the operation process and improves work efficiency.

2. High efficiency motor

The self-priming water pump is equipped with a high-efficiency motor, which can provide powerful power output with low energy consumption. This not only reduces operating costs, but also minimizes the impact on the environment.

3. Compact design

Self suction pumps usually adopt a compact design, occupying small space, and are easy to install and move. This feature makes it easy to use in situations with limited space.

4. Multiple models to choose from

There are multiple models of self-priming water pumps to choose from, meeting the needs of different users. Suitable models can be found for both small household use and large industrial applications.

Self-priming Water Pumps Application Fields

Self suction water pumps are widely used in multiple fields due to their high efficiency, reliability, and easy operation. The following are the main application scenarios of self-priming pumps:

1. Household water supply

Self priming water pumps are an ideal choice for household water supply, especially suitable for areas without stable tap water supply.

Application scenarios:

Extract domestic water from wells, water tanks, or storage tanks.

Provide drinking water, toiletries, and cleaning water for households.

Used for household garden irrigation or small fountain water supply.

Advantages:

Automatic water absorption function, easy to operate.

Low noise design, suitable for home environments.

Compact in size, easy to install and maintain.

2. Agricultural irrigation

In the field of agriculture, self-priming pumps are one of the core equipment in irrigation systems.

Application scenarios:

Extract irrigation water from rivers, lakes, or groundwater sources.

Drip irrigation or sprinkler irrigation systems used in farmland, orchards, and greenhouses.

Provide drinking water for livestock.

Advantages:

Efficient water absorption capacity, suitable for long-distance water transportation.

Durable and adaptable to harsh outdoor environments.

Multiple models are available to meet irrigation needs of different scales.

3. Industrial Water

Self suction water pumps play an important role in industrial production, used to transport various liquid media.

Application scenarios:

Factory cooling water circulation system.

Water supply for cleaning equipment or production lines.

Transporting chemical liquids, oils, or other industrial media (using corrosion-resistant water pumps).

Advantages:

High efficiency motor to meet high-intensity work requirements.

Corrosion resistant design, suitable for various industrial environments.

Low maintenance costs and reduced downtime.

4. Construction and Municipal Engineering

Self priming pumps are also widely used in construction and municipal engineering.

Application scenarios:

Drainage and water supply at construction sites.

Boosting and delivery of municipal water supply system.

Drainage and flood control of basement and underground garage.

Advantages:

Strong water absorption capacity, suitable for handling large amounts of water.

Sturdy structure, adaptable to complex working conditions.

Flexible installation, easy to move and use.

5. Commercial and public facilities

Self priming pumps also have important applications in commercial and public facilities.

Application Scenarios:

Water supply systems for hotels, schools, and hospitals.

The water circulation system of swimming pools and fountains.

Fire water supply system for commercial buildings.

Advantages:

Stable operation ensures continuous water supply.

Low noise design, suitable for public places.

Energy saving and efficient, reducing operating costs.

6. Ships and Fisheries

Self priming pumps are also widely used in the fields of ships and fisheries.

Application scenarios:

The ballast water system of a ship.

The live fish compartment of the fishing boat is supplied with water.

Drainage and water supply of offshore platforms.

Advantages:

Corrosion resistant design, suitable for seawater environment.

Efficient water absorption capacity to meet the needs of offshore operations.

Compact structure, saving space on board.

7. Environmental Protection and Water Treatment

Self suction water pumps also play an important role in environmental protection and water treatment.

Application scenarios:

Liquid transportation in sewage treatment plants.

Rainwater collection and reuse system.

Dredging and drainage of rivers and lakes.

Advantages:

Corrosion resistant material, suitable for sewage and chemical liquids.

High efficiency motor reduces energy consumption.

Easy maintenance and reduced operating costs.

8. Emergency drainage

Self priming water pumps perform well in emergency drainage scenarios.

Application scenarios:

Emergency drainage during flood disasters.

Clean up the accumulated water in the basement.

Temporary drainage at construction sites.

Advantages:

Quick start, efficient drainage.

Portable design, easy to move and deploy.

Strong durability and adaptability to harsh environments.

 Self-priming Water Pump Application Principle

1. Self suction principle

The self-priming principle of a self-priming water pump is based on its unique impeller and pump body design. When starting, the impeller rotates at high speed, generating negative pressure and drawing water into the pump body through the suction pipe. As the impeller continues to rotate, water is pushed towards the outlet, completing the suction process.

2. Workflow

The working process of a self-priming water pump includes the following steps:

Start: The motor starts and the impeller begins to rotate.

Water suction: The impeller rotates to generate negative pressure, which sucks water into the pump body through the suction pipe.

Drainage: Water is pushed towards the outlet and discharged from the pump body.

Cycle: The impeller continues to rotate, maintaining a suction and drainage cycle.

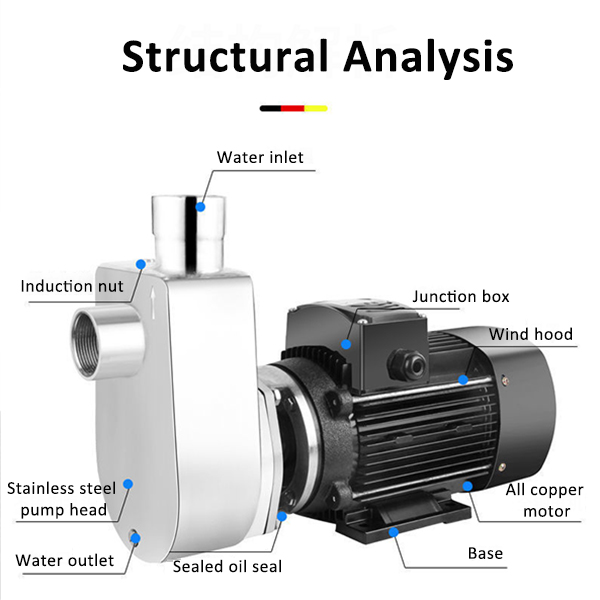

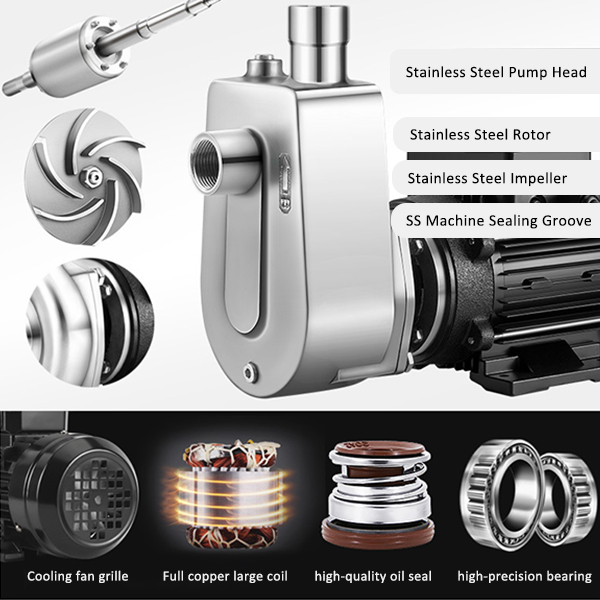

Self-priming Water Pump Key Components

The key components of a self-priming water pump include:

Impeller: responsible for generating negative pressure and pushing water flow.

Pump body: accommodates impeller and water flow to ensure sealing.

Motor: Provides power to drive the impeller to rotate.

Suction pipe and outlet pipe: Connect the water source and outlet to ensure smooth water flow.

Self-priming Water Pumps Common Problems And Solutions

1. The water pump cannot start

Reason for the problem:

Power failure.

Motor damage.

The impeller is stuck.

terms of settlement:

Check the power connection to ensure proper power supply.

Check the motor and replace it if it is damaged.

Clean the impeller to ensure it can rotate freely.

2. Decreased water absorption capacity

Reason for the problem:

The suction pipe is blocked.

Impeller wear.

Poor sealing of the pump body.

terms of settlement:

Clean the suction pipe to ensure unobstructed flow.

Check the impeller and replace it if it is worn.

Check the pump body seal to ensure no leakage.

3. Excessive noise

Reason for the problem:

The impeller is unbalanced.

The motor bearings are worn.

The pump body is loose.

terms of settlement:

Check the impeller to ensure its balance.

Check the motor bearings and replace them if they are worn.

Tighten the pump body to ensure its stability.

4. Water leakage

Reason for the problem:

The sealing ring is aging.

Cracks in the pump body.

The connection is loose.

terms of settlement:

Replace the sealing ring.

Check the pump body and repair or replace it if there are cracks.

Tighten the connection to ensure there is no looseness.

Self priming water pumps have become the preferred choice for many users due to their efficient self-priming ability, wide range of applications, strong durability, and low maintenance costs. Its unique design and efficient working principle enable it to perform excellently in various situations. By understanding its characteristics, application principles, common problems, and solutions, users can better use and maintain self-priming pumps, ensuring their long-term stable operation. Whether for household, agricultural, industrial, or commercial applications, self-priming water pumps are an efficient and reliable water pump solution.
