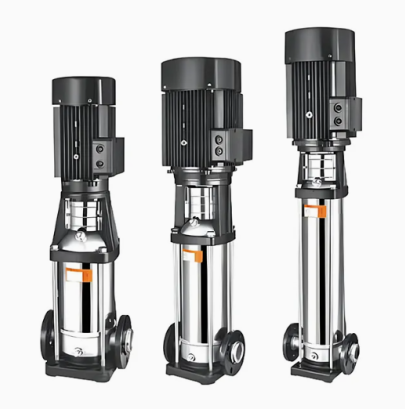

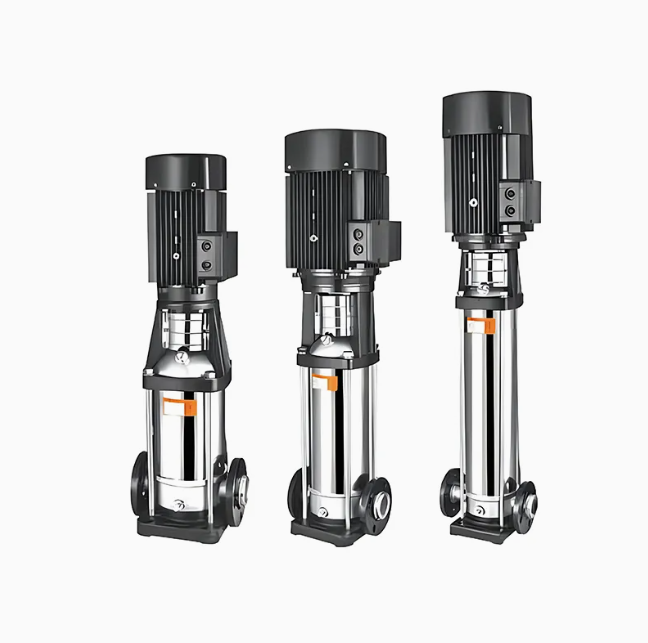

JUSH_CDL(F) CDL/CDLF stainless steel vertical multistage centrifugal pumps are energy-efficient vertical pipeline booster pumps developed by integrating global advanced pump manufacturing technology. This series vertical multistage centrifugal pump abandons heavy cast iron flow parts, all medium contact sections adopt stainless steel stamped welding, matched with universal vertical standard motor and quick-install mechanical seal, which can fully replace European imported CR/CRN vertical pumps. With wide performance range, stable operation and strong corrosion resistance, it is widely recognized by industrial water treatment, heating, fire protection, chemical irrigation global buyers.
Item | Technical Data |
|---|---|
Model No. | JUSH_CDL(F) CDL CDLF Series |
Material Option | Cast Iron, SS304, SS316, SS904 Stainless Steel |
Seal Material | Graphite, Silicon Carbide, Fluorine Rubber Auxiliary Ring |
Power Range | 0.37KW - 110KW |
Max Flow Rate | 240m³/h (1057GPM) |
Max Head | 80-232m (CDL F2 model up to 232m) |
Caliber Size | 25mm - 500mm |
Rotation Speed | 1450r/min / 2980r/min |
Voltage Support | 220V, 380V Customizable |
Warranty Period | 1 Year |
Customization Service | Support Custom Motor, Flange, Seal Material |
1. High Lift & Large Flow：Adopt optimized hydraulic model, maximum lift reaches 232m, max flow up to 240m³/h, stable water output under high pressure working condition.
2.304/316 Stainless Steel Flow Passage：All medium contact parts are stamped and welded by stainless steel plates, resistant to mild corrosion, suitable for pure water, softened water and light chemical liquid transportation.
3.Full Copper Core Motor：Standard vertical copper winding motor, strong power, low heat generation, long service life, support matching different power motors as customer demand.
4.Long Service Life：Mechanical seal end face adopts alloy silicon carbide, auxiliary ring uses fluorine rubber, improve pump operation stability and medium temperature adaptability, reduce failure frequency.
5.Compact Structure & Low Noise：Integrated vertical design, small footprint, light weight, low running noise, no extra space occupation for pipeline installation.
6.Easy Installation & Maintenance：Water inlet and outlet on the same horizontal line with pump base, can be directly installed on pipeline; quick-disassembly mechanical seal, easy to replace without professional tools.
7.Energy Saving High Efficiency：Advanced manufacturing process reduces hydraulic loss, high operation efficiency, effectively cut industrial water supply power consumption cost.
8.24 Hours Online After-sales & Customizable：Support personalized customization of pump parameters and materials; we provide 24h online technical guidance and after-sales service, solve installation and failure problems timely.
If you are looking for cost-effective vertical multistage centrifugal pump to replace expensive imported CR/CRN pumps, our CDL/CDLF stainless steel booster pump is your ideal choice. With complete model specifications, stable performance, corrosion-resistant stainless steel structure and full after-sales guarantee, our pumps have been exported to dozens of countries for water supply, fire protection, chemical and irrigation projects. Send us your working condition parameters (flow, head, medium, voltage) to get free professional pump selection solution & factory direct quotation.
