Views: 5985 Author: JUSH Marketing Department Publish Time: 2025-04-02 Origin: Shanghai JUSH Pump
With the continuous advancement of industrialization and urbanization, sewage treatment and discharge have become important links in environmental protection. Whether in industrial production, urban sewage treatment, or commercial buildings, Sewage Pumps play an indispensable role. Efficient, durable, and reliable Sewage Pumps can ensure timely discharge of wastewater, prevent environmental pollution, and reduce system maintenance costs. This article will provide a detailed introduction to the working principle, main types, application scenarios, selection suggestions, installation and maintenance techniques of Sewage Pumps, and explore the latest technological development trends, aiming to provide comprehensive references for buyers and help them make wise decisions when choosing Sewage Pump products.
# 1. Sewage Pumps Basic Principles And Working Mechanism：
# 1.1 Definition and function of sewage pumps
Sewage Pumps are specially used to transport wastewater containing suspended solids, impurities and some corrosive substances. Its main function is to extract sewage from the discharge point or low-lying area and transport it to the predetermined discharge or treatment site through a pipeline, so as to achieve efficient discharge and treatment of wastewater. Compared with ordinary water pumps, sewage pumps have higher requirements in structure and materials to adapt to harsh working environments and complex media.
# 1.2 Overview of working principles
Sewage pumps usually work on the centrifugal principle. The impeller is driven by a motor to rotate at high speed, so that the water flow obtains centrifugal force in the impeller and is then pushed to the outlet of the pump. The specific working process includes the following stages:
- **Water suction stage**: Sewage is sucked into the pump cavity through the water inlet of the pump body. In this process, the suction port and pipeline design of the pump are crucial, and blockage and back suction must be prevented.
- **Acceleration phase**: The sewage enters the high-speed rotating impeller. Under the action of centrifugal force, the water flow speed increases rapidly and is guided into the diffuser of the pump housing.
- **Drainage phase**: In the diffuser, due to the decrease in flow rate, the pressure is converted into static pressure, and the sewage is finally discharged and transported to the designated location through the connected pipes.
This series of processes needs to ensure stable operation while avoiding wear and blockage problems caused by solid impurities in the medium. Therefore, modern Sewage Pumps generally use wear-resistant materials and high-efficiency filtration devices in their design to ensure long-term stable operation of the system.
Sewage Pumps can be divided into many types according to their working principles, structural forms and application fields. The following are several common main types and their characteristics:
- **Application**: commonly used in municipal sewage treatment plants, commercial buildings and industrial wastewater discharge systems.
- **Application**: suitable for occasions with large water level changes, such as rainwater discharge systems and sudden water accumulation treatment.
- **Application**: Mainly used in high-wear environments such as industrial wastewater, mining wastewater and chemical emissions.
- **Application**: Suitable for deep well drainage, high-rise building water supply and special industrial fields.
### 3. Application of sewage pumps in various fields
Sewage pumps are widely used in many fields due to their excellent adaptability and high efficiency. The following are several major application areas and their specific characteristics:
### 3.1 Municipal Sewage Treatment
In urban sewage treatment systems, sewage pumps are used to pump domestic sewage, commercial wastewater and industrial wastewater to centralized treatment facilities.
- **Demand analysis**: It needs to meet the requirements of large flow and continuous long-term operation, and at the same time have anti-blocking, anti-corrosion and self-priming functions.
- **Application examples**: Urban sewage lifting pump stations, rainwater and sewage diversion systems and river flood discharge systems.
### 3.2 Industrial Wastewater Discharge
A large amount of wastewater is generated during industrial production, and sewage pumps play a key role in it.
- **Demand analysis**: Industrial wastewater often contains corrosive substances and solid particles, and has high requirements for pump body materials and sealing systems.
- **Application examples**: In industries such as chemical, papermaking, pharmaceuticals, and mining, sewage pumps are used to discharge wastewater from workshops or transport it to treatment facilities.
### 3.3 Construction Site Drainage
Construction sites often face problems such as heavy rain or groundwater infiltration. Sewage pumps can be used to quickly remove accumulated water and ensure construction safety.
- **Requirement analysis**: The equipment is required to respond quickly, have high drainage efficiency, and be easy to move and install.
- **Application examples**: Temporary drainage systems on construction sites, flood control drainage in basements, and emergency drainage of accumulated water.
### 3.4 Agriculture And Farms
In agricultural irrigation and farm environments, sewage pumps are used to discharge animal wastewater or treat farmland drainage to avoid pollution and disease transmission.
- **Requirement analysis**: The system needs to have corrosion resistance and wear resistance, while requiring low energy consumption.
- **Application examples**: Wastewater discharge from livestock and poultry farms, greenhouse drainage, and by-product discharge in agricultural irrigation systems.

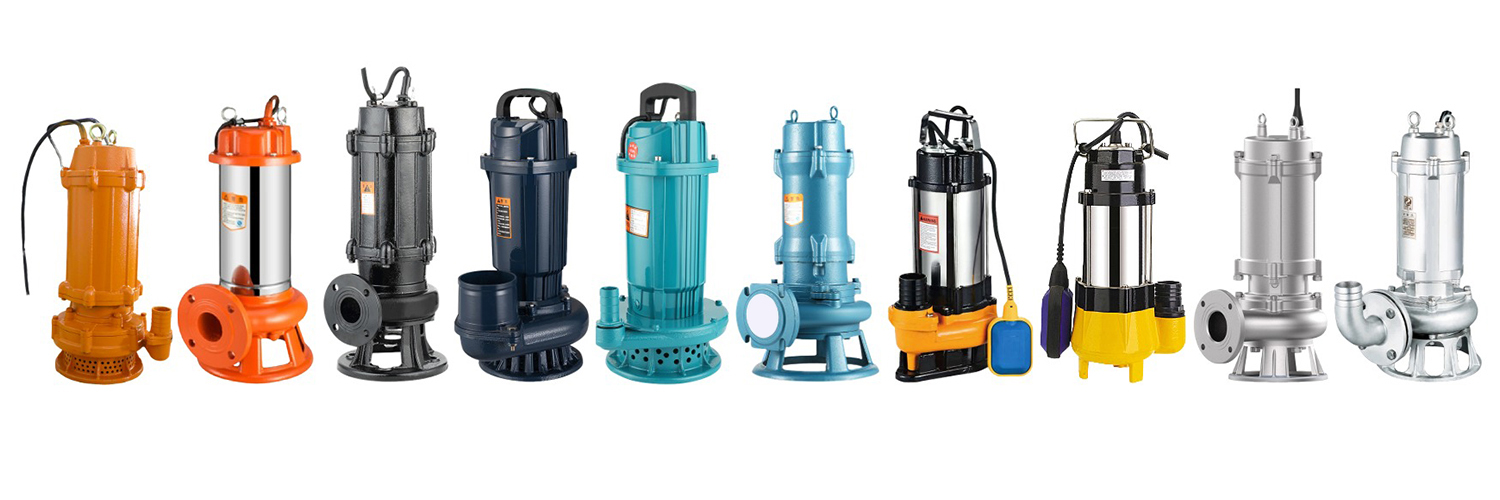

#### 4. Selection and design considerations of sewage pumps
When selecting a suitable sewage pump, a comprehensive evaluation is required from multiple angles. The following are the main selection parameters and design considerations:
#### 4.1 Flow and head
- **Flow requirements**: Calculate the amount of wastewater that needs to be discharged daily or hourly based on the actual discharge demand to ensure that the selected pump type can meet continuous high-flow operation.
- **Head requirements**: The head refers to the vertical height to which the pump can transport wastewater, which usually depends on the height difference between the wastewater extraction point and the discharge point. High head requires the selection of multi-stage or high-efficiency centrifugal pumps.
#### 4.2 Sewage medium characteristics
- **Solid content**: When there are more suspended solids, particulate matter or fiber impurities in the sewage, a wear-resistant or large-channel design pump should be selected to prevent clogging.
- **Corrosive**: Sewage containing acids, alkalis or other corrosive chemicals requires a sewage pump made of anti-corrosion materials, such as stainless steel or special alloy materials.
#### 4.3 Installation environment and maintenance convenience
- **Installation environment**: Indoor and outdoor installation conditions, temperature, humidity and other environmental factors have an important impact on the service life and stability of the equipment. Ensure that the selected product has good environmental adaptability.
- **Maintenance requirements**: Products with simple structure, easy disassembly and cleaning are preferred, while considering the supply of spare parts and the quality of after-sales service.
#### 4.4 Energy consumption and economic benefits
- **Energy efficiency ratio**: High-efficiency Sewage Pumps can significantly reduce operating costs while ensuring drainage efficiency. Choosing equipment with variable frequency speed regulation function can better realize intelligent management and further save energy and reduce consumption.
- **Cost-effectiveness**: Under the premise of meeting technical indicators, select products with high cost-effectiveness according to the budget, and comprehensively consider the service life and maintenance cost of the equipment.
##### 5. Installation and commissioning of sewage pumps
Proper installation and commissioning are the key to ensuring the long-term stable operation of sewage pumps. The following are several aspects that need to be paid attention to during the installation process:
##### 5.1 Preparations before installation
- **Site survey**: Conduct detailed inspections of the installation site to confirm the water source, discharge point and power supply location, and ensure that the installation environment meets the product requirements.
- **System design**: Develop a detailed system plan, including pump station layout, pipeline direction and electrical control system design to ensure that all components of the system work together.
- **Equipment inspection**: Conduct a comprehensive inspection of the sewage pump before installation to confirm that there is no transportation damage or manufacturing defects, and prepare the necessary installation tools and accessories.
##### 5.2 Installation steps and key points
- **Foundation construction**: Set up a solid base or base for the pump station to prevent equipment vibration and displacement, and ensure that the installation angle meets the design requirements.
- **Pipeline connection**: The inlet and outlet pipes must be made of corrosion-resistant materials, and suitable filters and check valves must be installed in advance to prevent blockage and backflow problems.
- **Electrical wiring**: Ensure that the power supply meets the equipment requirements, install a waterproof and dustproof electrical control box, and adopt grounding protection measures when necessary to ensure safe use.
##### 5.3 Debugging and trial operation
- **Initial start-up**: During the debugging process, start the equipment step by step to observe whether the operating status, pressure changes and flow of the pump body meet the design requirements.
- **Monitoring and adjustment**: Through the online monitoring system, record the equipment operation data in real time, and adjust the parameters such as pressure, flow and temperature when necessary to achieve the best working state.
- **Safety inspection**: During the trial operation stage, carefully check all wiring, sealing and connection parts to ensure that there is no leakage, overheating or abnormal vibration.
###### 6. Common faults and troubleshooting methods of sewage pumps
During long-term operation, sewage pumps may encounter various faults. The following summarizes several common fault phenomena and corresponding troubleshooting and solutions:
###### 6.1 Pump blockage
- **Fault manifestation**: The flow of the sewage pump drops sharply or stops completely, and there is obvious sediment accumulation in the pipeline.
- **Troubleshooting method**: Check whether the water inlet pipe, filter and impeller are blocked by solid impurities; clean up the blockage and replace the filter device if necessary.
- **Preventive measures**: Clean the filter regularly to keep the pipeline unobstructed; choose a large-channel wear-resistant pump in an environment with high solid content.
###### 6.2 Motor overheating or tripping
- **Fault manifestation**: The motor temperature rises abnormally during operation, which may be accompanied by the tripping of the electric control box.
- **Troubleshooting method**: Check whether the power supply voltage is stable and whether the motor heat dissipation is good; eliminate overload or short circuit, and detect whether the wiring part has aging problems.
- **Preventive measures**: Check the motor cooling system regularly and keep the electric control box clean; select motors and electrical components with higher protection levels.
###### 6.3 Abnormal vibration and increased noise
- **Fault manifestation**: Obvious vibration and noise occur during equipment operation, which may affect the overall stability of the system.
- **Troubleshooting method**: Check whether the pump body is installed firmly and whether there are loose parts; check whether there is an abnormal gap between the impeller and the pump chamber.
- **Preventive measures**: Ensure that the installation is firm and check the mechanical fasteners regularly; use vibration reduction devices in areas with severe vibration.
###### 6.4 Pump body leakage
- **Fault manifestation**: Water marks appear on the joints or sealing parts, which may cause electrical short circuits or equipment damage.
- **Troubleshooting method**: Check the seals, welding parts and pipe connections; replace the seals or perform local welding repairs when necessary.
- **Preventive measures**: Use high-quality sealing materials and perform pressure tests in time after installation to ensure that there is no risk of leakage.
####### 7. Maintenance and energy-saving management of sewage pumps
Good maintenance can significantly extend the service life of sewage pumps and ensure the efficient operation of the system. The following is a detailed maintenance and energy-saving management strategy:
####### 7.1 Regular maintenance plan
- **Daily inspection**: Operators should check the operating status of the pump station every day, observe abnormal temperature, vibration and sound of the pump body, and record operating data.
- **Regular cleaning**: Clean the water inlet filter, the inside of the pump body and the pipeline every month to prevent long-term accumulation of sediments leading to blockage and wear.
- **Technical inspection**: Conduct a comprehensive inspection once a quarter, including key components such as motors, electronic control systems, and seals, and replace aging parts in advance if necessary.
####### 7.2 Energy-saving and consumption-reducing measures
- **Variable frequency speed regulation**: Use a frequency converter to control the operation of the sewage pump, and automatically adjust the speed according to the real-time drainage demand, which not only meets the drainage requirements, but also greatly reduces energy consumption.

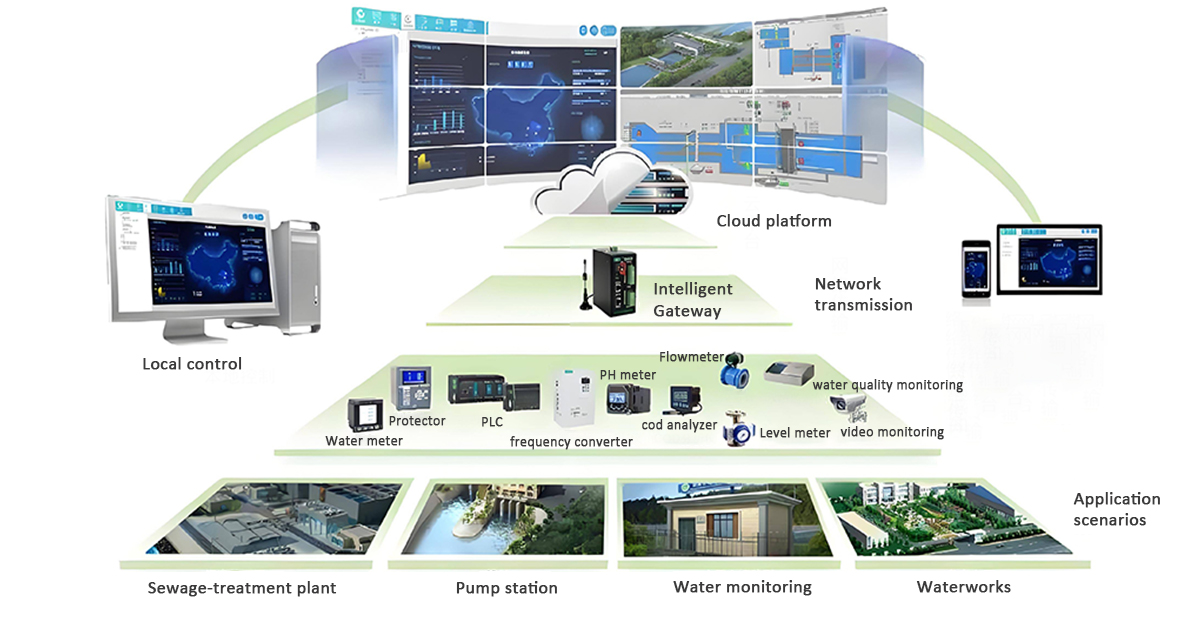

- **Intelligent monitoring**: Install an intelligent monitoring system to collect and analyze equipment operation data in real time, realize fault warning and maintenance reminders, and optimize system operation parameters.
- **Regular calibration**: For equipment performance degradation issues, regular system calibration and debugging are carried out to ensure that the equipment always operates under optimal conditions.
####### 7.3 Environmental protection and safety management
- **Anti-corrosion measures**: For highly corrosive industrial wastewater, anti-corrosion materials and protective coatings are selected to reduce the risk of equipment damage caused by chemical media erosion.
- **Safety protection**: Equipped with necessary safety protection devices, such as overload protection, temperature monitoring and anti-leakage design, to ensure the safety of personnel and equipment.
- **Training and emergency plan**: Regular technical training is provided for operators, and a complete emergency plan is established to respond and handle failures quickly and minimize losses.
######## 8. Latest technology trends and future prospects
With the continuous advancement of science and technology, the sewage pump field is also constantly innovating. The following are several current and future technology trends worth paying attention to:
######## 8.1 Intelligence and Internet of Things Applications
- **Real-time monitoring**: Use Internet of Things technology to achieve real-time monitoring and remote management of sewage pumps and the entire drainage system, thereby improving the intelligence level of the system.
- **Big data analysis**: Through data collection and cloud storage, big data analysis of equipment operation data is carried out to timely discover potential problems and optimize maintenance cycles and energy use.
######## 8.2 Energy-saving and environmentally friendly design
- **Green manufacturing**: Use energy-saving materials and environmentally friendly processes to reduce carbon emissions during manufacturing and operation of equipment and achieve green manufacturing goals.
- **Renewable energy drive**: Combine renewable energy technologies such as solar energy and wind energy to power sewage pumps, achieve energy diversification and system self-sufficiency.
######## 8.3 Material and structural innovation
- **High wear-resistant materials**: Continuously develop new wear-resistant and corrosion-resistant materials to extend the service life of equipment while reducing maintenance costs.
- **Modular design**: Promote modular and standardized design of equipment to facilitate on-site installation, maintenance and upgrading, and improve the flexibility and compatibility of the overall system.
######## 8.4 Customized Solutions
- **Customer demand orientation**: Provide Customized Sewage Treatment Solutions according to the special needs of different industries and customers, which can be tailored from equipment selection to system integration to improve customer satisfaction.
- **System integration optimization**: In complex occasions such as large industrial parks and municipal sewage treatment, through system integration and optimized design, efficient collaboration between subsystems can be achieved.
As a key equipment in environmental protection and industrial drainage, the performance of sewage pumps directly affects the efficiency and environmental safety of sewage discharge. Through the detailed introduction of this article, we have comprehensively analyzed the working principle, main types, application fields, selection, installation, maintenance and other key links of sewage pumps. At the same time, combined with the latest technology trends, we explored intelligent, energy-saving and environmentally friendly and customized solutions, providing systematic reference and guidance for our customers.
Choosing a suitable sewage pump not only helps to achieve efficient wastewater treatment and discharge, but also reduces operating costs and maintenance risks. For users in various fields such as municipal, industrial, construction and agriculture, understanding the basic structure and working mechanism of sewage pumps and mastering scientific installation and maintenance methods will significantly improve the overall operating efficiency and safety of the system.
In the future, with the continuous development of intelligent monitoring, Internet of Things and new material technologies, sewage pumps will achieve higher automation and energy-saving effects, and contribute more to global environmental protection and sustainable development. For users who are concerned about environmental protection and efficient drainage systems, choosing products with forward-looking technology and perfect after-sales service will become an important guarantee for coping with increasingly severe drainage and environmental protection challenges.
As a key environmental protection equipment, the technological progress and application promotion of sewage pumps are constantly promoting the improvement of urban and industrial wastewater treatment levels. Whether it is selection, installation and commissioning, or daily maintenance and troubleshooting, scientific and reasonable management and technical application are the basis for realizing efficient and energy-saving drainage systems. I hope this article can provide valuable reference materials for users, help you make wise decisions when selecting and using sewage pumps, and jointly promote the development and progress of environmental protection.
