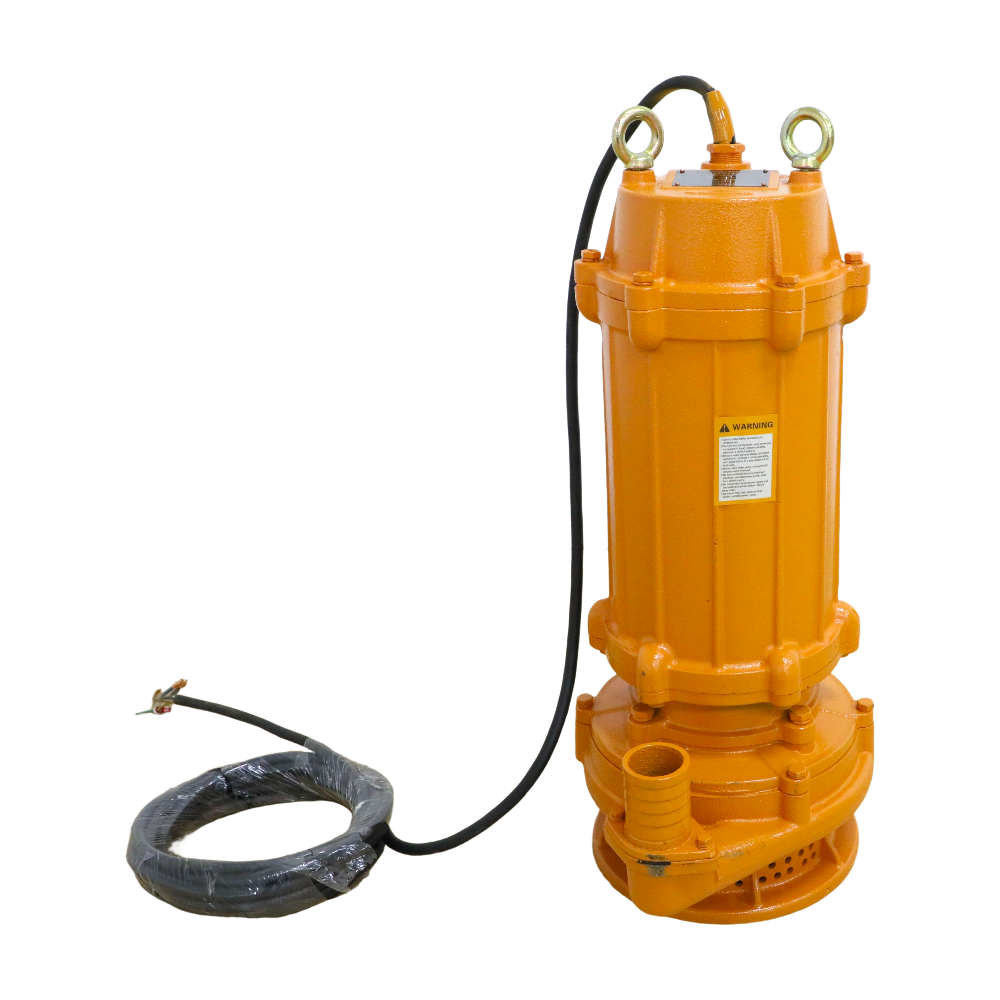

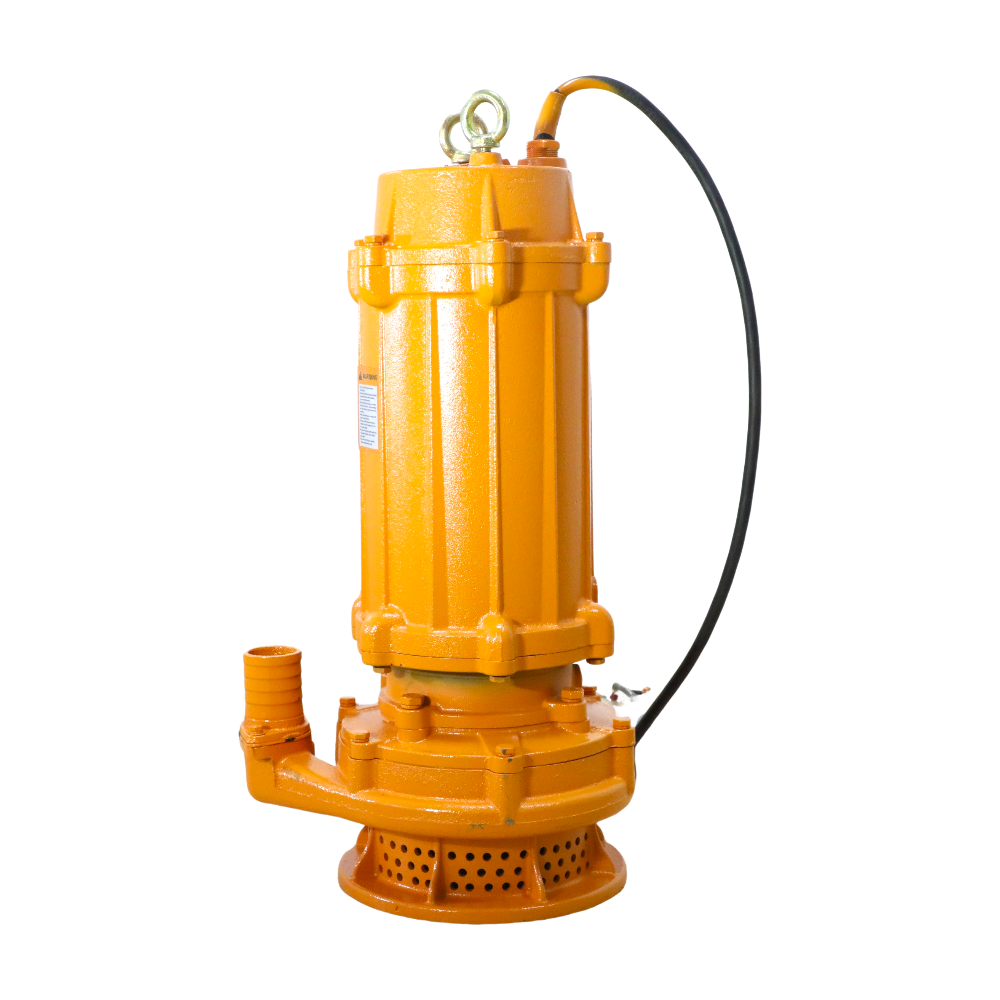

The WQX series sewage and sewage discharge pump is a submersible pump specially designed for treating wastewater and sewage containing solid particles or fiber impurities. It is widely used in municipal engineering, industrial wastewater treatment, construction site drainage, and agricultural irrigation and drainage fields.
Product Features:
Large channel design:
The impeller adopts a unique flow channel structure, which can effectively pass through larger particles and fiber materials, preventing blockage and entanglement.
Efficient hydraulic performance:
The pump body and impeller adopt optimized design, with high operating efficiency, stable hydraulic performance, and significant energy-saving effect.
Submersible motor:
The motor part is integrated with the pump body and can work directly underwater without complex installation, saving space.
Double sealing:
Adopting dual protection of mechanical seal and auxiliary seal to prevent water from entering the motor chamber and ensure long-term reliable operation of the motor.
Corrosion resistant materials:
According to the usage environment, cast iron, stainless steel or other corrosion-resistant materials can be selected for manufacturing, suitable for media such as sewage and seawater.
Automatic control optional:
Optional float switch and automatic control cabinet can be equipped to achieve automatic start stop, improve work efficiency and safety.
Applicable Medium:
Wastewater or sewage containing solid particles with a diameter ≤ 1/2 of the pump diameter.
Domestic and industrial wastewater containing impurities such as fibers, feces, paper scraps, sludge, etc.
Neutral or weakly corrosive liquid with a pH range of 5-9.
Technical Parameters:
Flow range: 10-1500 m ³/h
Head range: 5-50m
Power range: 0.75-250 kW
Channel diameter: capable of passing solid particles with a maximum diameter of 30-120 mm
Power frequency: 50Hz (optional 60Hz)
Voltage level: Three phase 380V (other voltages can be customized)
Application Scenarios:
Municipal sewage discharge: transportation of urban sewage and rainwater.
Industrial wastewater: wastewater discharge from industries such as chemical, papermaking, and pharmaceuticals.
Building Drainage: Construction site foundation pit drainage and mud treatment.
Agricultural irrigation: drainage of farmland or pumping of water sources.
Sewage treatment: Improvement of sewage discharge from various sewage treatment stations.
Selection Suggestion:
When choosing a WQX sewage pump, please determine the appropriate model based on the following parameters:
Flow rate and head: Choose the appropriate pump type according to the requirements of the usage scenario.
Characteristics of the conveying medium: whether it contains corrosive substances, solid particle size, etc.
Usage environment: diving depth, power conditions, and operating frequency.
If you need a product catalog or quotation for a specific model, please let us know your specific requirements!
